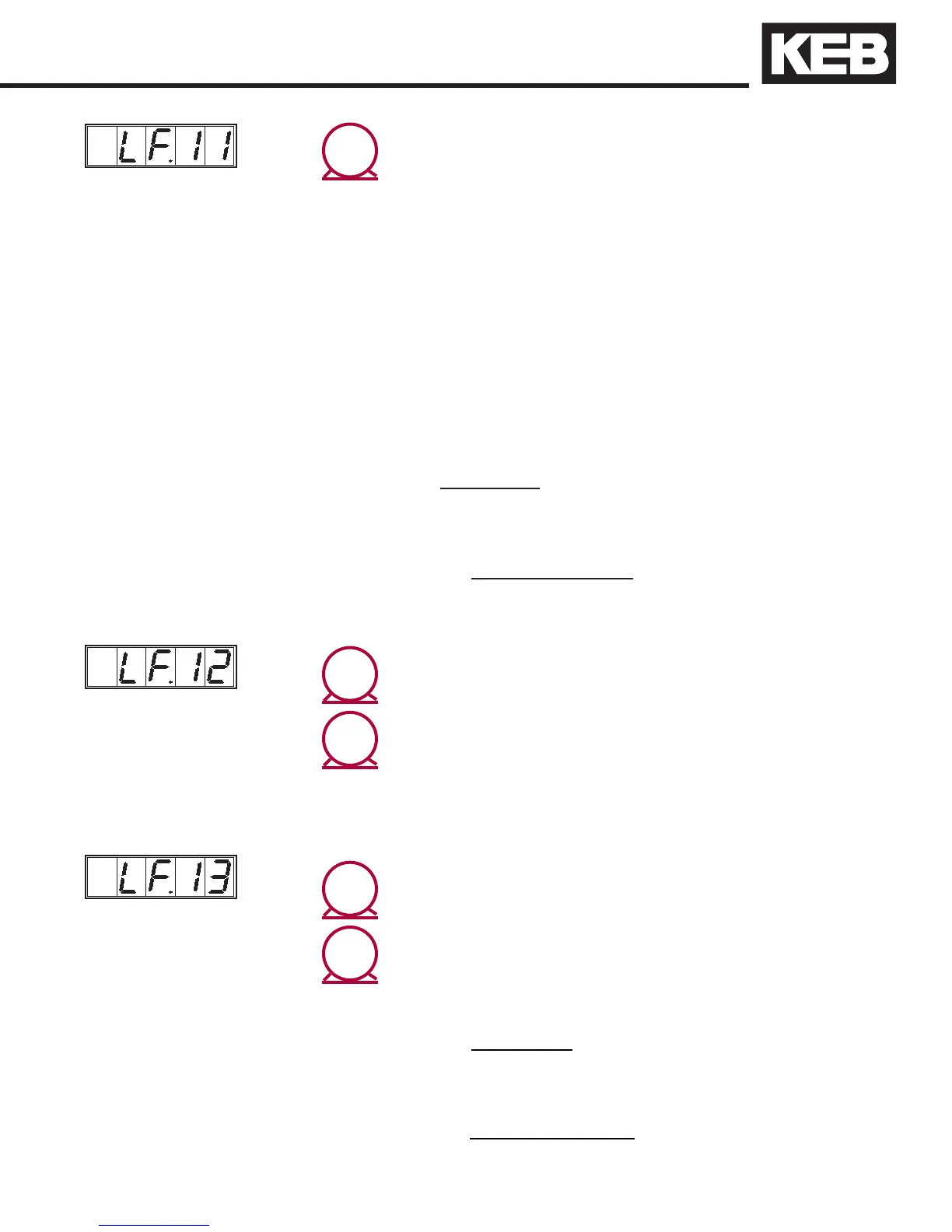

Enter the exact rated frequency of the motor.
Unit: hertz
Value range: 4.0...100.0 Hz
Default setting : 60.0 Hz
Adjustment value: in accordance with the motor name plate
LF.11 =
LF.13 x 120
motor poles
OR
LF.13 =
LF.11 x motor poles
120
Rated motor frequency
Enter the motor nameplate rated current (FLA).
Unit: ampere
Value range: 1.0...1.1 x Inverter rated current
Default setting: 8.0 A
Adjustment value: in accordance with the motor name
plate
Rated motor current
Unit: rpm
Value range : 10.0....6000.0 or 500.0
(based on con guration mode)
Default setting: 1165.0 or 150.0
(based on con guration mode)
Adjustment value: in accordance with the motor name
plate
For permanent magnet synchronous motors there is no slip.
Therefore the value entered must be exactly the synchronous
rotational speed based on the rated frequency as noted below.
With this there is no further adjustment necessary. Do not round
this value off to the nearest whole number. With this there is no
further adjustment necessary.
LF.11 =
LF.13 x 120
motor poles
OR
LF.13 =
LF.11 x motor poles
120
Rated motor speed
PM
Parameter Description - Motor Data
PM
IM
PM
IM
