Model 6220/6221 Reference Manual Wave Functions (6221 Only) 7-11
Return to Section 7 topics

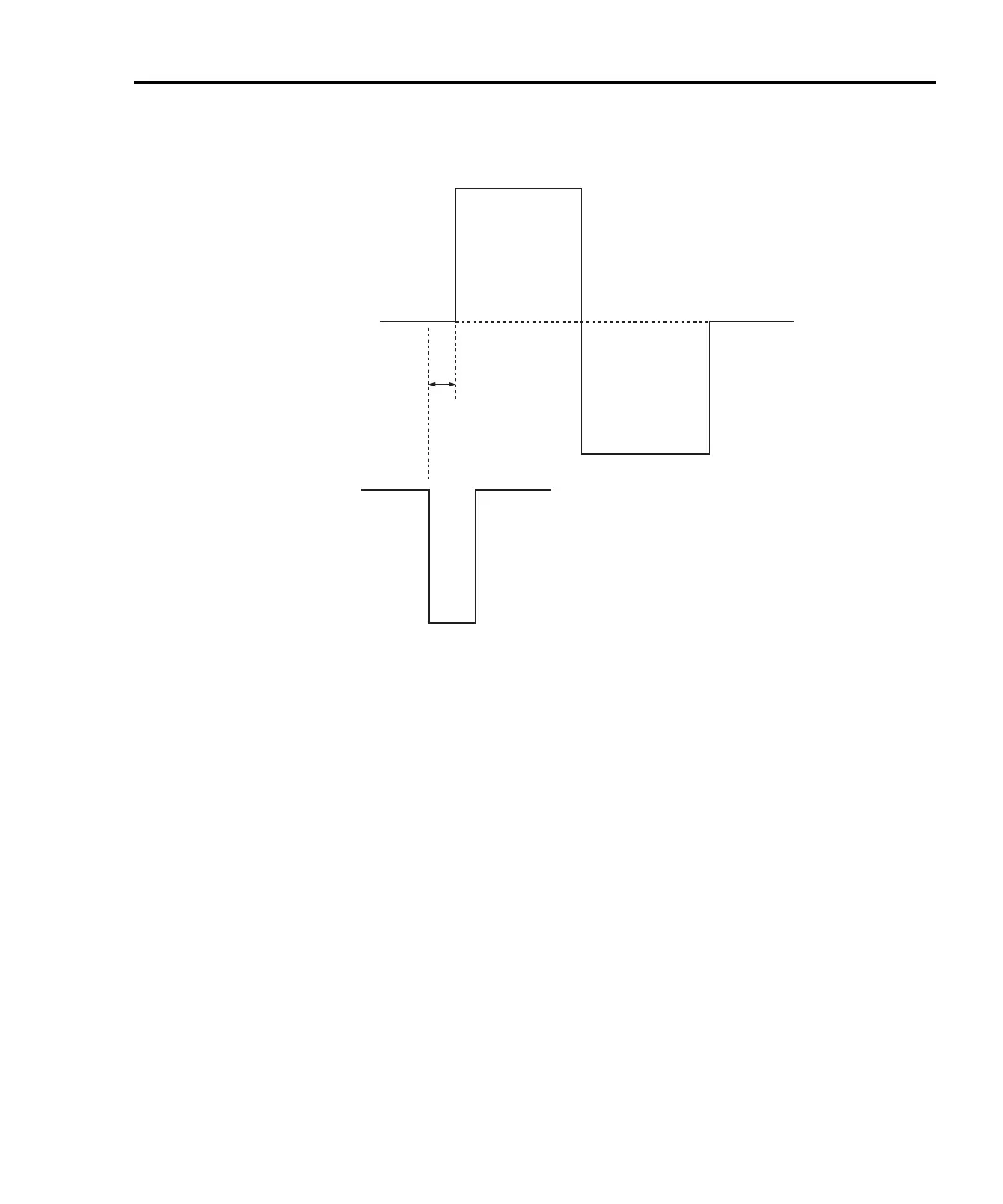

Figure 7-4
Waveform triggering
Front panel external trigger control
External trigger selections are included with the waveform configuration menu
shown in Table 7-2 on page 7-15. An example of how to set up this mode is
detailed in “Using the external trigger mode,” on page 7-20.
Remote external trigger control
Remote commands to control the external trigger mode are listed in Ta bl e 7 -4 o n
page 7-27, and a program example is shown in “Programming an externally trig-
gered waveform,” on page 7-26.
Output
Waveform
High
Low
Trigger Link
Input Pulse
(See Section 8
for Details)
Waveform Starts
Within 1μs of
Trigger Pulse
Leading Edge
