Keithley 7001 User Manual

Front Panel Operation
4-52
Asynchronous Trigger Link example #1
In a typical test system, you may want to close a chan-
nel and then measure the DUT connected to that chan-
nel with a meter. Such a test system is shown in Figure
4-19 which uses a Model 7011 multiplexer card to
switch 10 DUTs to a meter that is equipped with Trig-
ger Link.
The Trigger Link connections for this test system are
shown in Figure 4-20. Trigger Link of the Model 7001 is
connected to Trigger Link of the meter. Notice that only
one Trigger Link cable is needed.

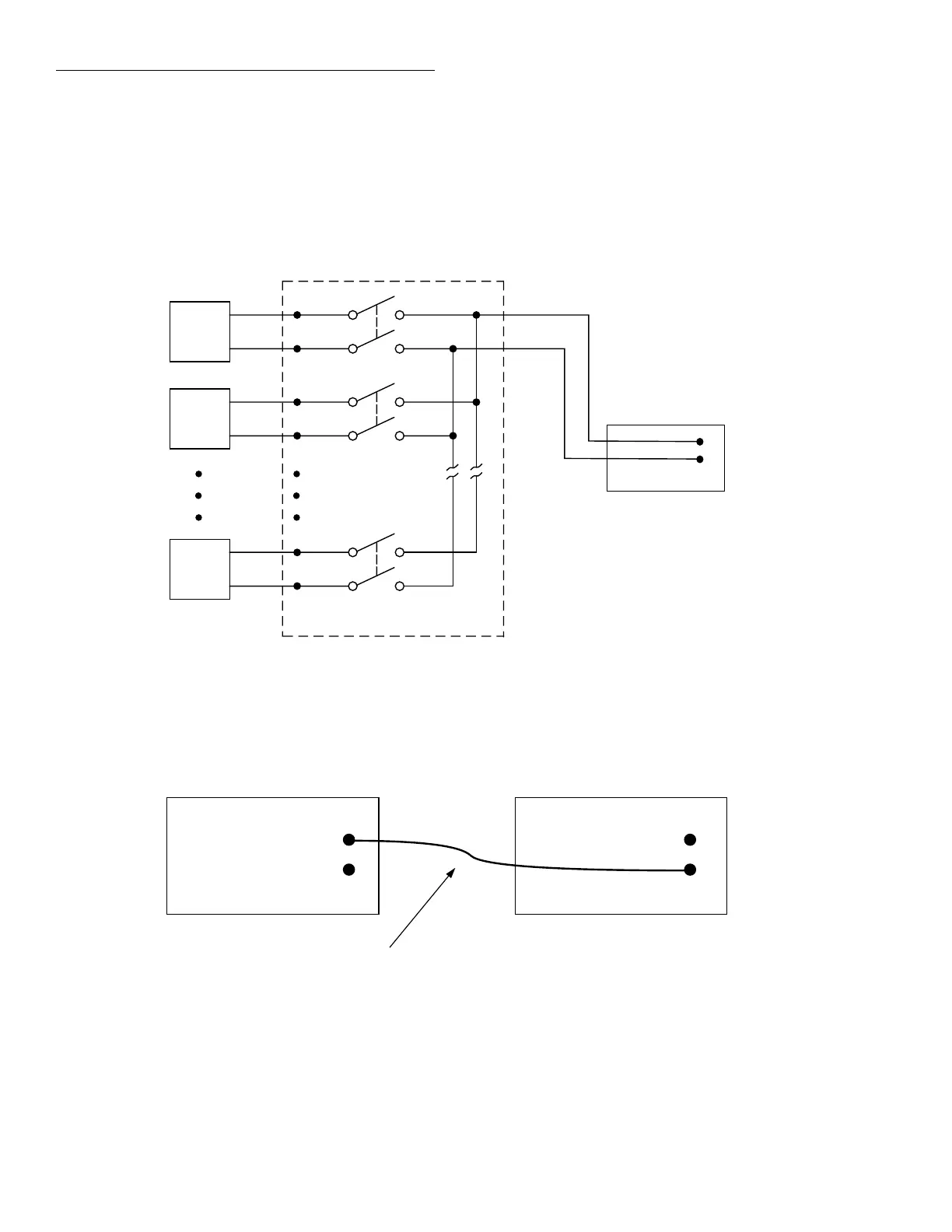

Figure 4-19
DUT test system
DMM
1
DUT
#1
2
DUT
#2
10
DUT
#10
OUTPUT
Card 1
7011 MUX Card
HI
LO
Figure 4-20
Trigger Link connections (asynchronous example #1)
Trigger
Link
7001 Switch System
Trigger
Link Cable
(8501)
Meter
IN
OUT
Trigger
Link
IN
OUT
