Kohler KDW 502 User Manual

- 100 -
KD 702_1003_1404 Workshop Manual_cod. ED0053029340_1° ed_ rev. 00
203
204
205
11
AETSA
SAPRISA
NICSA
DUCATI
~ G 6,35 0,8
R R 9,50 1,2
+ B 9,50 1,2
LE L 4,75 0,5
o o C 6,25 0,8

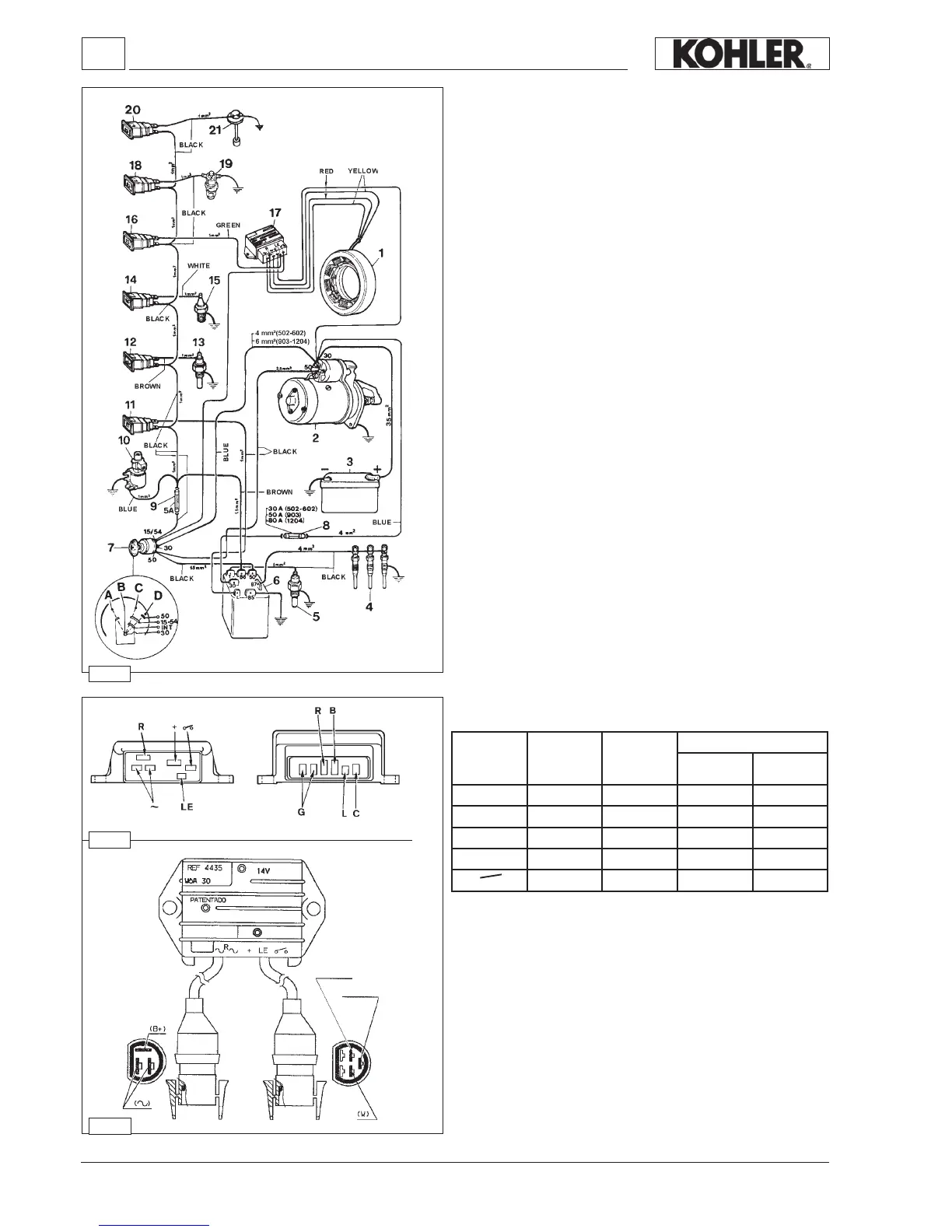

Electric starting layout (12V) with ywheel alternator
1 Alternator
2 Starter Motor
3 Battery
4 Glow Plugs
5 Coolant temperature thermistor
6 Glow Plug Controller / Timer
7 Key Switch
8 System Fuse, 50A for KDW 702-1003,
80A for KDW 1404
9 Fuse (Accessory)- 5A
10 Fuel Solenoid Valve
11 Glow Plug Indicator Lamp
12 Coolant High Temperature Lamp
13 Coolant High Temperature Switch
14 Oil Pressure (Low) Lamp
15 Oil Pressure Switch
16 Alternator Charging Lamp
17 Voltage regulator
18 Air Filter High Restriction Indicator Lamp
19 Air Filter Restriction Switch
20 Low Fuel Level Lamp
21
Low Fuel Level Switch
A Accessory Position
B Off Position
C On Position
D Starting Position
Note: Battery 3 not supplied by KOHLER, for battery
characteristics see page 96.
Yellow
Red
Red
Green
Brown
Conncetion dimensions
Width Thickness
Voltage regulator connections
Electric System
Light
Key
Cable
colour
