- 85 -
KD 702_1003_1404 Workshop Manual_cod. ED0053029340_1° ed_
169
10
168

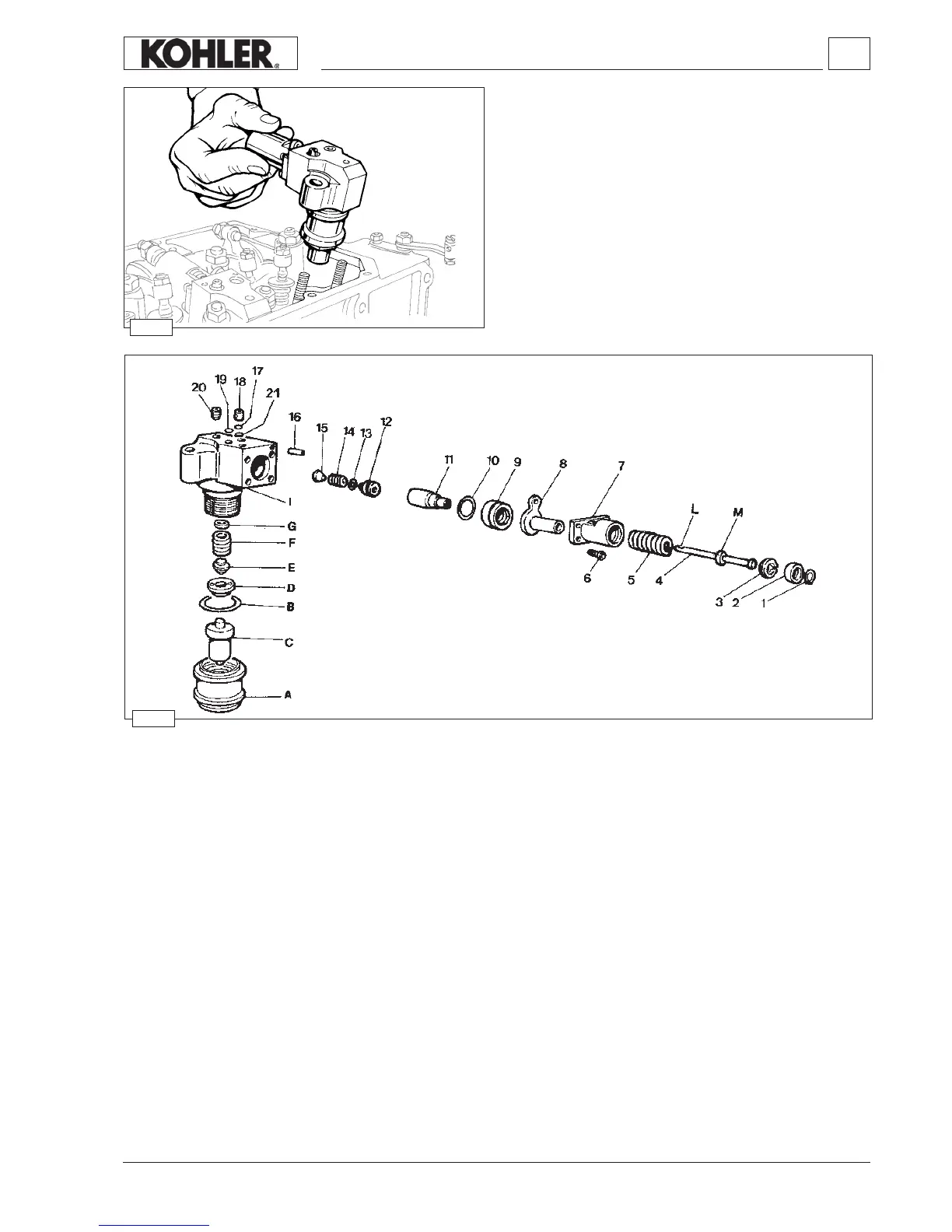

Pump/injector unit
Designed by KOHLER, the pump/injector is exclusive to KDW
702-1003-1404 series engines.
The injection system includes two, three, four identical pumps/
injector units, each one of which feeds a cylinder.
Note: On pumps/injector units of recent construction (for serial
numbers and references see the table on page 88) the
pump has been modied (see g. 174).
Following to this modication and others like the
elimination of cap 20 of (g. 169) the method of checking
the static injection advance has changed as well, (g.
187-188) as that of injector setting (g. 178).
Pump/injector unit, components
1
Seeger ring A Ring nut
2 Tappet B O-ring
3 Stop plate C Nozzle
4 Plunger D Spacer
5 Spring E Pressure rod
6 Screw F Spring
7 Bearing G Spacer
8 Lever I Casing
9 Ring nut L Control spiral
10 Plunger guide O-ring M Plunger guide
11 Cylinder
12 Delivery valve
13 Gasket
14 Spring
15 Filler
16 Pin When remounting the injector tighten ring nut A at 70 Nm
17 O-ring
18 Non-return valve
19 O-ring
20 Cap screw (old type)
21 Metal gasket (new type)
Fuel system
