- 46 -
KD 702_1003_1404 Workshop Manual_cod. ED0053029340_1° ed_ rev. 00
6
33
31
28
29
32
30

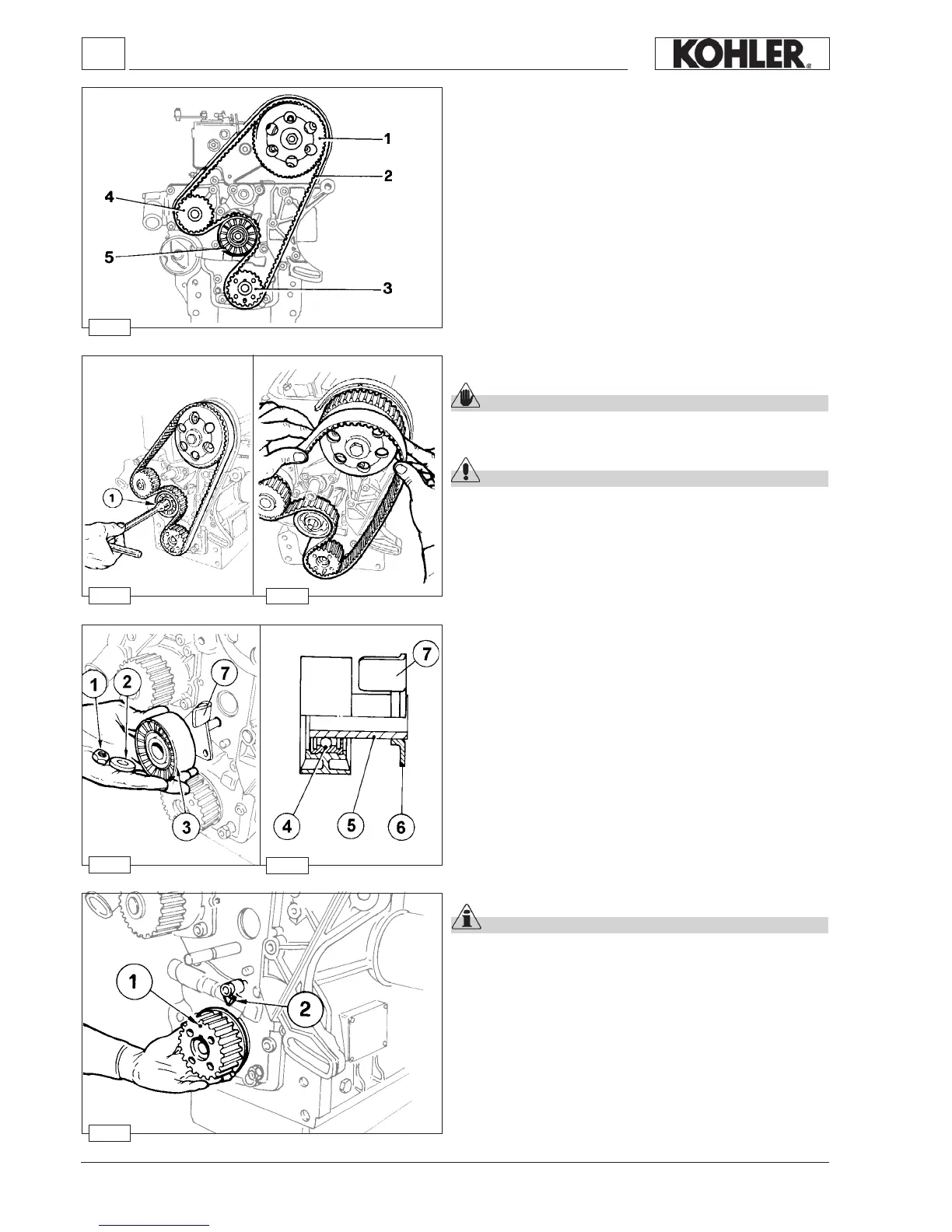

Tightening pulley
Components:
1 Nut
2 Washer
3 Pulley
4 Bearing
5 Shaft/Support
6 Mounting plate
7 Tensioning lever
Timing belt removal
Caution – Warning
When you remove the distributor belt replace it even if its
prescribed operation time has not expired yet.
Danger – Attention
Always check that the positive pole of the battery is
insulated.
Remove the belt tensioner 1.
Remove the timing belt off the timing pulley.
For assembly see g. 36.
Timing belt / Timing pulley arrangement
Components:
1 Camshaft pulley
2 Timing belt
3 Crankshaft pulley
4 Coolant pump pulley
5 Belt tensioner pulley
Crankshaft timing pulley
Important
When reassembling, make sure that the key remains inserted in
its place.
Note: Reference mark 1 on the crankshaft timing pulley and
reference mark 2 on the oil pump housing are timing
marks. When aligned, No. 1 piston (ywheel side) is at
TDC.
Disassembly / Reassembly
