- 107 -
KD 702_1003_1404 Workshop Manual_cod. ED0053029340_1° ed_
12
225
E.G.R. calibration

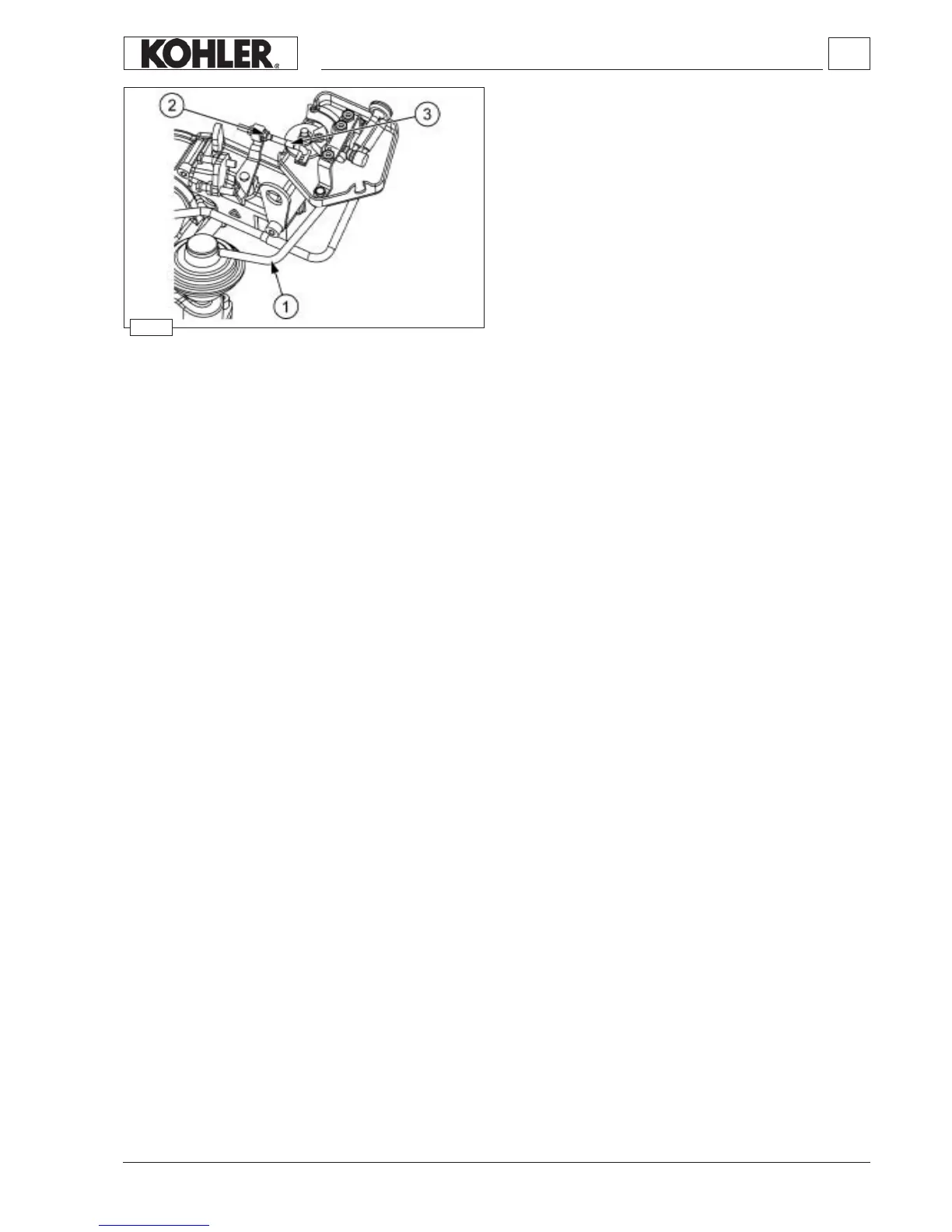

Mount a T-branch on vacuum valve - E.G.R. valve connection
pipe 1, and connect it to a vacuum pressure gauge with 1 bar
bottom scale so as to be able to read the degree of vacuum
within the pipe.
Note: It is also possible to use a mercury column, 1 metre long,
since the maximum suction pressure exerted by the
vacuum pump is 720 mmHg.
Adjust the position of the accelerator lever via the regulator
block, so that the internal adjusting nut 2, is about 5 mm from
the end of the thread.
Accelerate the engine up to 3.600 rpm (with valve closed: this
means that the value showed on the vacuum pressure gauge or
on the mercury column should be 0.
In case it is different from zero, adjust the regulator block nuts
to move it, in relation to the rod 3, in the direction that goes from
the ywheel to the timing.
With the brake at a braking curve N=constant, “load” the engine
slowing it down to 2.800 rpm.
Acting on the accelerator look for the E.G.R. valve closing point
(pressure of the vacuum pressure gauge or mercury gauge
equal to zero).
Note:
Pay attention to determine the precise closing point: by
slightly accelerating the engine the vacuum value in the
E.G.R. operation pipe should immediately increase.
Measure the engine consumption in order to calculate the mm3/
stroke value.
If the calculated value is less than 18.8 mm
3
/stroke, adjust the
adjusting nut making it closer to the end of the rod 3 to “increase
the calibration”.
When the required value of 18.8 mm
3
/stroke has been reached
(and a power of around 7 KW) tighten the adjusting nuts.
