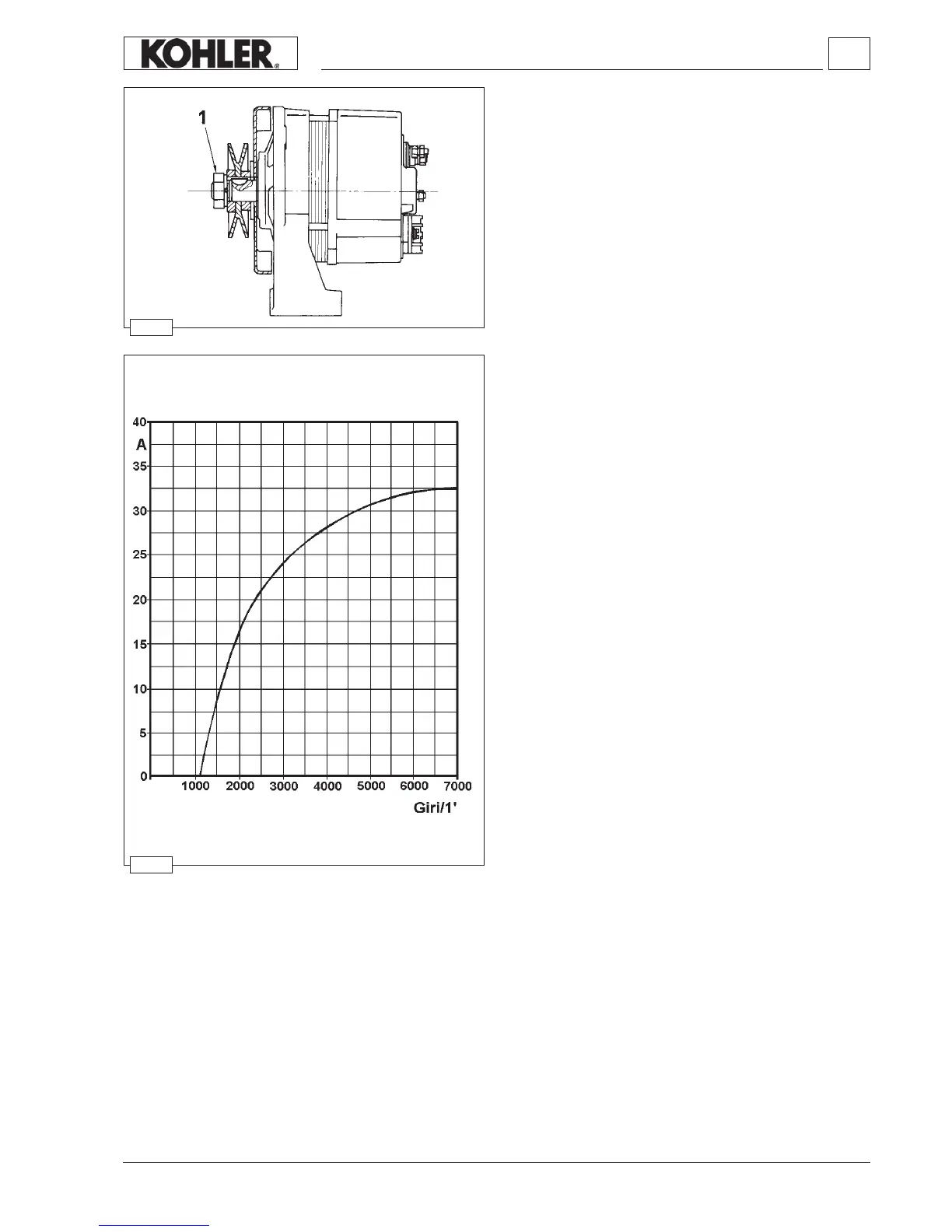

Alternator, 14V 33A
Nominal voltage ...................14V
Nominal current output
........ 33A
Maximum Rpm
....................12.000 giri/1'
Maximum peak Rpm............13.000 giri/1'
Voltage regulator AER 1503
Rotation (viewed at puley end): Clockwise
Tighten nut 1 at a torque of 35÷45 Nm.
Alternator, 14V 33A - Performance Curve
The curve was obtained at room temperature of +25°C with 13 V
battery voltage.
Note:
The rpm shown on the table are referred to the alternator.
Engine rpm/alternator rpm ratio, with driving pulley
diameter:
85 mm = 1:1,23
105 mm = 1:1,52
112 mm = 1:1,62.
Electric System
