- 96 -
KD 702_1003_1404 Workshop Manual_cod. ED0053029340_1° ed_ rev. 00
196
11

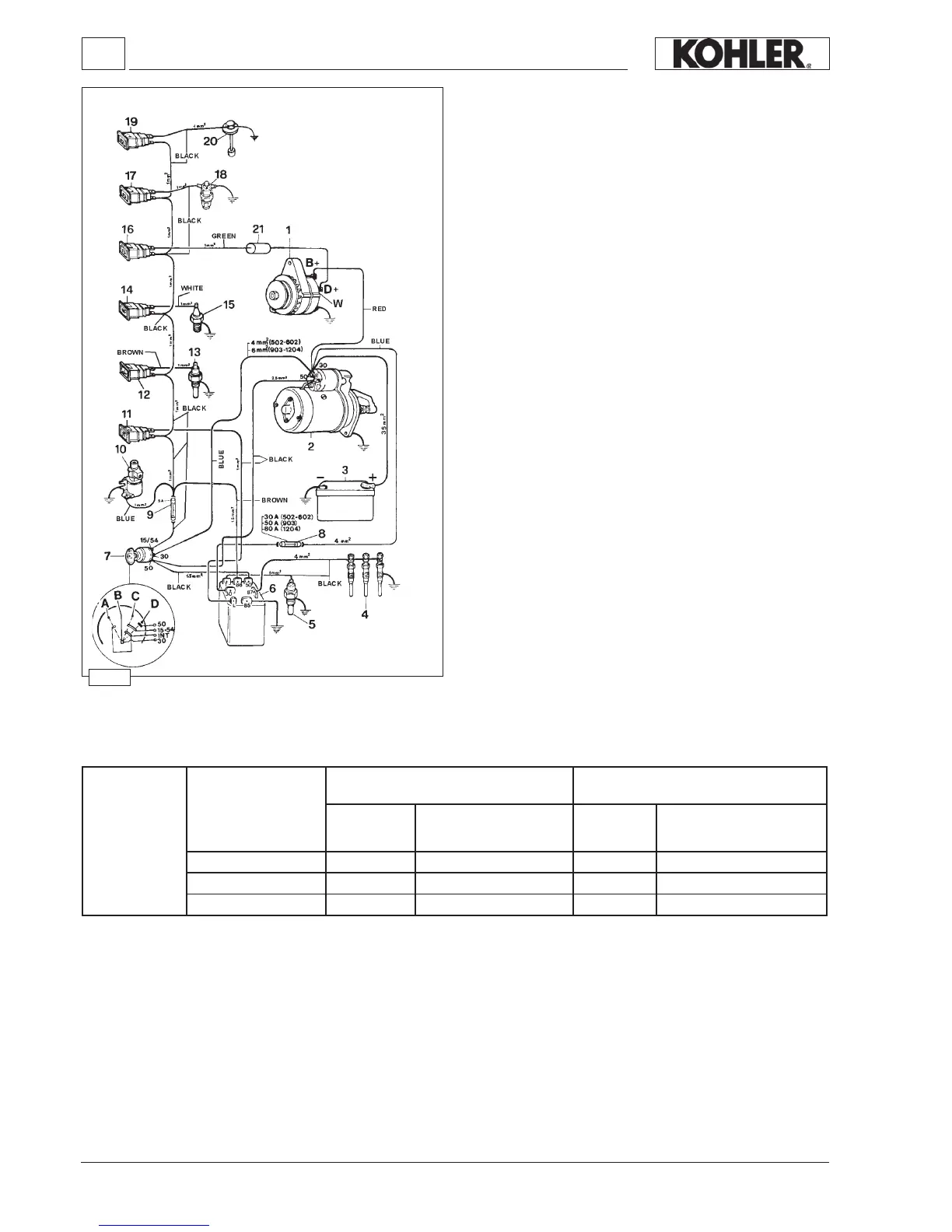

Electric starting layout (12V) with alternator 14V 33A
1 Alternator
2 Starter Motor
3 Battery
4 Glow Plugs
5 Coolant temperature thermistor
6 Glow Plug Controller / Timer
7 Key Switch
8 System Fuse, 30A for KDW 702; 50 A for KDW 1003; 80 A
for KDW 1404.
9 Fuse (Accessory)- 5A
10 Fuel Solenoid Valve
11 Glow Plug Indicator Lamp
12 Coolant High Temperature Lamp
13 Coolant High Temperature Switch
14 Oil Pressure (Low) Lamp
15 Oil Pressure Switch
16 Alternator Charging Lamp
17 Air Filter High Restriction Indicator Lamp
18 Air Filter Restriction Switch
19 Low Fuel Level Lamp
20 Low Fuel Level Switch
21 Diode
A
Accessory Position
B Off Position
C On Position
D Starting Position
Note: Battery 3 not supplied by KOHLER.
For assembly we recommend a battery with the following
characteristics, see table below.
Engine type
Starter motor class
(epicyclic type) Kw
Capacity
K20 - Ah
Rapid discharge intensity
(DIN Standards at -18°
C) A
Capacity
K20 - Ah
Rapid discharge intensity
(DIN Standards at -18° C) A
Normal starting conditions
Heavy-duty starting conditions (max
allowed)
Electric System
702 1,6 66 300 88 330
1003 1,6 66 310 88 330
1404 1,6 66 300 88 330
