- 75 -

KD 702_1003_1404 Workshop Manual_cod. ED0053029340_1° ed_

........................................................................................................................................................

145

146

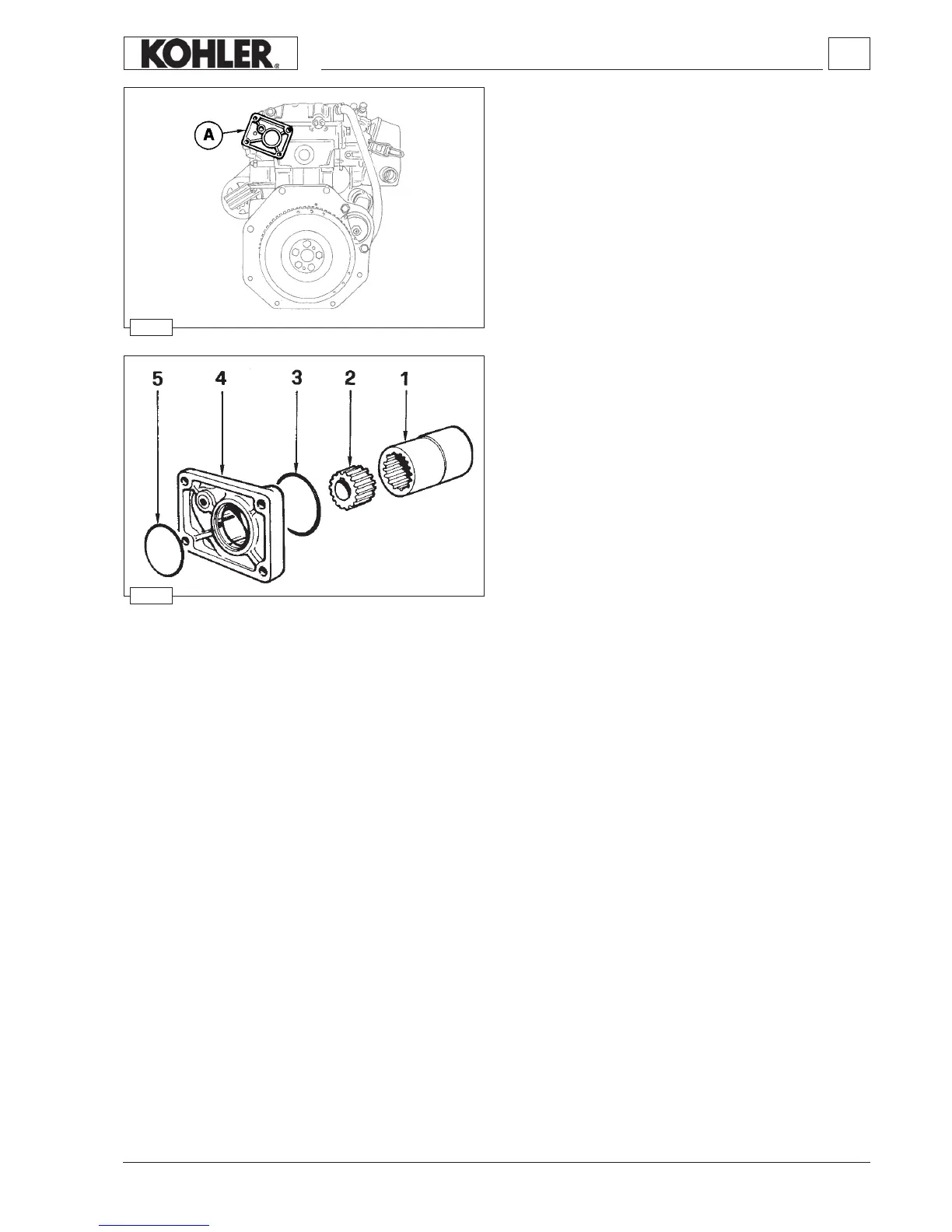

Hydraulic pump drive

A = Third drive

You can mount a 2P hydraulic pump on the third drive with

Bosch anging, or a 1 PD type one.

You can draw 7 KW of power from the third drive corresponding

to a 37 Nm torque at 3600 rpm (engine revolutions).

Drive ratio, engine revs/pump revs = 1:0.5.

Third drive, components

1 Splined sleeve

2 Toothed pinion

3 Seal ring

4 Flange for 1 PD hydraulic pump

5 Seal ring

Note:

Sleeve 1 also includes the fuel pump control cam and

is fastened with the same standard cam screw, with a

tightening torque of 80 Nm + 90°.

Tighten pinion 2 to the hydraulic pump at 45 Nm

Disassembly / Reassembly
