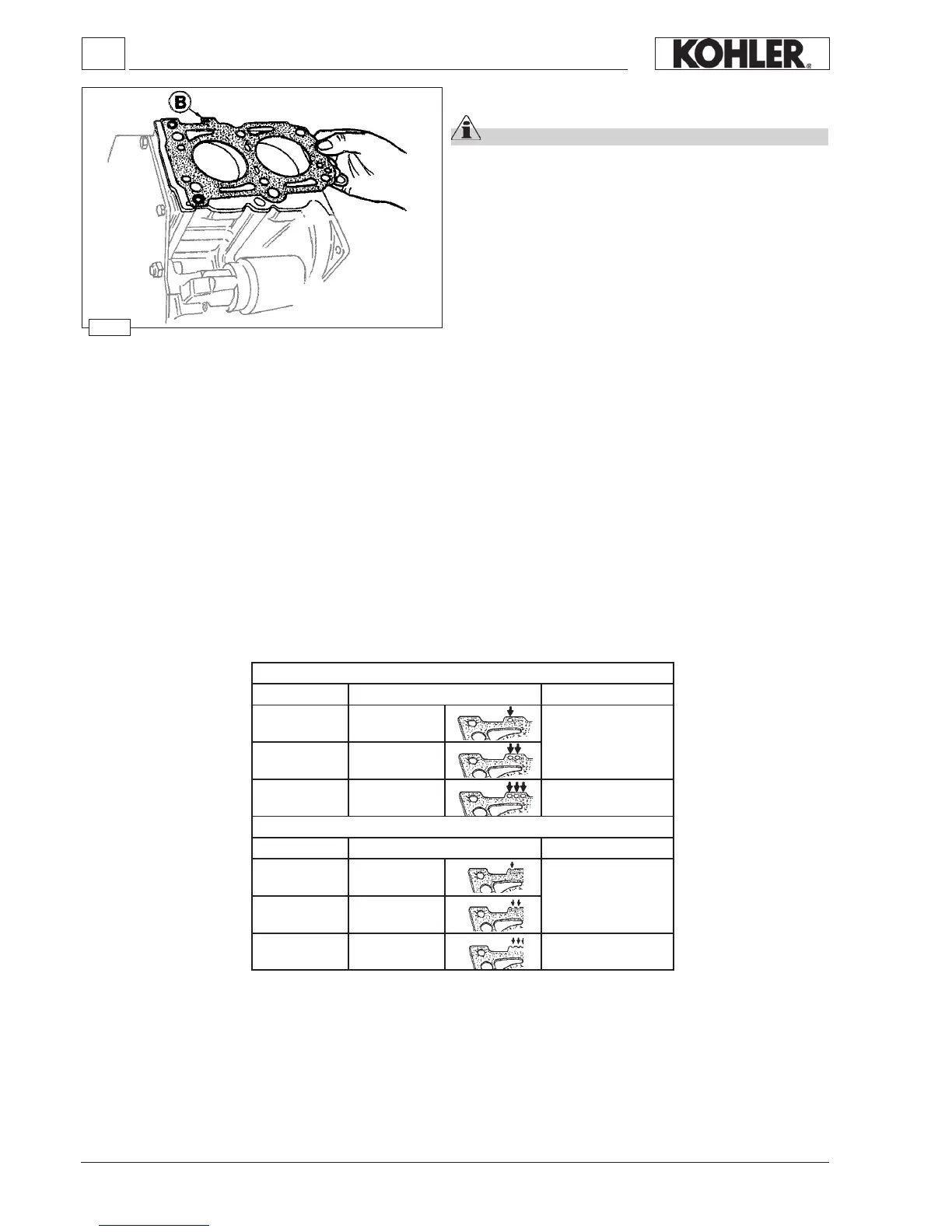

Head gasket
Important
Remove the cylinder head gasket seal from its protective
covering only when you are going to mount it.
The gasket thickness is identied by the number of notches lo-
cated in point B.
Choose the appropriate gasket considering that each A value on
the table corresponds to a gasket with: no hole, one hole, two
holes, or for the 1404 one notch, two notches, three notches.
The A value relates to gure 111.
Each time you dismount the head you must replace the gasket.
Disassembly / Reassembly
N° of holes
N° of notches
Piston clearance
Piston clearance
1 hole
2 holes
3 holes
1 notch
2 notches
3 notches
KDW 702-1003
A(mm)
0,82÷0,91
0,54÷0,63
0,90÷1,01
1,02÷1,10 0,55÷0,63
KDW 1404
A(mm)
0,82÷0,91
0,52÷0,61
0,92÷1,01
1,02÷1,10 0,53÷0,61
