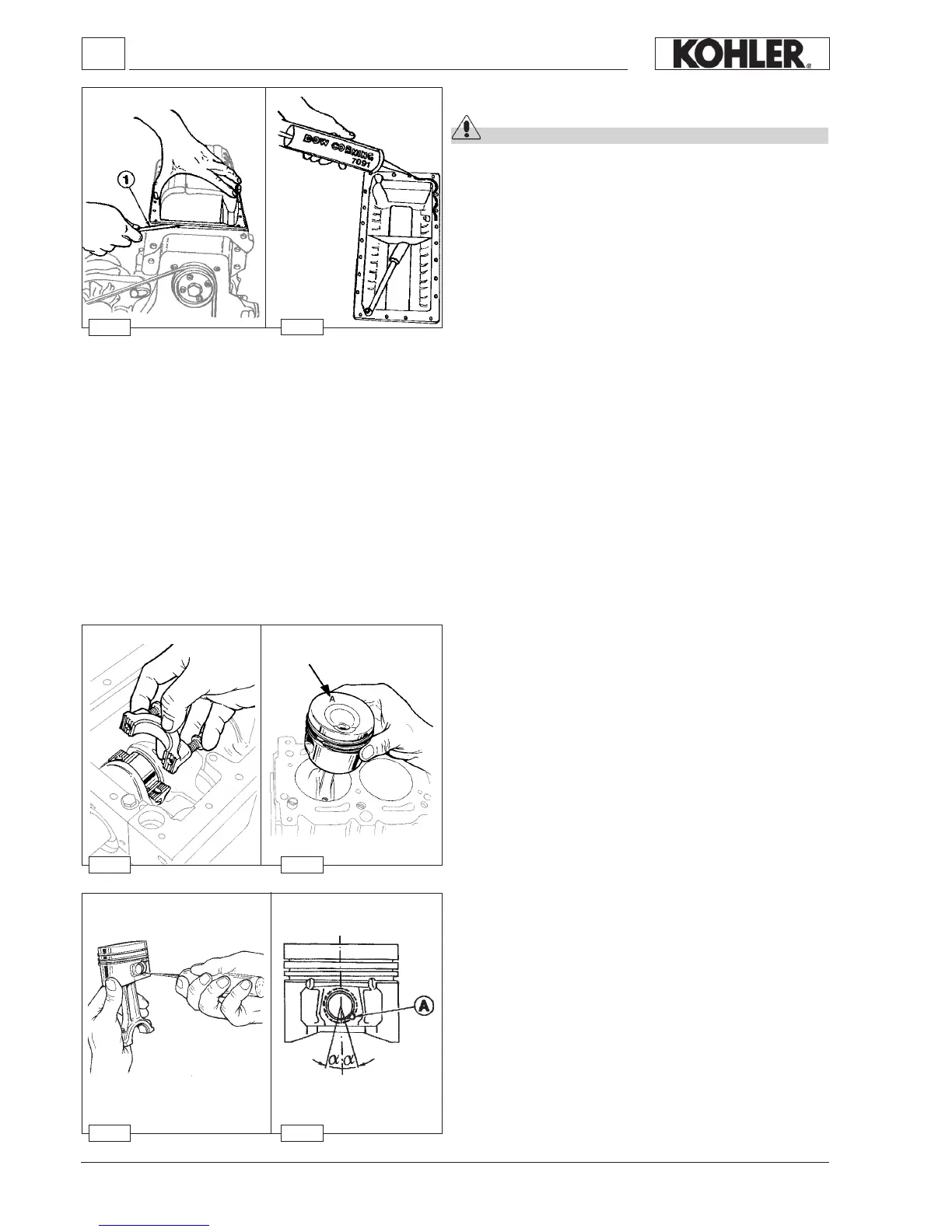

Oil pan, removal
Danger - Attention
- The used engine oil can cause skin-cancer if kept
frequently in contact for prolonged periods.
- If contact with oil cannot be avoided, wash carefully your
hands with water and soap as soon as possible.
- Do not disperse the oil in the ambient, as it has a high
pollution power.
Remove the xing screws.
Insert a spacer 1 in the forward and rear main bearings.
Detach the silicon from the main bearing rubber bulb seals.
When re-mounting apply Silicone " Dow Corning 7091" as
shown in the picture.
Tighten the screws at a torque of 10 Nm.
Before starting the engine make sure that:
1) the oil drain plug is tightened correctly
2) the engine has been relled with the prescribed quantity of oil
(see page 34).
PISTON
Remove the connecting rod big end cap.
Remove the piston-connecting rod assembly.
Note:
The Ricardo type of combustion chamber is used for
KDW 702-1003-1404 engines.
Stop pin rings, dismounting and remounting
Extract the ring inserting a pointed tool in hollow A.
On remounting, insert rings with the points turned downwards
inside the corners (
a = 15°).
Disassembly / Reassembly
