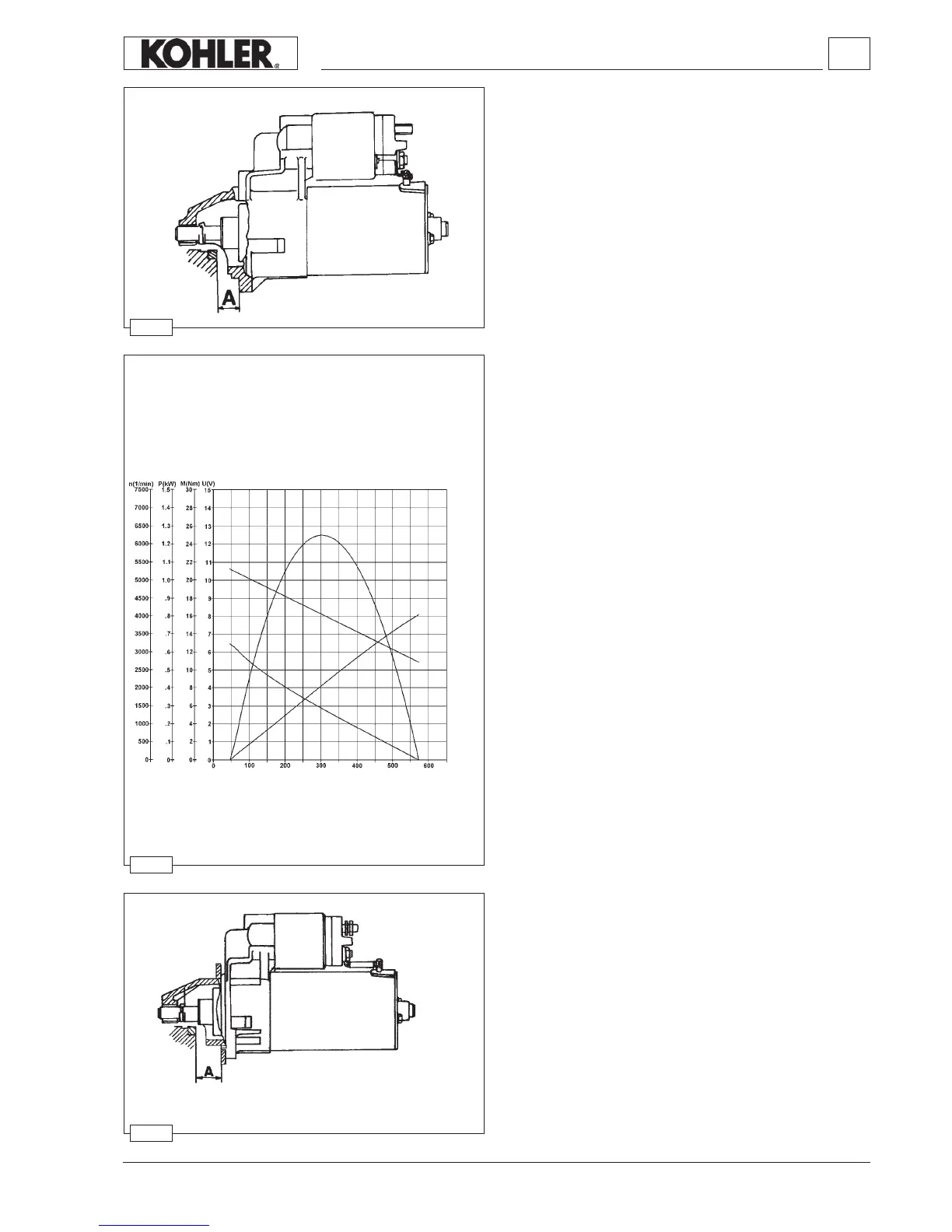

STARTER MOTOR - Bosch DW 12V 1,1 KW
Rotation: Clockwise
A = 17,5÷19,5 mm
(distance from starter mounting ange to ring gear face)
Note: Please refer to your local BOSCH distributor for service
parts, repair criterion and warranty service.
Starter motor, Bosch 12V 1,6 KW
Rotation: Clockwise
A = 29,50÷31,5 mm
(distance from starter mounting ange to ring gear face)
Note: Please refer to your local BOSCH distributor for service
parts, repair criterion and warranty service.
Starter motor, Bosch DW 12V 1,1 KW - Performance Curve
The curve was obtained at room temperature of -20°C with a fully
charged 66Ah battery.
U
= Starter Motor Voltag
n = Armature r/min
I = Absorbed Amperage
P = Starter Output Power (KW)
M = Starter Output Torque (Nm)
Electric System
