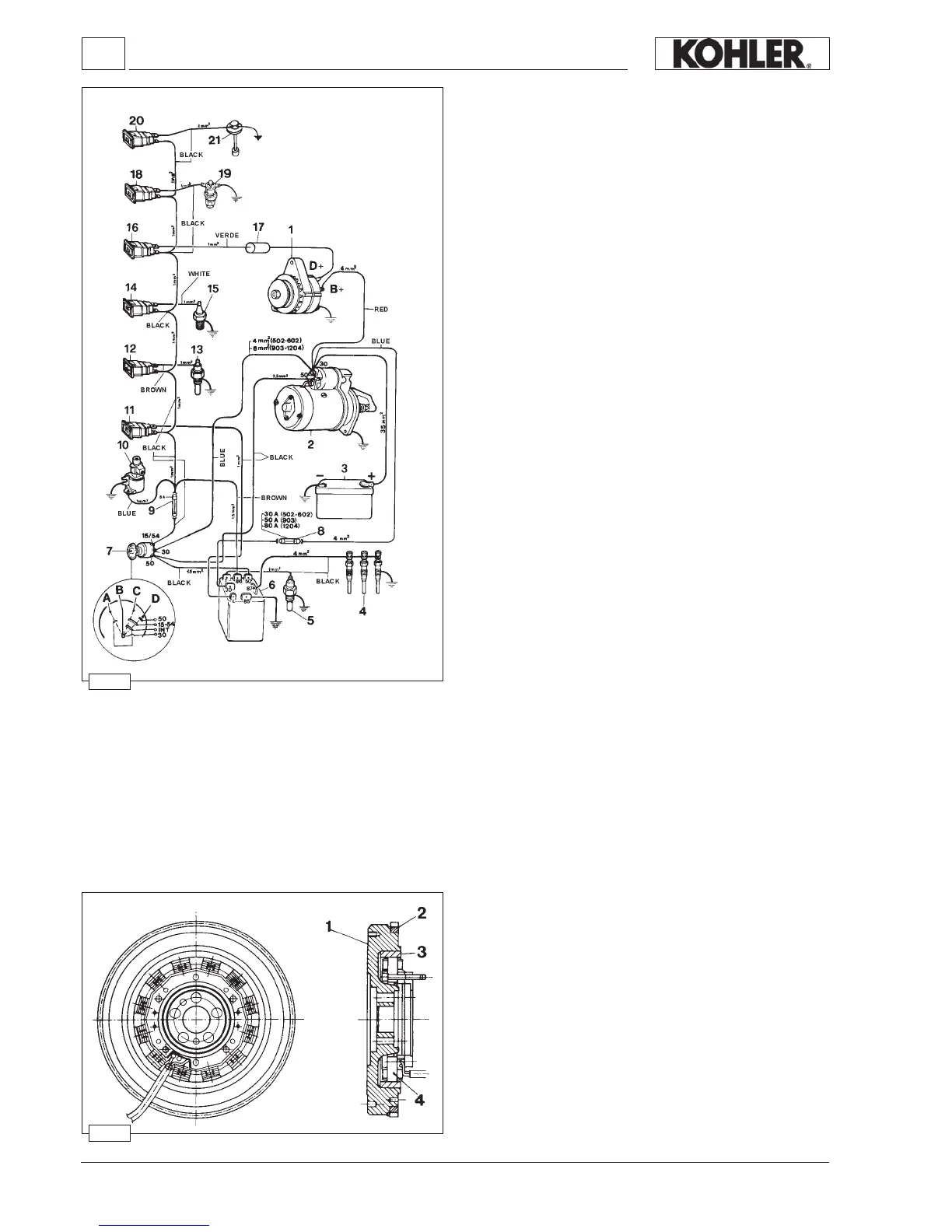

Electric starting layout 12V 33A - 45A - 65A
1 Alternator
2 Starter Motor
3 Battery
4 Glow Plugs
5 Coolant temperature thermistor
6 Glow Plug Controller / Timer
7 Key Switch
8 System Fuse: 30A for KDW 702;
50A for KDW 1003;
80A for KDW 1404.
9 Fuse (Accessory)- 5A
10 Fuel Solenoid Valve
11 Glow Plug Indicator Lamp
12 Coolant High Temperature Lamp
14 Oil Pressure (Low) Lamp
15 Oil Pressure Switch
16 Alternator Charging Lamp
17 Diode
18 Air Filter Restriction Switch
19 Air Filter Restriction Switch
20 Low Fuel Level Lamp
21
Low Fuel Level Switch
A Accessory Position
B Off Position
C On Position
D Starting Position
Note: Battery 3 not supplied by KOHLER, for battery
characteristics see page 96.
Flywheel Alternator
12V 30A with two cables at output
1 Flywheel
2 Ring gear
3 Magnet ring (Rotor)
4 Stator
