- 64 -
KD 702_1003_1404 Workshop Manual_cod. ED0053029340_1° ed_ rev. 00
6
106
104
105
106
A 0,090÷0,125
B 0,050÷0,085
C 0,040÷0,075
A
1° 0,25÷0,45
1,02° 0,25÷0,45
3° 0,25÷0,45
limit value

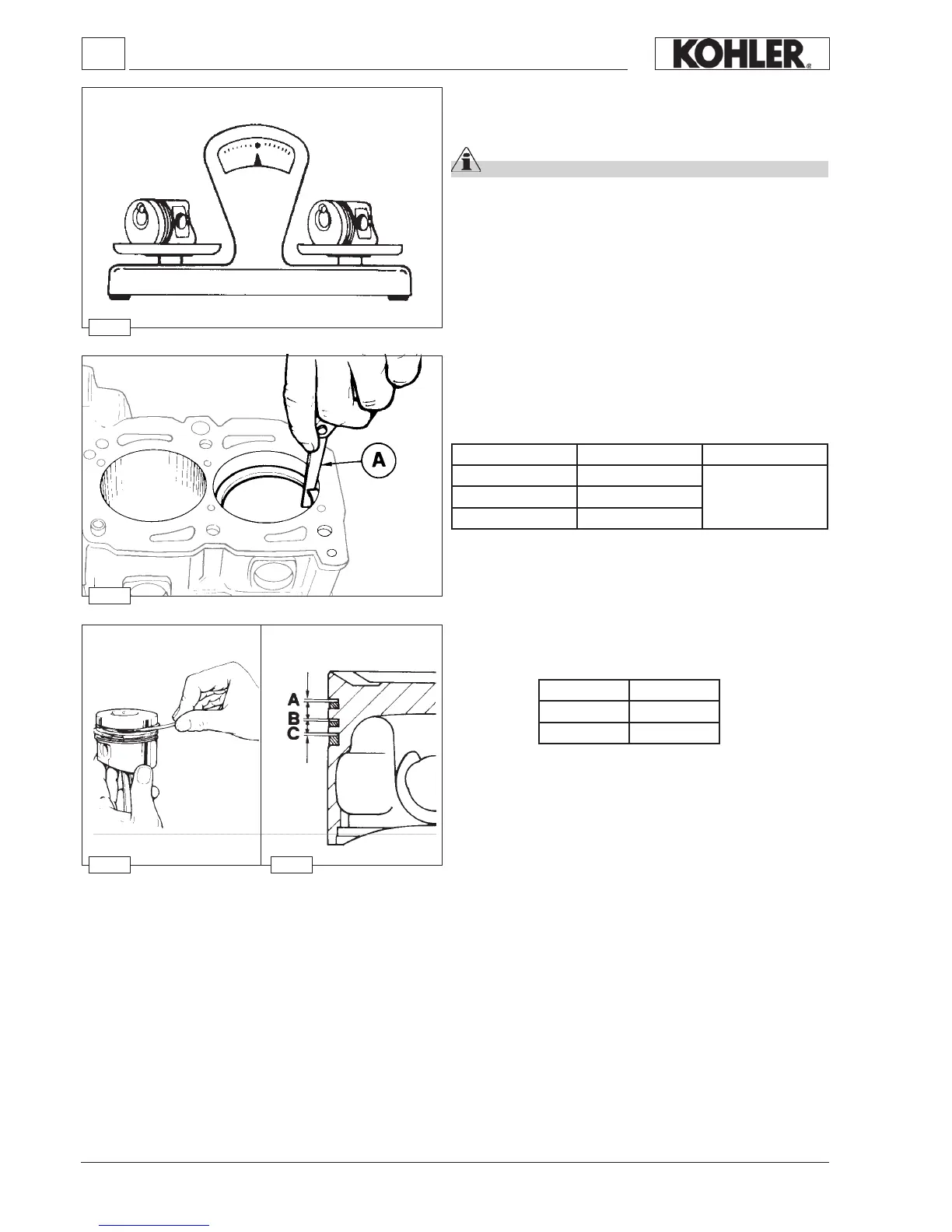

Piston ring
Piston rings - End gaps (mm)
Place piston rings squarely into the unworn part of the lower cylinder
and measure the end gap A.
Piston ring, Clearance between grooves (mm)
Piston, weight
Weigh pistons when replacing them in order to avoid unbalance.
Important
The difference in weight should not exceed 4 g.
Disassembly / Reassembly
