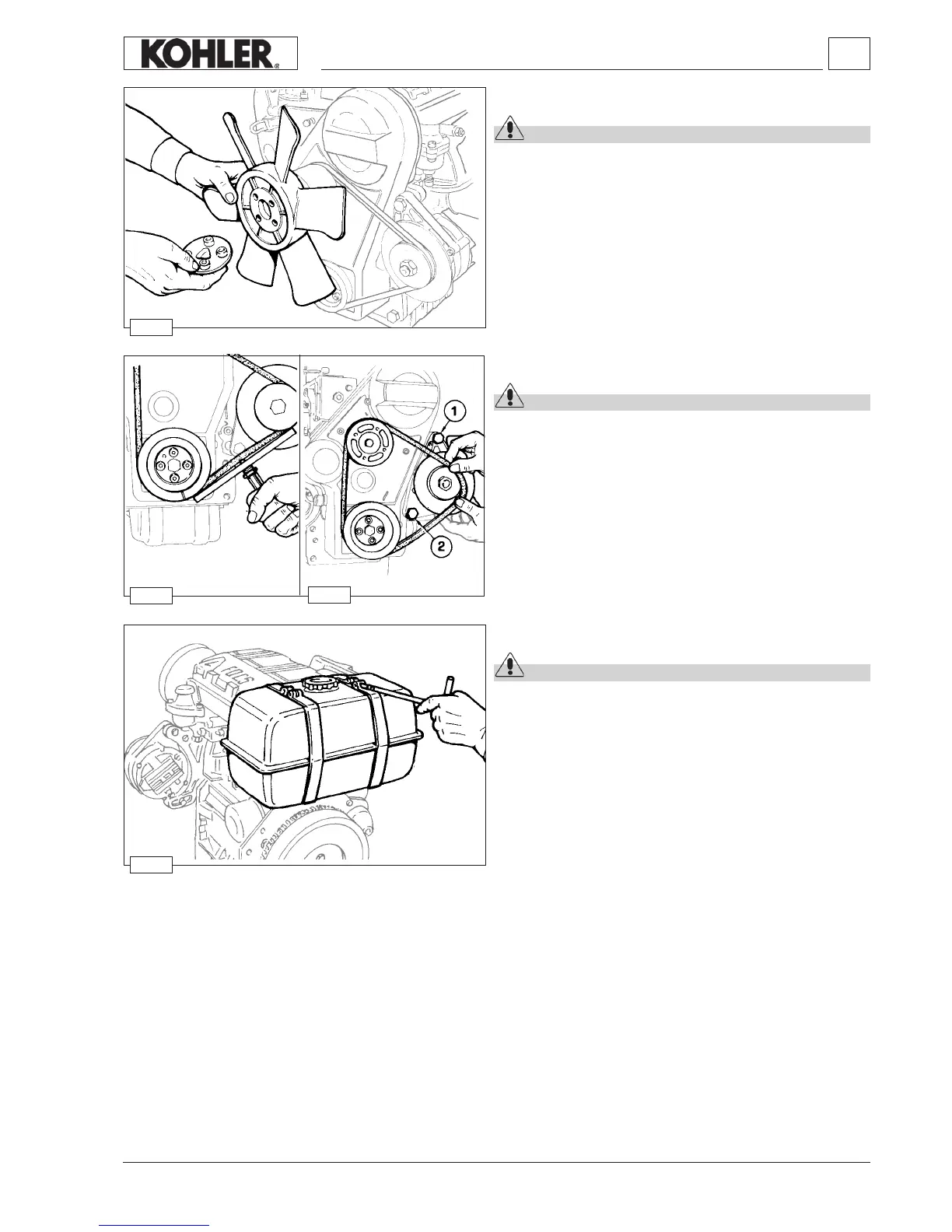

Alternator/Cooling fan belt drive
Danger - Attention
Check the belt tension only with the engine off.
Tension adjustment.
Loosen screws 1 and 2.
Adjust the belt tension so that a 100N force at the midpoint of
the belt center (as shown) results in a 10-15mm deection.
See page 32 for periodic maintenance details.
Cooling fan
Danger - Attention
Carry out the cooling fan disassembly, only after isolating
the positive battery cable to prevent accidental short-
circuiting and, consequently, the activation of the starter
motor.
Carefully clean and check all blades. Replace the fan even if there
is only a single damaged blade.
See pages 20-21 for cooling air ow volume.
Fuel tank (optional)
Danger - Attention
To avoid explosions or re outbreaks, do not smoke or use
naked ames during the operations.
Fuel vapours are highly toxic. Only carry out the operations
outdoors or in a well ventilated place. Keep your face well
away from the plug to prevent harmful vapours from being
inhaled.
Dispose of fuel in the correct way and do not litter as it is
highly polluting.
After disconnecting the fuel pipes unscrew the anchoring
brackets' screws and remove the fuel tank.
Completely empty the tank and check that no impurities are
found inside.
Check that cap breather hole is not clogged.
