- 57 -
KD 702_1003_1404 Workshop Manual_cod. ED0053029340_1° ed_
6
77
75
76
A B A-B A-B
37,035÷37,060 36,975÷37,000 0,035÷0,085 0,170

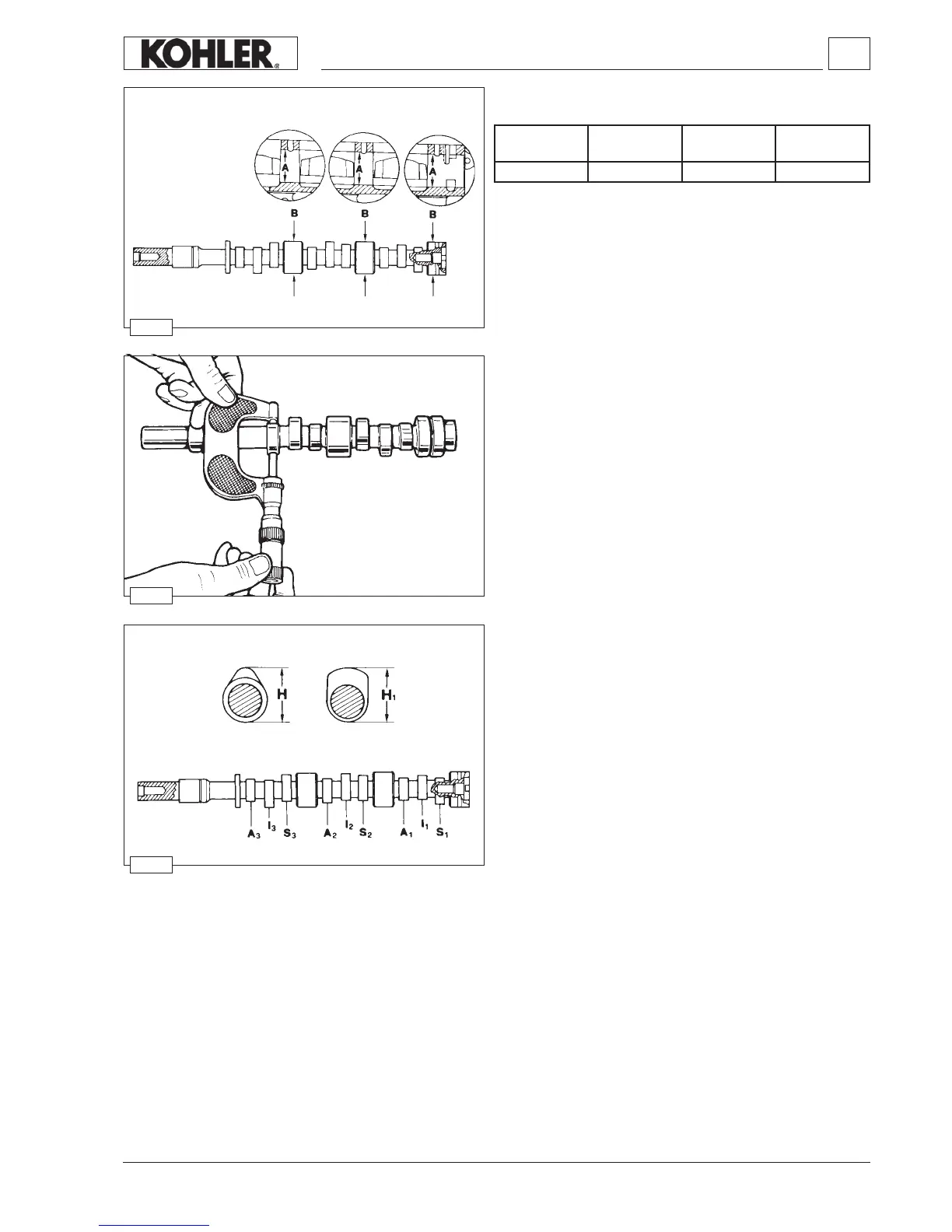

Camshaft journals and housings - Dimensions (mm)
Note:
The camshaft journal and cylinder head camshaft bore
dimensions are identical for all KDW-FOCS series engi-
nes
limit value
Camshaft lobe measurement
Use an outside micrometer gauge.
Intake / Exhaust / Injection camshaft lobe height
All engines in the series have intake exhaust and injection cams
with the same height of H and H1.
If wears on the cams exceeds by 0.1 mm the minimum value
given H and H1, replace the crankshaft.
Disassembly / Reassembly
