INSTRUMENTS AND CONTROLS
103
3.2.5 COVERSWITH LOCK
Use the ignition key to open and close the covers with lock.
For details on the position of the covers with lock, see "3.3.17
LOCKING THE MACHINE".

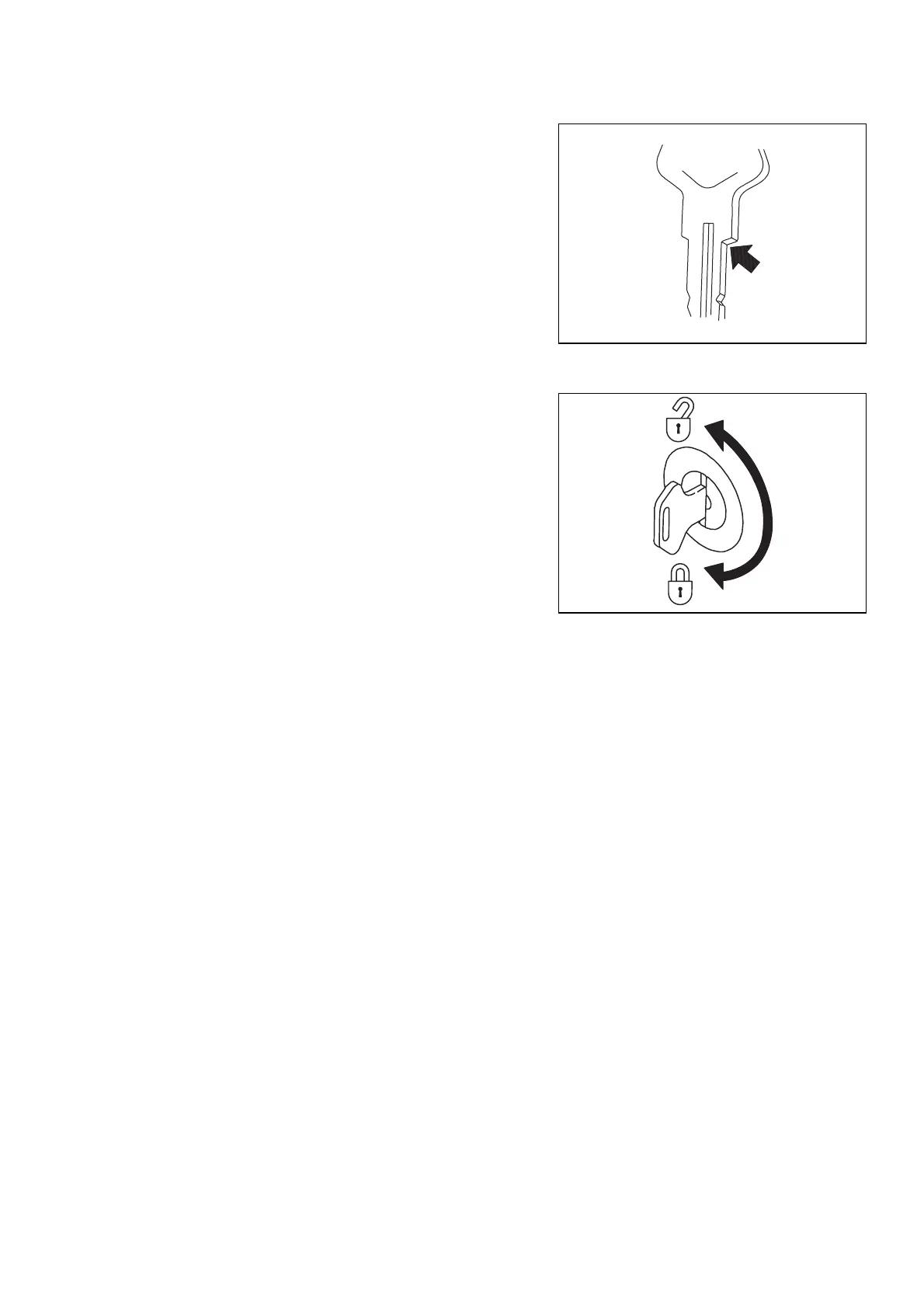

Introduce the key completely (6 mm from the point where the key
narrows), then turn it. If the key is turned when it is inserted only
partially into the lock, it may break.
OPENING AND CLOSING THE COVERS WITH LOCK
Opening
1 - Insert the key into the lock.
2 - Turn the key counterclockwise and open the cover.
Closing
1 - Close the cover and insert the key into the lock.
2 - Turn the key clockwise and extract it.
CAB DOOR LOCK OPENING AND CLOSING
Opening
1 - Insert the key into the lock.
2 - Turn the key anticlockwise and open the cab door.
Closing
1 - Close the cover and insert the key into the lock.
2 - Turn the key clockwise and extract it.
RYA01680
RKA13360
WEAM012405
