INSTRUMENTS AND CONTROLS
83

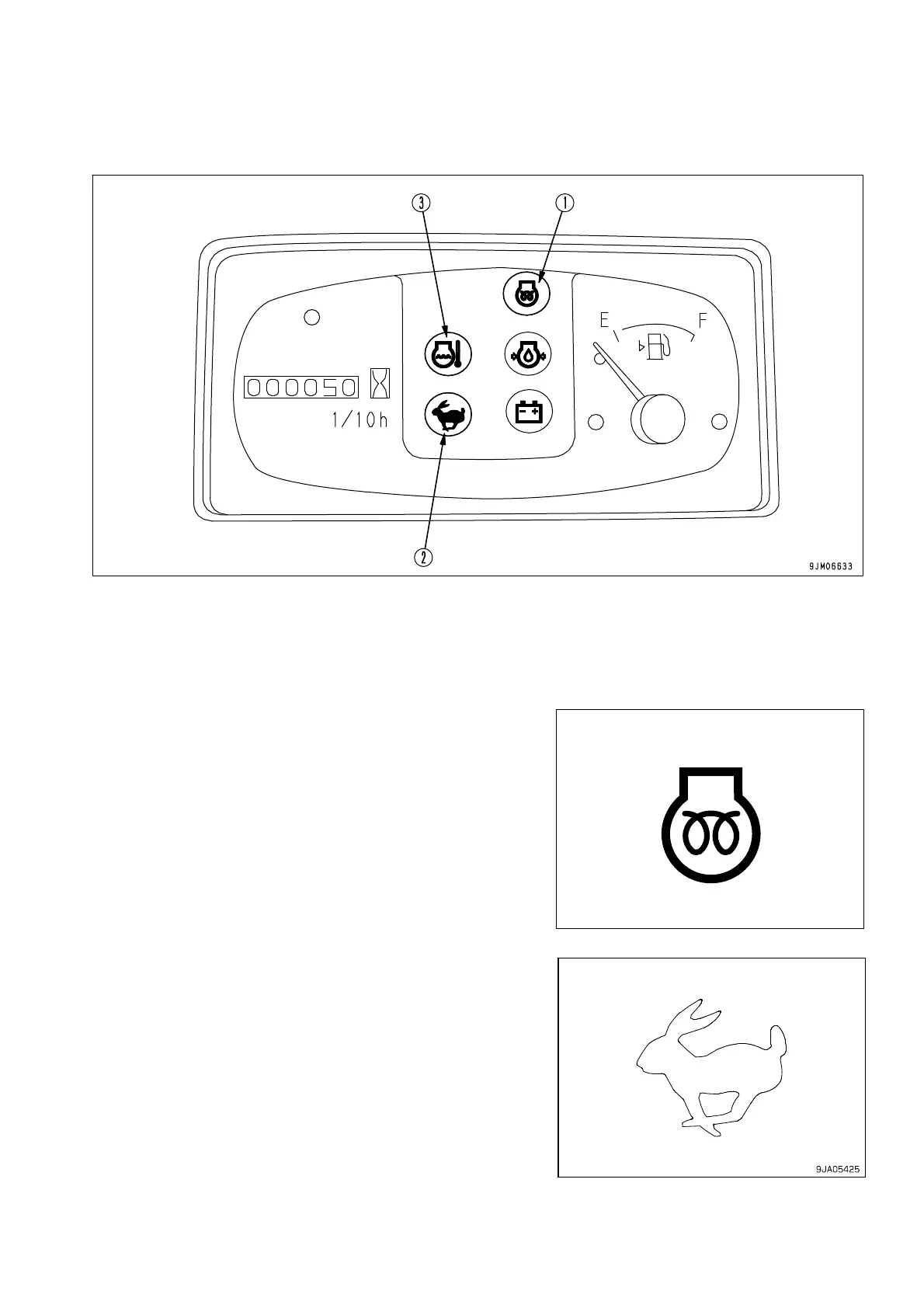

3.2.1.3 WARNING LIGHTS
1. Engine preheating warning light
This warning light comes on when the ignition key is turned to the
preheating position (HEAT) to start the engine at low tempera-
tures. It goes out automatically after approximately 10 seconds,
when the preheating process has been completed.
2. Travel speed increase warning light
This warning light comes on when the travel speed selection
switch is in high speed position (see "3.2.2 pos: 4. Travel speed
selection switch"). When the speed selection switch in low speed
position, the warning light is off.
• When the machine travels at high speed on soft ground or up a
slope and the load increases, the low speed is automatically se-
lected, but the travel speed increase warning light remains on.
(1)
Engine preheating warning light
(2)
(3)
Travel speed increase warning light
Engine coolant temperature warning light
