6.5 PREPARATION FOR EQUIPMENT INSTALLATION (only for
machines with proportional controls)

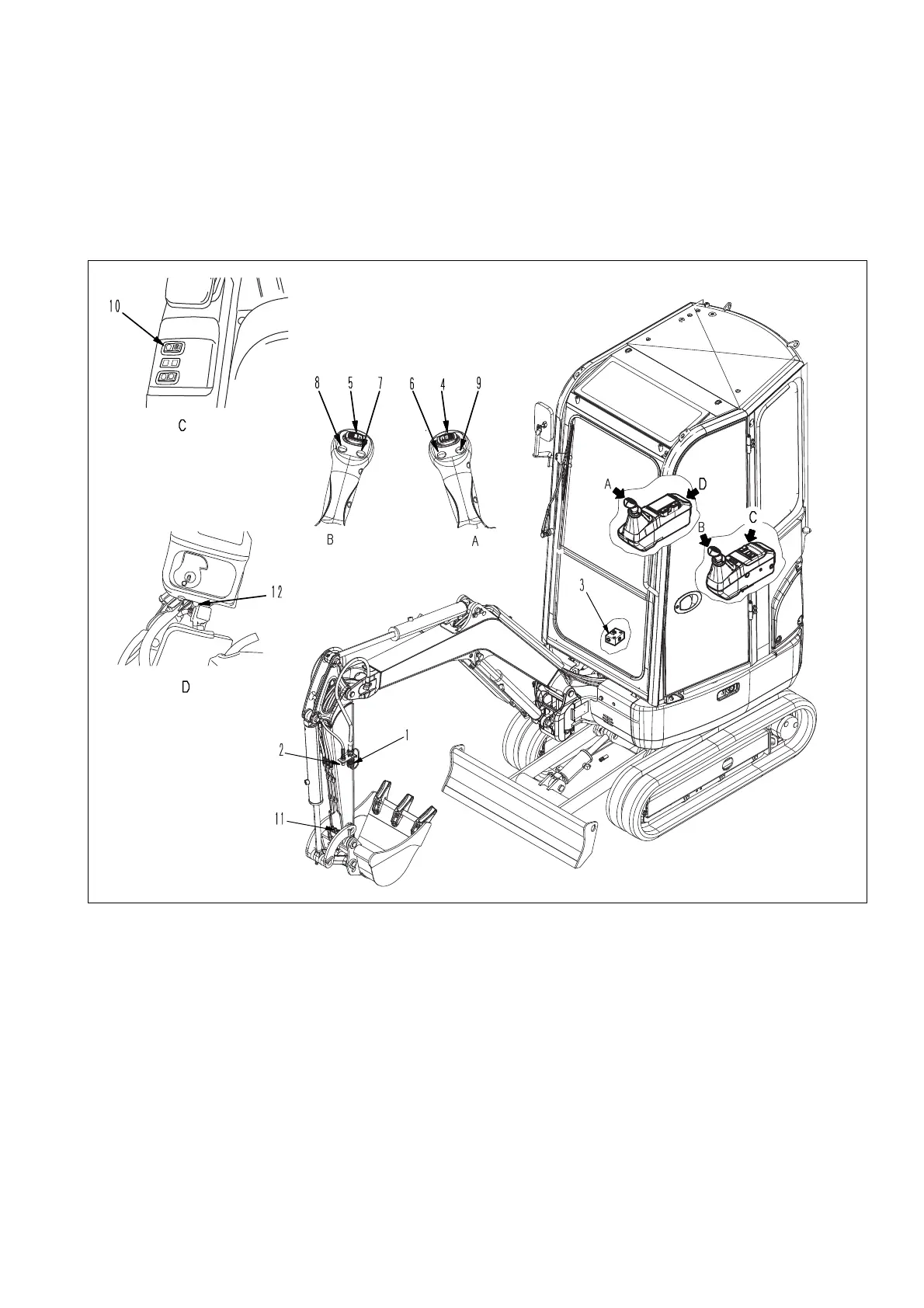

6.5.1 POSITION OF THE DEVICES
(1) Quick coupler (1st attachment)
(2) Equipment (2nd attachment)
(3) Selection valve
(4) Attachment proportional roller (1st line) / breaker activation
(5) Attachment proportional roller (2nd-3rd line)
(6) Horn button
(7) 2nd line activation switch
(8) 3rd line activation switch
(9) Hydraulic quick coupler activation switch
(10 Hydraulic quick coupler enabling switch
(11) 3rd line
(12) Fuses
