INSTRUMENTS AND CONTROLS
80
3.2 INSTRUMENTS AND CONTROLS
The following paragraphs describe the devices that are necessary for correct operation of the machine.
To perform the required operations correctly and safely, it is important to understand the equipment operating
methods and the meaning of the information displayed.

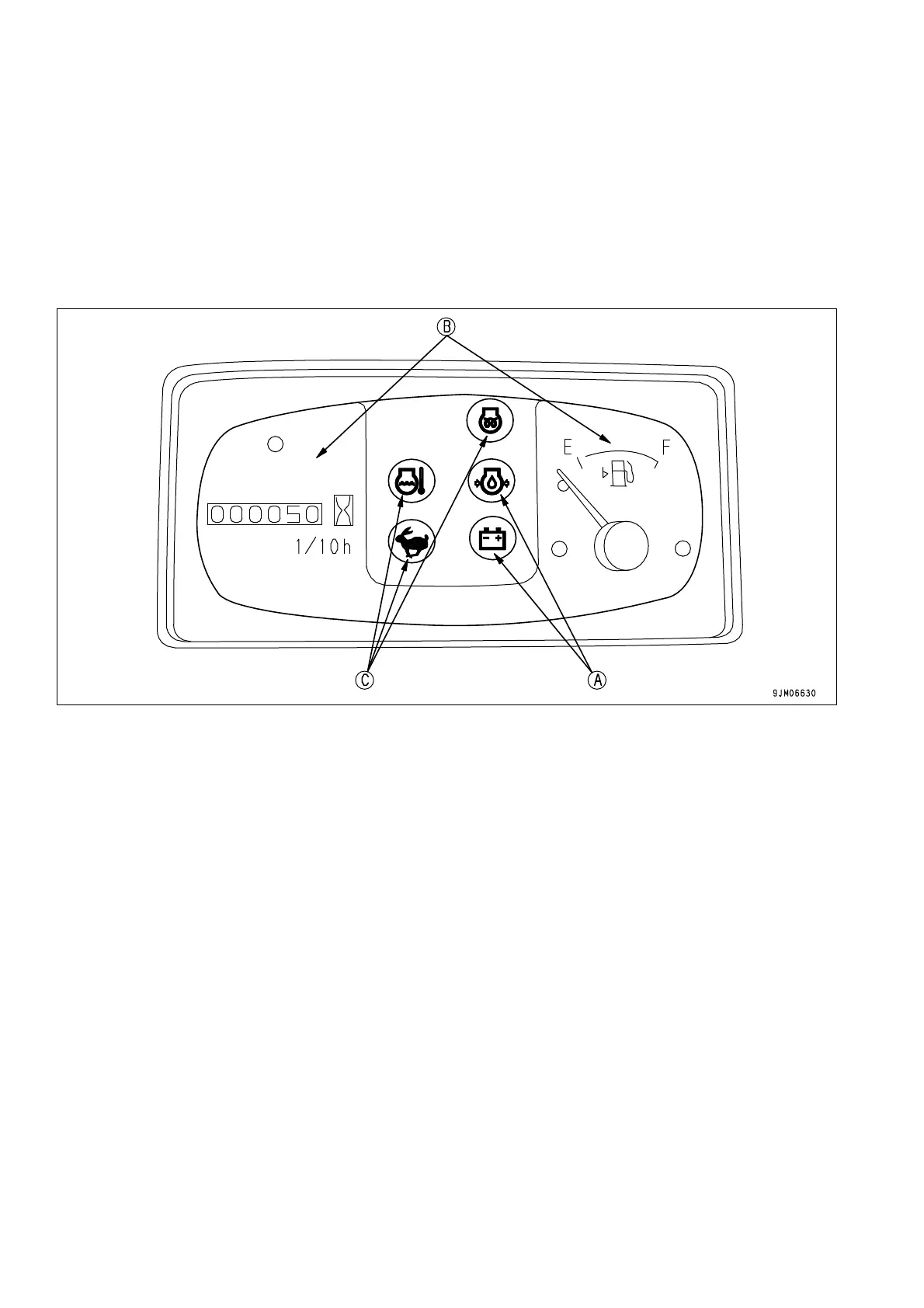

3.2.1 WARNING LIGHTS AND GAUGES
(A): 
(B)
Emergency warning lights
Gauges
(C)  Warning lights
WEAM012405
