PREPARATION FOR EQUIPMENT INSTALLATION (only for machines with proportional controls)
267

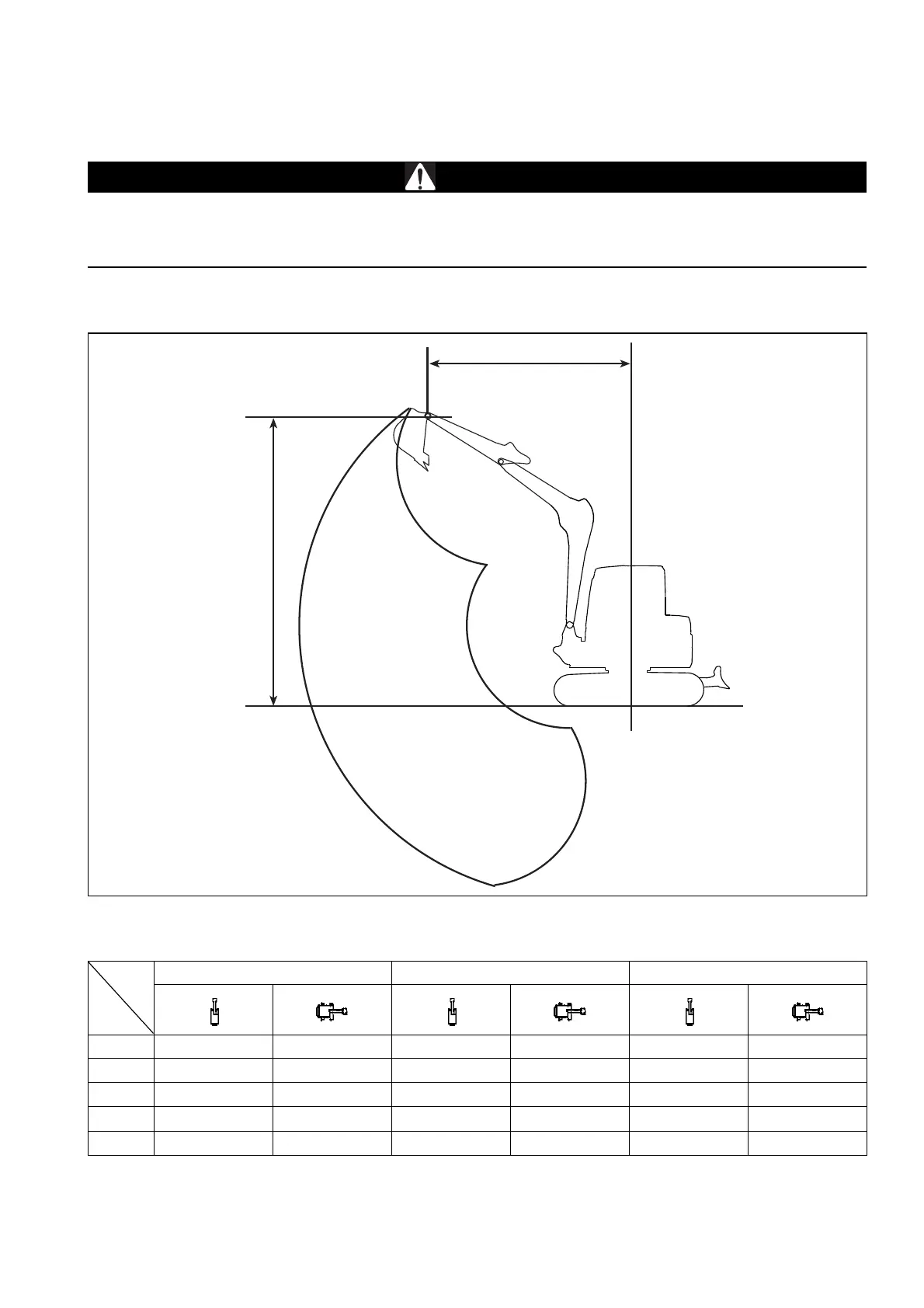

6.5.3 LIFTING CAPACITIES TABLES
q
According to the harmonized standard EN474-5 (§ 4.1.7.5), the machine cannot lift weights exceeding
1000 kg, unless it is provided with appropriate equipment.
q
Carry out lifting operations only with the machine positioned on firm and flat ground.
q
The load does not exceed 87% of the hydraulic lifting capacity or 75% of the tipping limit.
* Load limited by the hydraulic lifting capacity and not by the tipping limit.
VARIABLE GAUGE RETRACTED + LOWERED BLADEUnit of measurement:
2 m 3 m Max.
3.0 m------
2.0 m 195 190 200 160 200 160
1.0 m 375 350 235 150 210 125
0 m 400 260 280 150 220 130
-1.0 m------
