TRANSPORTING THE MACHINE
171
3.4.3 LIFTING THE MACHINE
q
To lift the machine, the cables and the upper lifting bar used must be properly sized; do not use worn ca-
bles or cables with broken strands.
q
Do not lift the machine before the operator has got off and make sure that there is no one around before
lifting it.
q
Do not lift the machine with the turret swung laterally. Before lifting the machine, swing the work equip-
ment to the sprocket side, then position the undercarriage and the turret parallel to each other.
q
Always keep the machine in horizontal position during the lifting operations.
q
Do not stand under the machine when this is suspended.
q
Do not attempt to lift the machine in any position different from that illustrated below, since it may lose
stability.
q

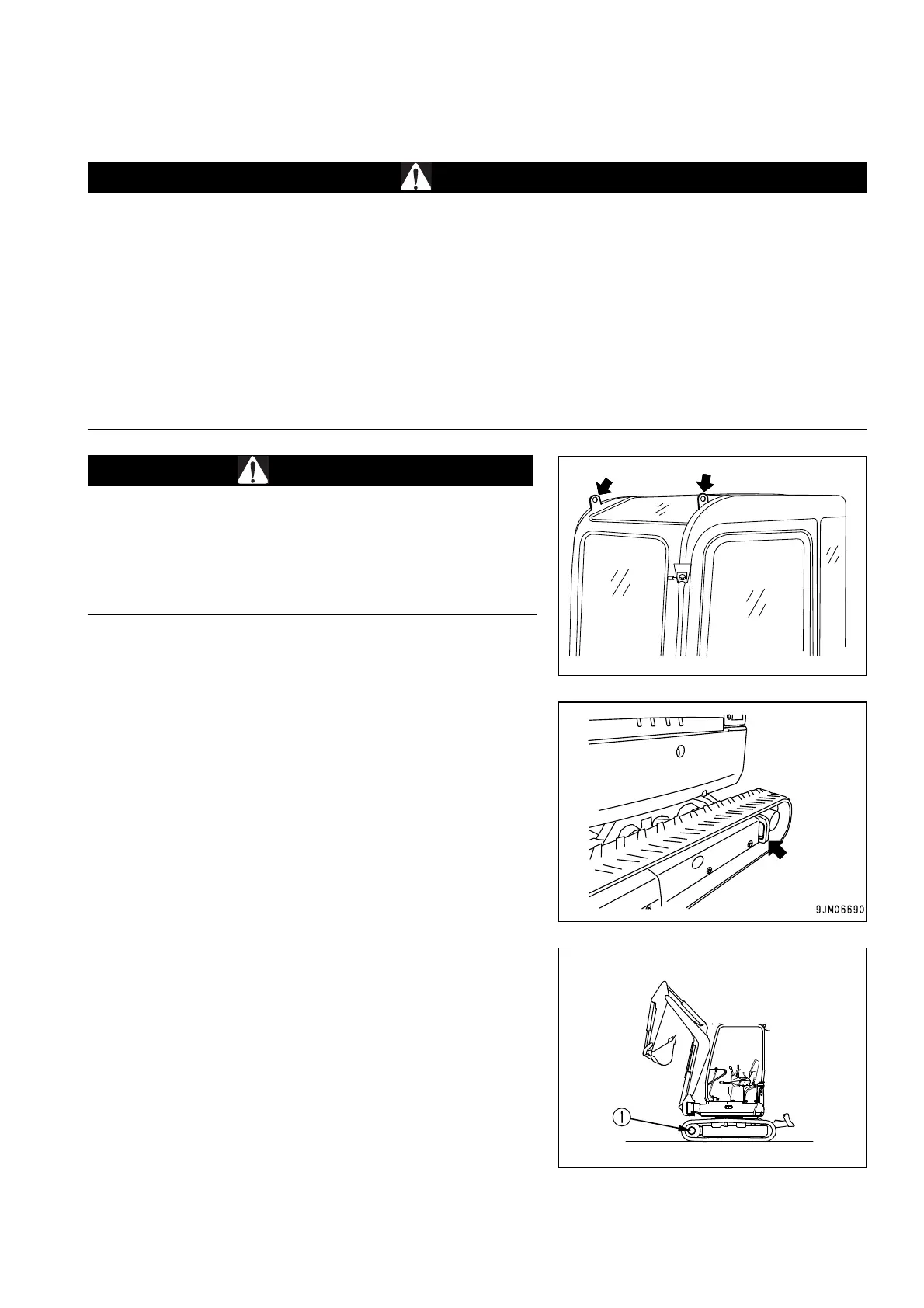

It is prohibited to use the 4 hooks on the top of the cab to
lift the machine. This would damage the cab.
q
It is prohibited to lift the machine using the holes provided
in the undercarriage, since these must be used only for
transporting the machine. This would damage the under-
carriage.
q
For details on the weight of the machine, see paragraph
"5.1 TECHNICAL SPECIFICATIONS".
q
The lifting procedure described must be considered valid
only for machines with standard specifications.
The lifting method varies according to the equipment and
attachments installed. In these cases, contact your Komat-
su Distributor, who can supply you with more precise infor-
mation.
The lifting operation must be carried out on a level surface, by
proceeding as indicated below.
1. Start the engine, then swing the turret so that the work
equipment is above the sprockets (1) with the undercarriage
and the turret parallel to each other.
2. Lift the blade completely.
3. Extend the bucket cylinder, the arm cylinder and the boom
cylinder completely.
4. If the boom is swung to the left or to the right, operate the
boom swing pedal to position the boom parallel to the
undercarriage, then lock the pedal safety device.
