USE OF THE MACHINE AND RELATED CONTROLS

135

3.3.4 STOPPING THE ENGINE

IMPORTANT

The sudden stop of the engine while it is running shortens its life.

Do not stop the engine suddenly, except in case of emergency. It is likewise recommended not to stop

the engine suddenly if it has been running for a long period and is still hot; in this case, let the engine

run at low idling speed for about 5 minutes, in order to allow it to cool down gradually before stopping it.

1. Run the engine at low idling speed for about 5 minutes, in

order to allow it to cool down gradually.

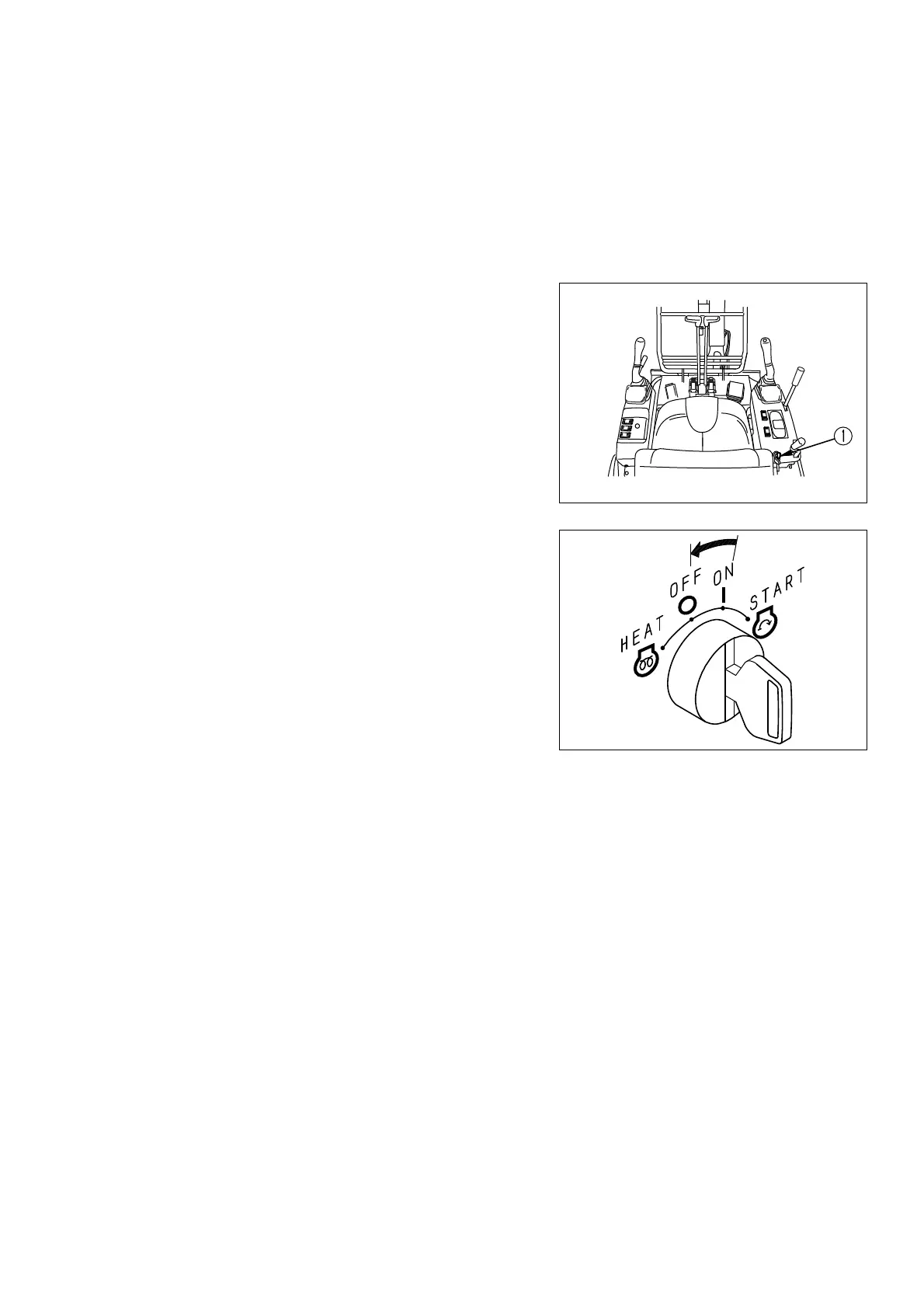

2. Turn the ignition key (1) to position OFF to stop the engine.

3. Remove the key (1).

RKA22940

RYA17470

WEAM012405
