[Vertical Punch (Z-Fold) Position Adjustment]
To display: [Utility] - [Administrator Settings] - [System Settings] - [Expert Adjustment] - [Finisher Adjustment]
- [Vertical Punch (Z-Fold) Position Adjustment]

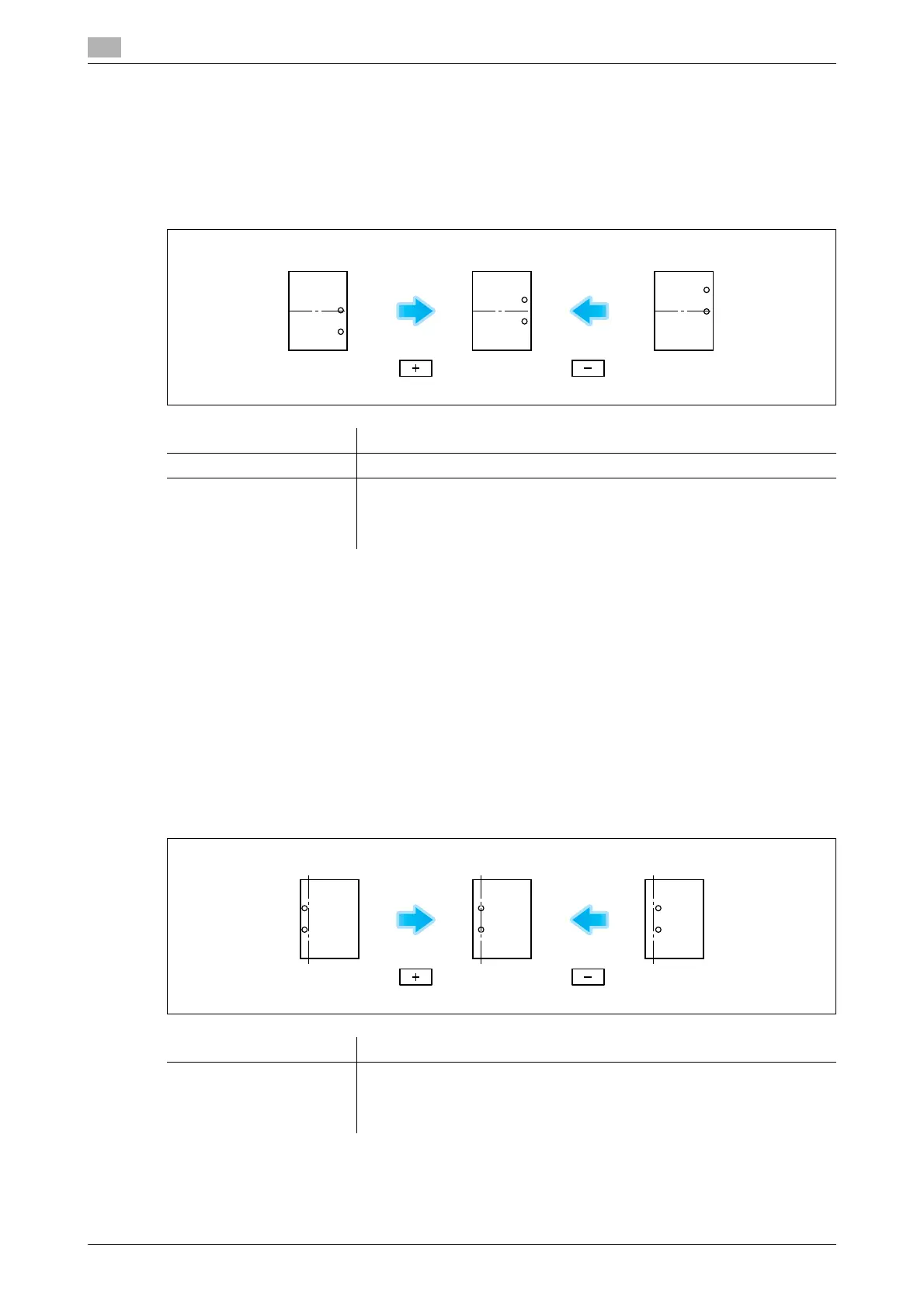

If the positions of the punch holes on the paper are displaced vertically, use this option to adjust the punch
hole positions.
Copy after configuration, then repeat adjustments as required.
Tips
- This adjustment is possible when the Finisher FS-535 and Z Folding Unit ZU-606 are installed in
bizhub C554.
- Make adjustments while checking paper punched at a displaced position.
- The value you set by selecting [All] in [Paper Size] will be added to the setting for each paper size.
[Horizontal Punch (Z-Fold) Position Adjustment]
To display: [Utility] - [Administrator Settings] - [System Settings] - [Expert Adjustment] - [Finisher Adjustment]
- [Horizontal Punch (Z-Fold) Position Adjustment]
If the positions of the punch holes on the paper are displaced sideways, use this option to adjust the punch
hole positions.
Copy after configuration, then repeat adjustments as required.
Tips
- This adjustment is possible when the Finisher FS-535 and Z Folding Unit ZU-606 are installed in
bizhub C554.
Settings Description
[Paper Size] Select the size of paper subject to punch hole position adjustment.
[Adjust Value] Enter an adjustment value between -5.0 and 5.0 mm by tapping [-] and [+].
• [-]: Move the punch position downward.
• [+]: Move the punch position upward.
[0.0 mm] is specified by default.
Settings Description
[-]/[+] Enter an adjustment value between -5.0 and 5.0 mm by tapping [-] and [+].
• [-]: Move the punch position to the left.
• [+]: Move the punch position to the right.
[0.0 mm] is specified by default.
