6-16E
Repair manual KTM LC4 Art.-Nr. 3.206.014 -E

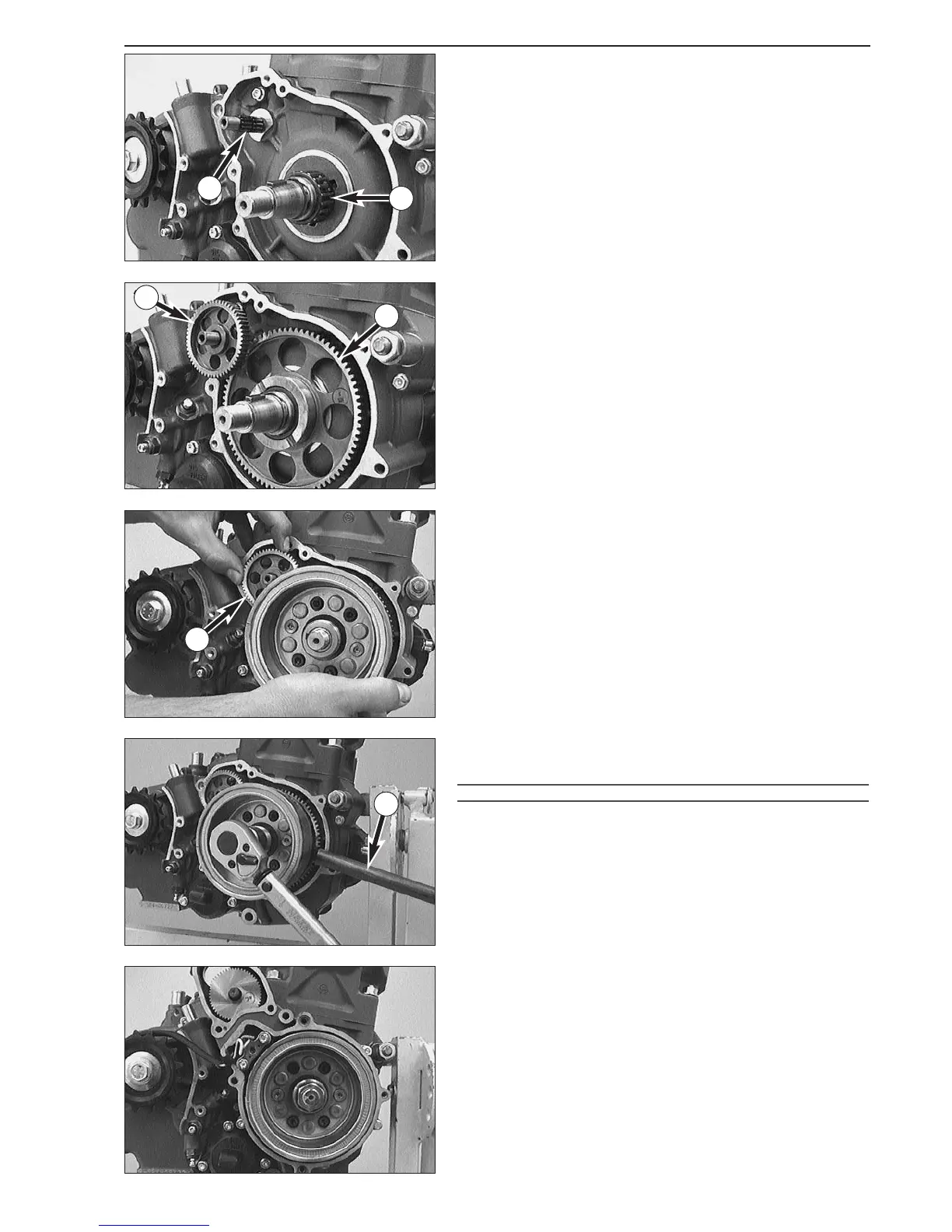

Mounting the electric starter drive
– Insert the woodruff key into the crankshaft.
– Slide 2 needle bearings 1 onto the bearing pin of the reduction gear.
– Slide the needle bearing
2 onto the crankshaft.
– Oil the needle bearings.
– Mount the freewheel gear
3 and the reduction gear 4.
Mounting the ignition (Kokusan 4K-2)
– Degrease the cones of flywheel and crankshaft.
– Thoroughly oil the freewheel and mount the flywheel.
NOTE: Turn the reduction gear for easier mounting of the flywheel.
–Mount disk with the nut.
– Use the holding tool 5 584.29.012.000 to hold the flywheel and
tighten the hexagon nut with 150 Nm.
!
CAUTION
!
TOAVOID DISTORTION OF THE CRANK WEB, NEVER MOUNT THE CRANKSHAFT
LOCKING BOLT TO TIGHTEN THE HEXAGON NUT OF THE FLYWHEEL
.
– Insert 2 dowels into the housing.
– Apply silicone to both sealing surfaces and mount a new gasket.
– Mount the preassembled starter flange and use 4 bolts to fasten the
starter flange.
1
2
3
4
4
5
