7-51E
Checking the speedometer sensor and the speedometer
(Adventure – from the 2002 model)

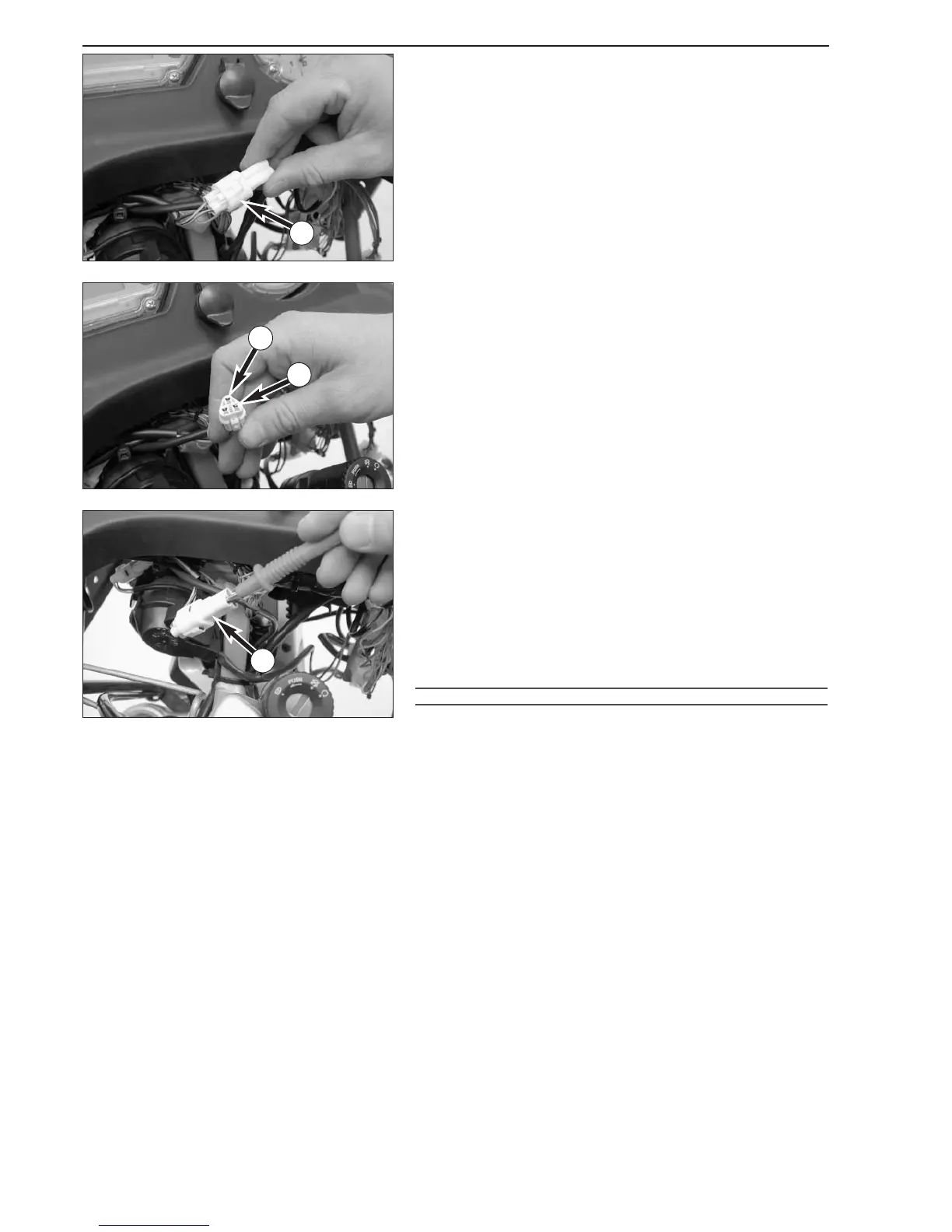

Checking the speedometer:
– Disconnect the connector
1 from the speedometer.
NOTE: The connector
1 is located under the cockpit covering.
– Switch on the ignition.
– Briefly connect pins
2 and 3 (cable colors black/brown and
black/orange) with a cable several times while you observe the speed
reading. If the speedometer is functioning correctly, the speed should
be indicated.
Checking the speedometer sensor:
NOTE: The measurement must be made with the ignition switched on
and the plug and socket connection connected.
– Use a digital multimeter to measure the voltage at the black cable on
connector
1 against the ground.
– Slowly turn the front wheel.
– The measured value should be over 4.5 volts when the wheel is
turned or less than 1 volt when the magnet on the front-wheel hub
is within the range of the speed sensor.
!
CAUTION
!
SINCE YOU MUST MEASURE WITH THE CONNECTOR ATTACHED, MAKE SURE TO
CAREFULLY PUSH THE MEASURING TIPS ON THE MULTIMETER THROUGH THE SEALING
FROM THE CABLE SIDE AND NOT TO DAMAGE ANY PART OF THE CONNECTOR
.
