KTM 400-660 LC4 1998-2005 User Manual

2-13F

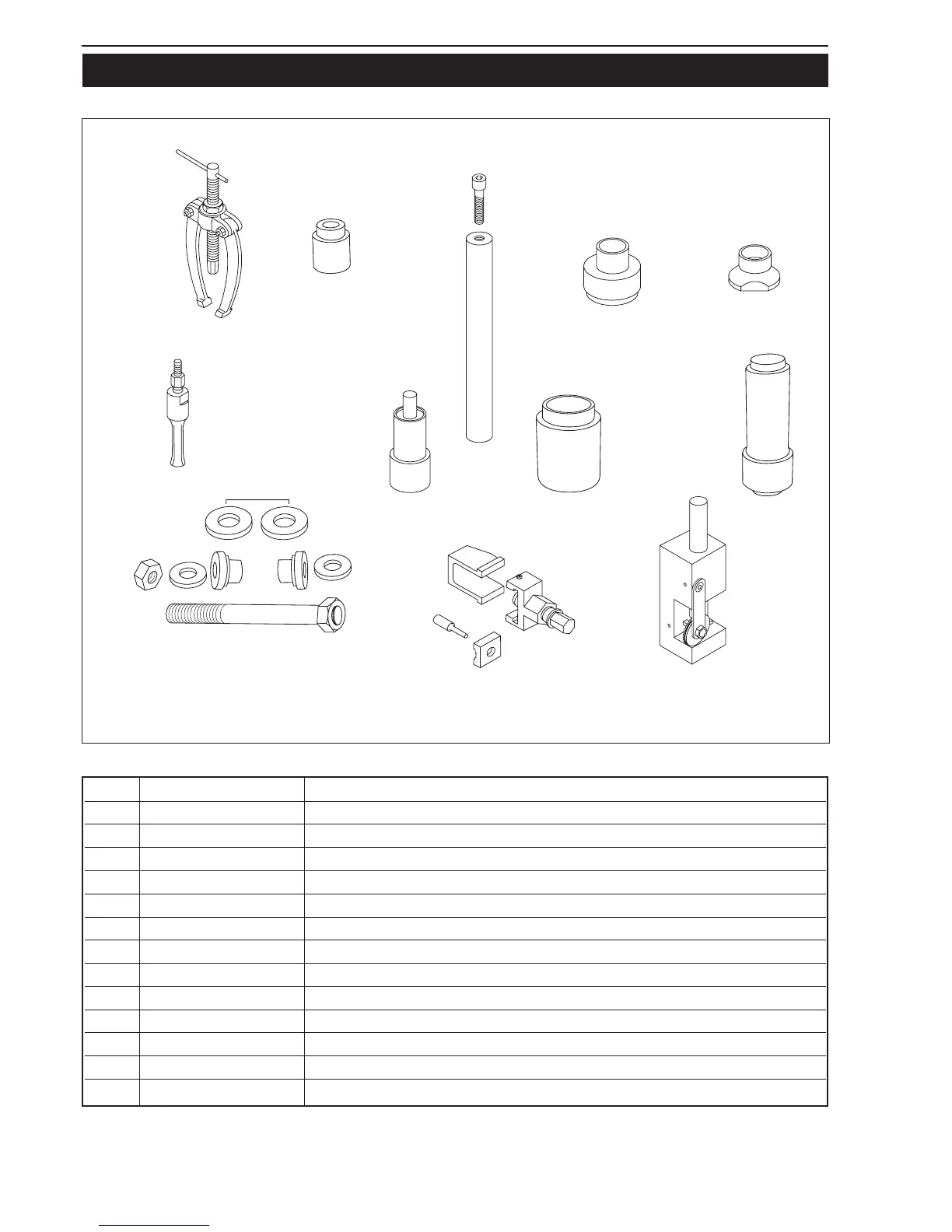

FIG PART NO. DESCRIPTION
1 151.12.017.000 Bearing extractor
2 584.29.093.000 Knock-out tool for needle bearing
3 584.29.089.000 Chassis toolholding
4 584.29.091.000 Pressing tool for bearing seat / rear wheel bearing
5 584.29.092.000 Knock-out tool for bearing seat
6 600.29.018.000 Insert for bearing extractor
7 584.29.086.000 Pressing tool for swing arm bearing
8 584.29.087.000 Sleeve for rocker arm
9 584.29.085.000 Pressing tool for needle bushing
10 584.29.090.000 Press-in washer for seal ring
11 584.29.088.044 Pull-in tool for linking
12 600.29.020.000 Chain rivet tool
13 584.29.020.000 Chain rivet tool
1
2
3
4
5
7
8
9
bk
6
bl
bm
bn
SPECIALTOOLS – CHASSIS
