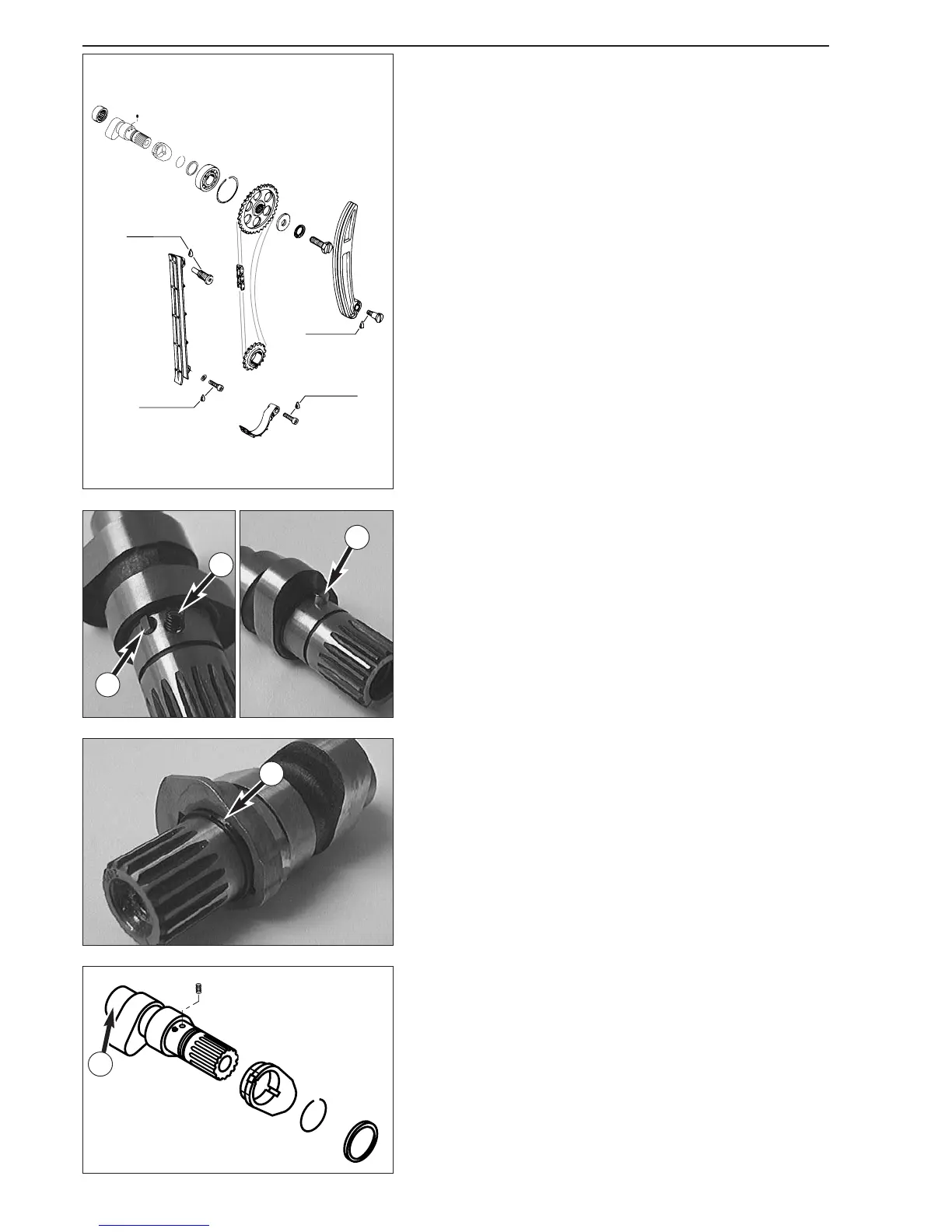

Checking the components of the timing mechanism for wear
Timing chain guide 1
Check for signs of wear.
Timing chain tensioner
2
Check for signs of wear.
Timing chain
3
Check rollers for smooth operation and signs of wear.
Timing gear
4
Check teeth for signs of wear.
Camshaft gear
5
Check teeth for signs of wear.
Grooved ball bearing
6
Check clearance.
Safety device
7
Check for signs of wear.
Camshaft
8
Check pivot points and running surfaces for signs of wear.
Disassembling the camshaft and checking the components
for wear
– Remove both the stepped ring bo and the circlip bp. Carefully
remove the decompression cam
bm. Keep a watch on the spring 9.
Supporting pin
bk
Check for signs of wear.
Guide pin
bl
Check for signs of wear.
Decompression cam
bm
Check the contact surfaces towards the supporting pin for signs of
wear.
Spring
9
Check length (minimum length: 7.0 mm/0.275 in).
Camshaft
bn
Check for signs of wear at pivot point A. Minimum diameter of the
pivot point 19.97 mm.
Preassembling the camshaft
– Place spring 9 in the bore, compress and slide decompression cam
bm over it.
– Mount circlip
bp with the sharp side towards the decompression cam.
– Position the open side
B of the circlip between the open spaces of
the decompression cam.
– Slide the step ring
bo with open spaces over the lock washer.
5-12E
8
13
9
12
15
14
6
4
5
2
7
1
3
9
10
11
B
A
