KTM 400-660 LC4 1998-2005 User Manual

3-5E

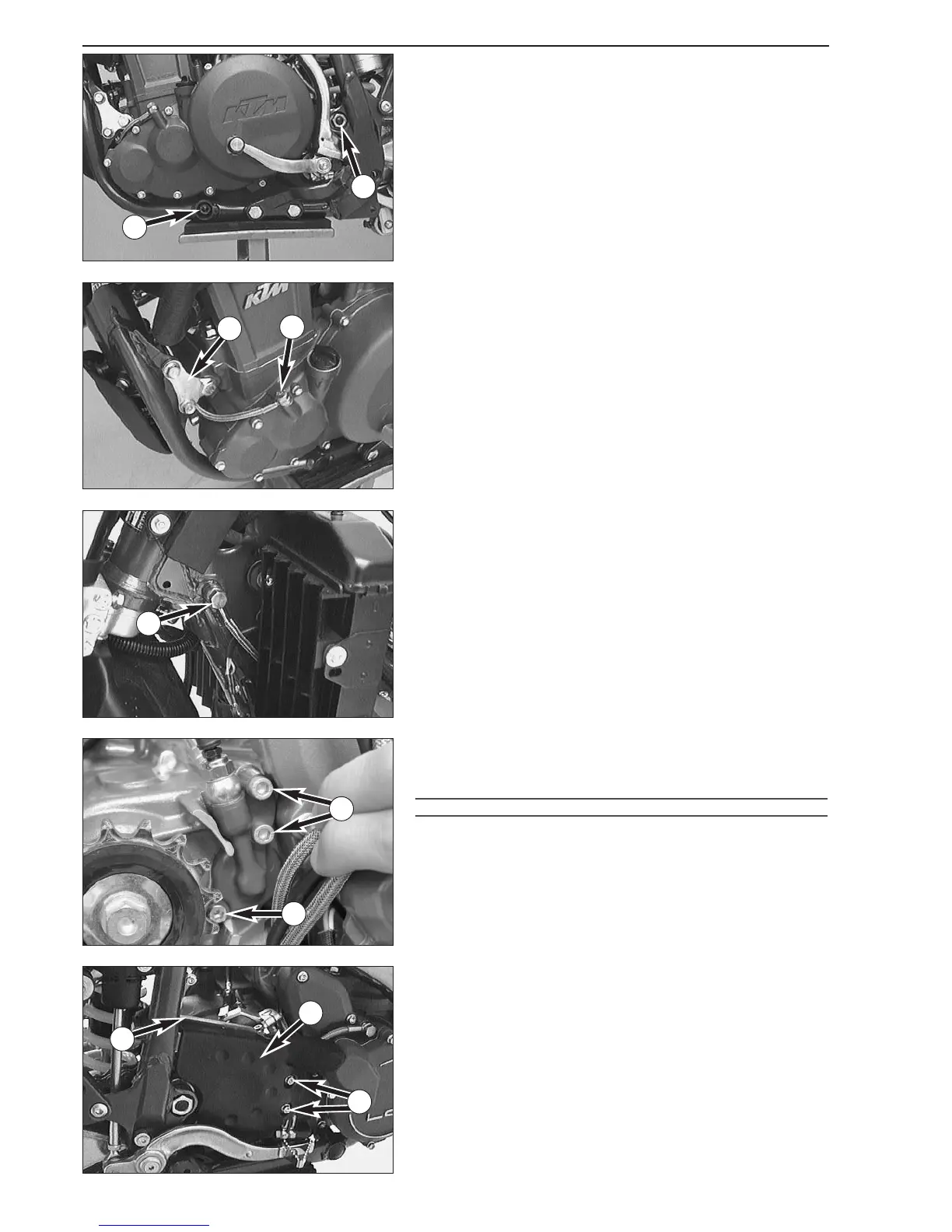

Mounting the engine
– Lift the engine into the frame and position.
– Mount the screw
1 and the swing arm pivot 2 but do not tighten
yet.
– Mount the engine retaining brackets
3 on the left and right.
–Tighten the swing arm pivot
2 to 100 Nm.
M8 engine fastening bolts: 40 Nm
M10 engine fastening bolts: 70 Nm
–Tighten the jet bolt
4 to 10 Nm.
– Connect all of the electric socket connections to the engine.
–Tighten the banjo bolt
5 to 15 Nm.
Starting with the 2003 model:
–Tighten the 3 crews
6 on the clutch slave cylinder to 10 Nm.
– Mount the chain.
 WARNING 
W
HEN MOUNTING THE CHAIN JOINT MAKE SURE THAT THE CLOSED SIDE OF THE
RETAINER POINTS IN THE RUNNING DIRECTION
.
– Put the chain damping panel 7 and the chainguard 8 in place and
fasten with the two screws
9.
1
2
3
4
5
6
6
9
7
8
