4-14E
Repair manual KTM LC4 Art.-Nr. 3.206.014 -E

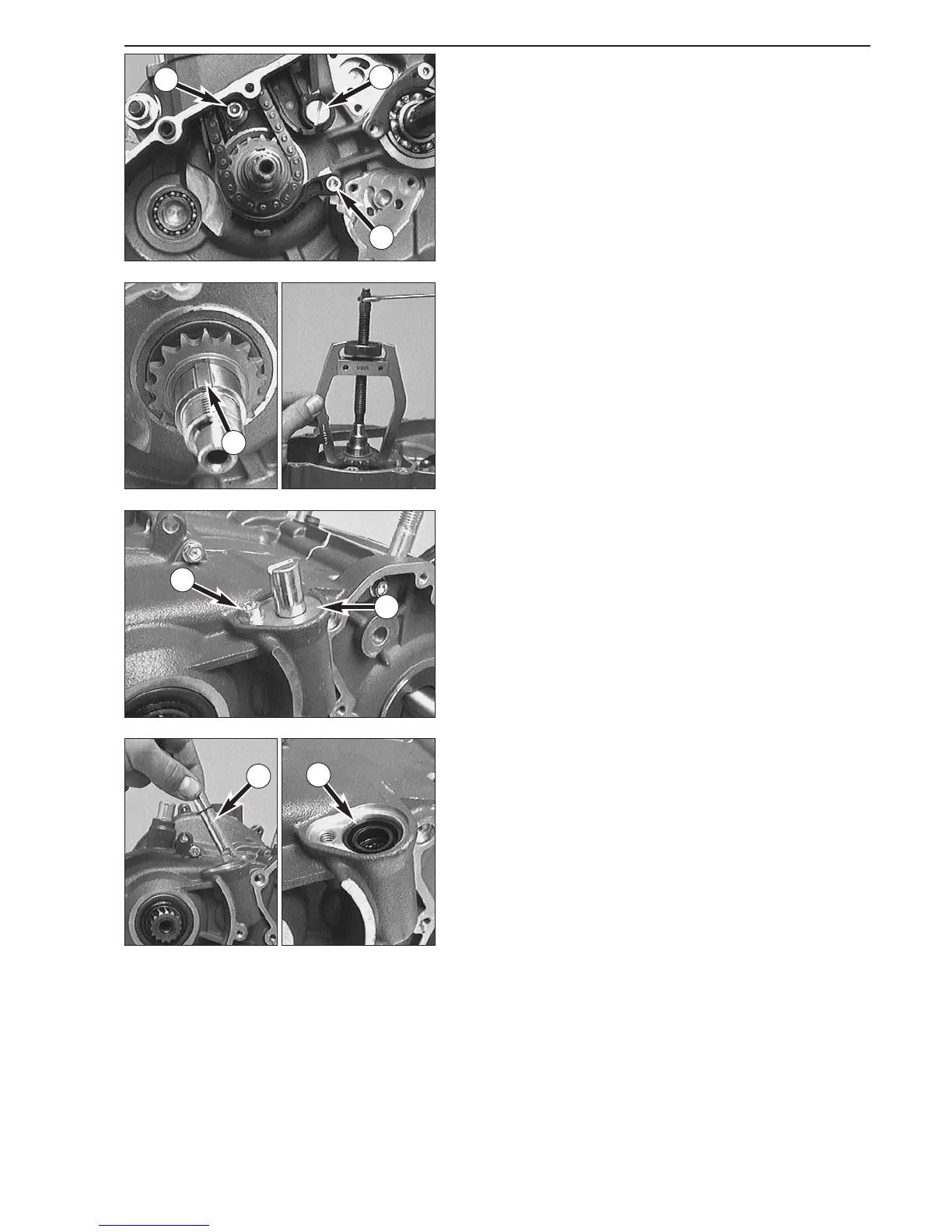

Removing the timing chain and the timing gear
– Remove allan head bolt 1 and remove timing chain guide from the
casing.
– Unscrew flat-head screw
2 and remove timing chain tensioner.
– Unscrew allan head bolt
3 and remove timing chain securing guide.
– Insert timing chain into the clutch compartment of the engine
housing and disengage from timing gear.
– Remove the primary gear woodruff key
4 from the crankshaft.
–Withdraw the timing pinion from crankshaft with a 2-jaw puller
590.29.033.000.
–Take the woodruff key of the timing gear out of the crankshaft.
Removing the clutch release shaft
– Remove bolt(s) 5 and take off the retaining bracket 6.
– Pull the clutch release shaft
7 out of the housing.
– Remove the grooved ring
8.
1
2
3
4
5
6
7
8
