4-15E

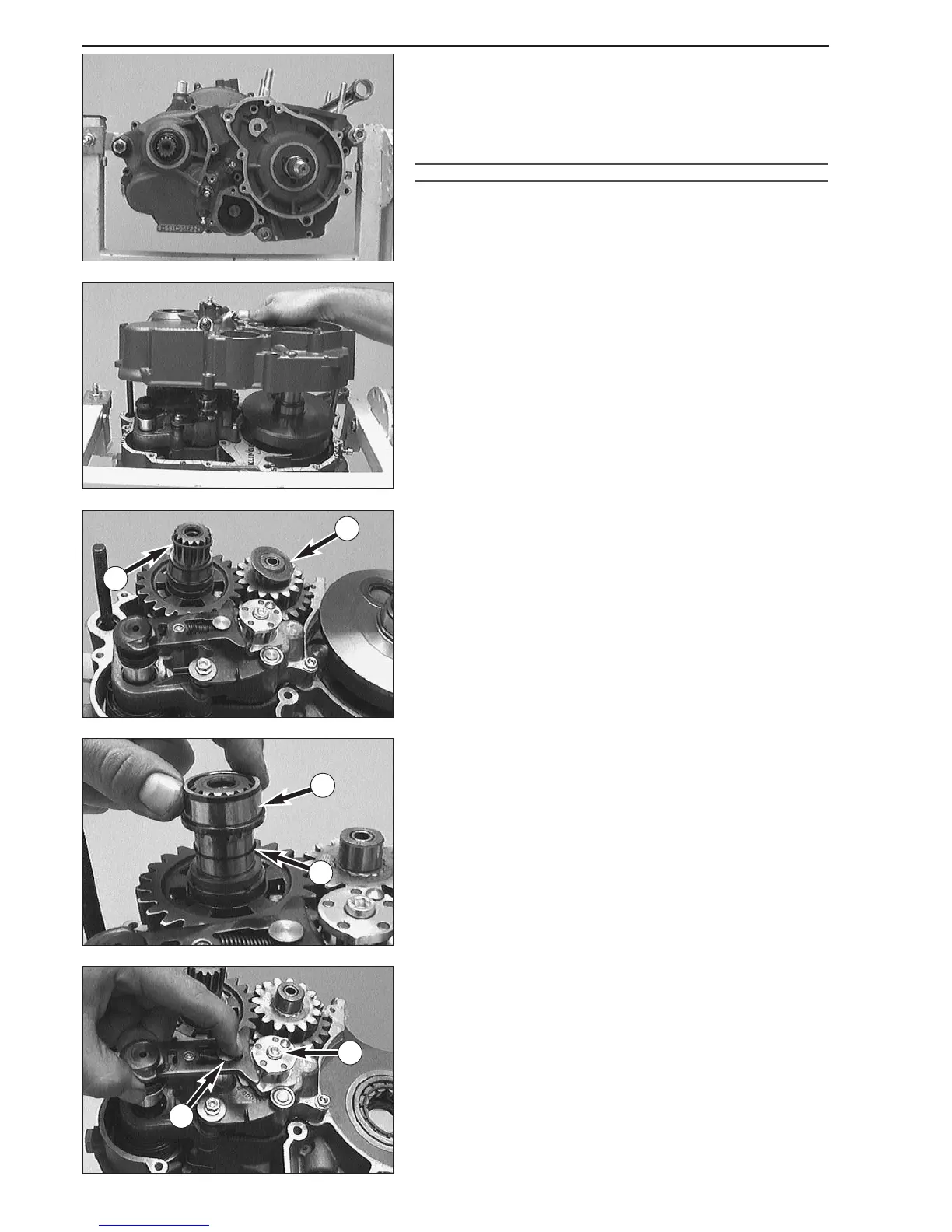

Parting of engine housing
– Loosen the crankshaft locking bolt.
–Tip ignition side upwards and remove all the housing bolts.
– Release engine mount on engine repair stand.
– Lift right hand housing half with suitable tools bearing on the bosses
provided, or part with a few light plastic mallet blows against the
counter shaft.
!
CAUTION
!
LEVERING APART WITH A SCREW-DRIVER OR SIMILAR TOOL MUST BE AVOIDED, SINCE
THE SEALING SURFACES ARE EASILY DAMAGED
.
– Remove housing-half and gasket.
–Take the stop disc
1 off the main shaft (can stick to the inside of the
housing).
–Take the O-ring
2 off the countershaft.
– Remove the crankshaft from the bearing by hand.
–Take the inner ring 3 of the roller bearing and the O-ring below 4
off the countershaft.
Removing the shift mechanism
– Push back slide plate 5 and pull shift shaft out of the kickstarter
shaft.
– Remove allan head bolt
6 and detach locking piece.
1
2
3
4
5
6
