KTM 400-660 LC4 1998-2005 User Manual

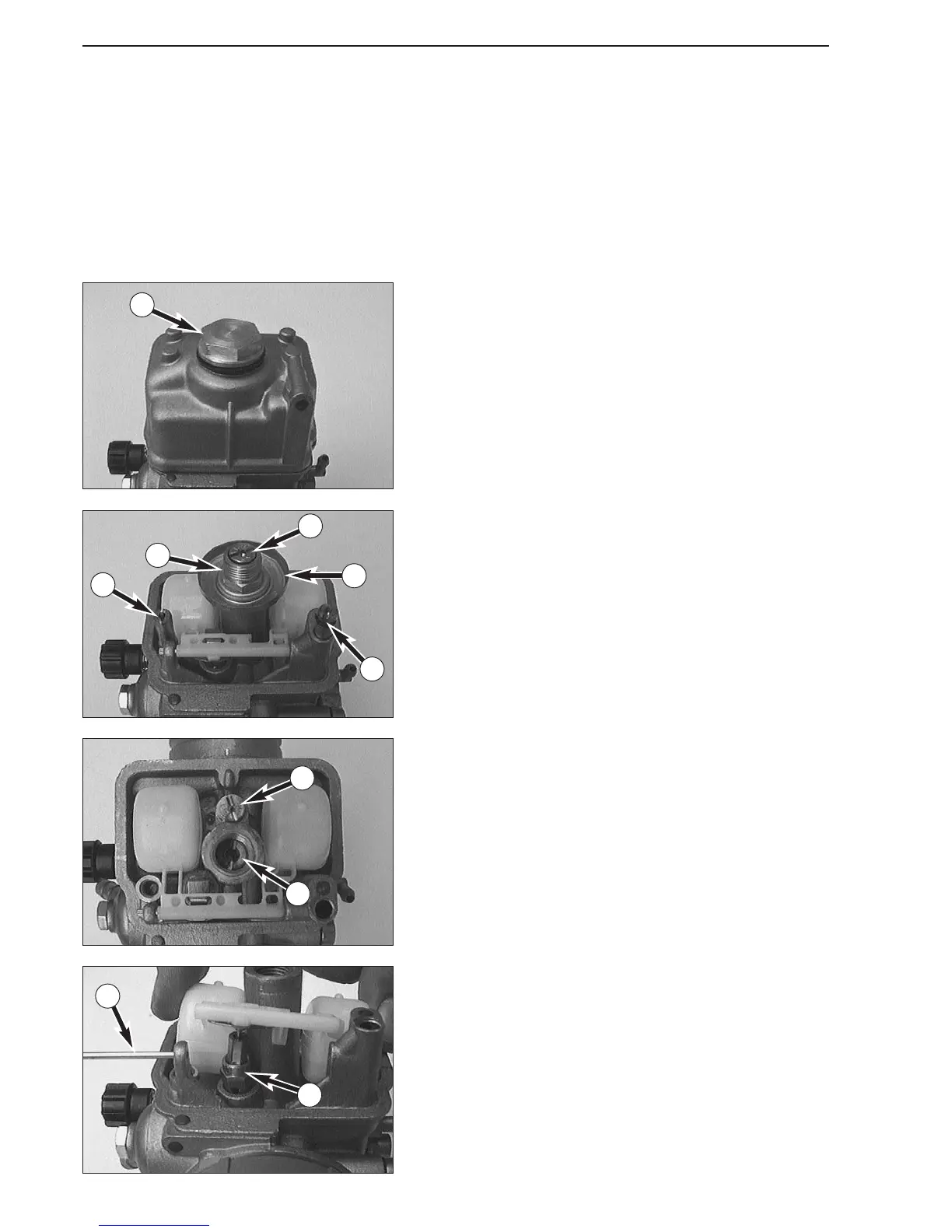

Disassembling the carburetor (Dell’Orto PHM 38 ND)
NOTE: Before commencing to disassemble the carburetor make sure
that your workplace is clean and large enough to properly arrange all
carburetor components before you.
– Remove the two screws and pull the carburetor cover out of the
carburetor together with the throttle slide.
–Wrap the throttle slide in a clean piece of cloth and put it onto the
air filter box.
– Undo screw and take the starting piston out of the carburetor.
– Remove the plug
1 together with the seal ring and take off the float
chamber.
– Remove the main jet
2, the main jet holder 3 and the baffle 4.
–Twist out the starting jet
6.
–Twist out the return valve
5.
– Remove the idling jet
8 together with the idle mixture pipe below.
–Twist out the needle jet
7.
– Pull out the pin
9 and remove the float.
– Remove the entire needle valve
bk together with the gasket behind.
8-16E
1
2
3
4
5
6
7
8
9
10
