Repair manual KTM LC4 Art.-Nr. 3.206.014 -E
Checking the oil level of the hydraulic clutch

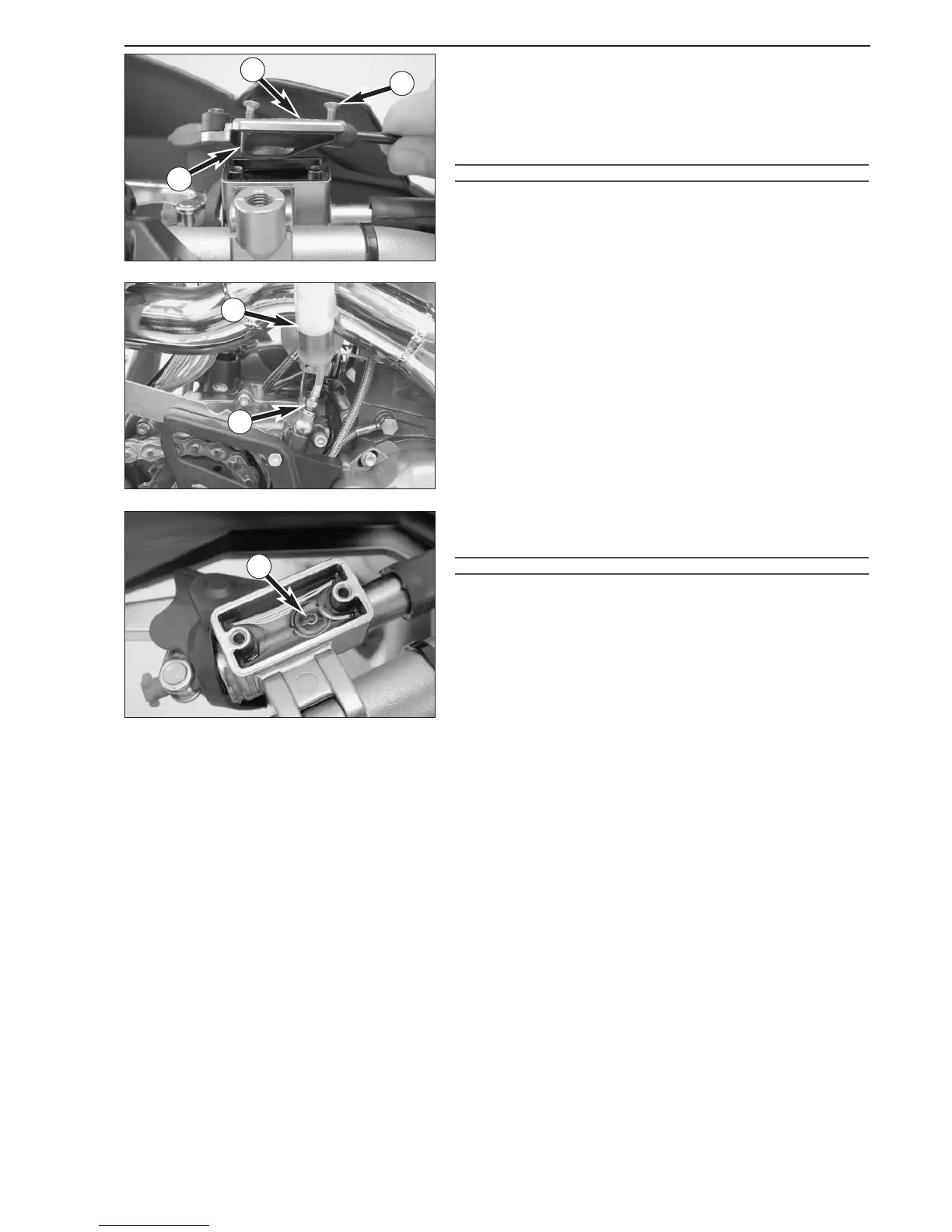

To check the oil level in the master cylinder of the clutch remove the
cover. For this purpose, remove screws
1 and cover 2 together
with the rubber boot
3. The oil level in the horizontal-standing
master cylinder should be 4 mm below the upper edge.
If necessary, fill up with biodegradable hydraulic oil SAE 10 (f.ex.
Motorex Kupplungs-Fluid 75).
!
CAUTION
!
– KTM USES BIODEGRADABLE HYDRAULIC OIL FOR THE HYDRAULIC CLUTCH
CONTROL
. NEVER MIX BIODEGRADABLE HYDRAULIC OILS WITH MINERAL OILS.
–A
LWAYS USE BIODEGRADABLE HYDRAULIC OIL
SAE 10 TO FILL UP THE MASTER
CYLINDER
. NEVER REFILL WITH MINERAL HYDRAULIC OIL OR BRAKE FLUID.
Bleeding of the hydraulic clutch
To bleed, the cover of the master cylinder of the clutch needs to be
removed. For this purpose, remove screws
1 and take off cover 2
together with rubber bellows 3. At the slave cylinder of the clutch,
remove the bleeder nipple
4. In its place, mount the bleeder syringe 5
503.29.050.000 which is filled with SAE 10 hydraulic oil. Refill oil until
oil is discharged from the bore
6 of the master cylinder in a bubble-free
state. Make sure that the oil does not overflow. The bleeder syringe can
be purchased from your KTM dealer.
Having completed the bleeding procedure, you have to verify that the
oil level in the master cylinder is correct. If necessary, fill up with
biodegradable hydraulic oil SAE 10 (f.ex. Motorex Kupplungs-Fluid 75).
!
CAUTION
!
– KTM USES BIODEGRADABLE HYDRAULIC OIL FOR THE HYDRAULIC CLUTCH
CONTROL
. N
EVER MIX BIODEGRADABLE HYDRAULIC OILS WITH MINERAL OILS
.
–A
LWAYS USE BIODEGRADABLE HYDRAULIC OIL SAE 10 TO FILL UP THE MASTER
CYLINDER
. NEVER REFILL WITH MINERAL HYDRAULIC OIL OR BRAKE FLUID.
2
1
3
4
6
5
