MAINTENANCE WORK ON THE CHASSIS 103
– Position the cover with the membrane. Mount and tighten screws.

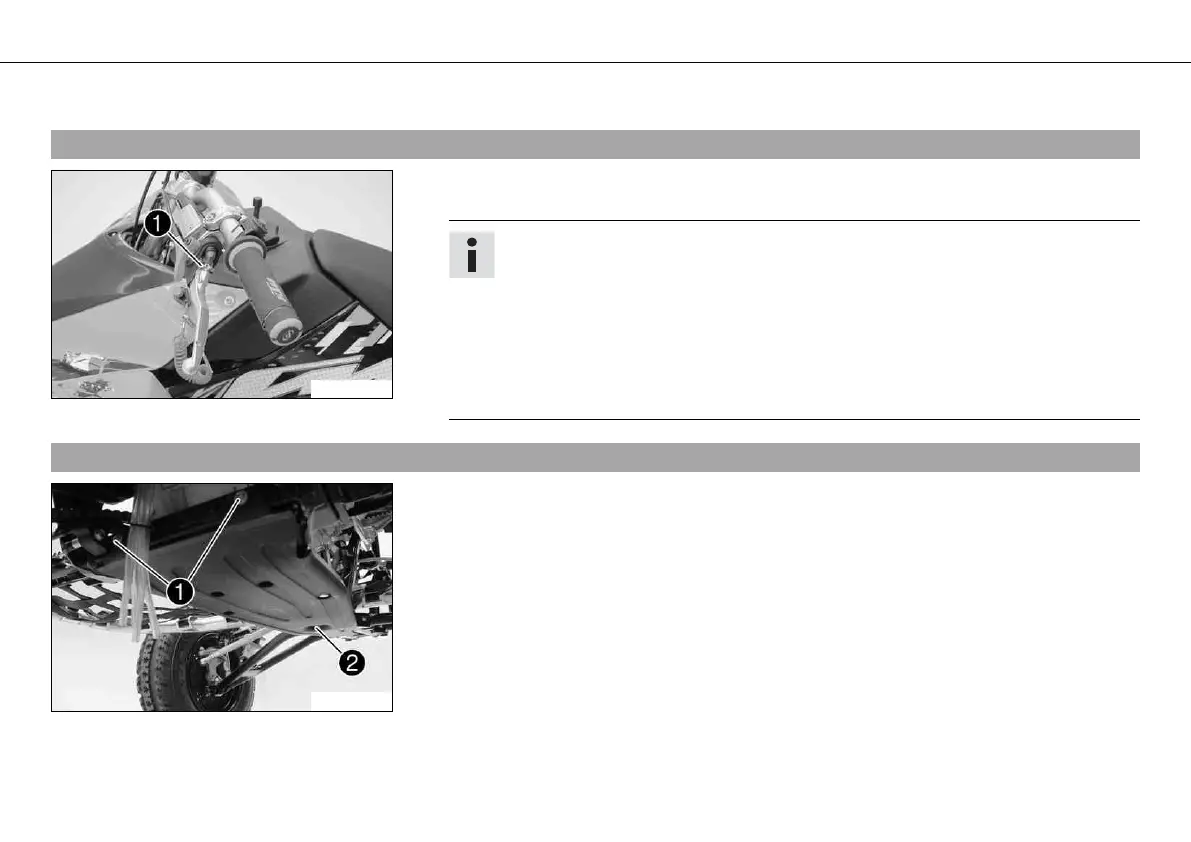

10.36Adjusting basic position of clutch lever
301813-10
– Adjust the basic setting of the clutch lever to your hand size by turning adjusting
screw 1.
Info
Turn the adjusting screw counterclockwise to increase the distance between the
clutch lever and the handlebar.
Turn the adjusting screw clockwise to decrease the distance between the clutch
lever and the handlebar.
The range of adjustment is limited.
Turn the adjusting screw by hand only, and do not apply any force.
Do not make any adjustments while riding!
10.37Removing the engine guard
301823-10
– Remove screws 1 and 2. Remove the engine guard.
