MAINTENANCE WORK ON THE CHASSIS 69

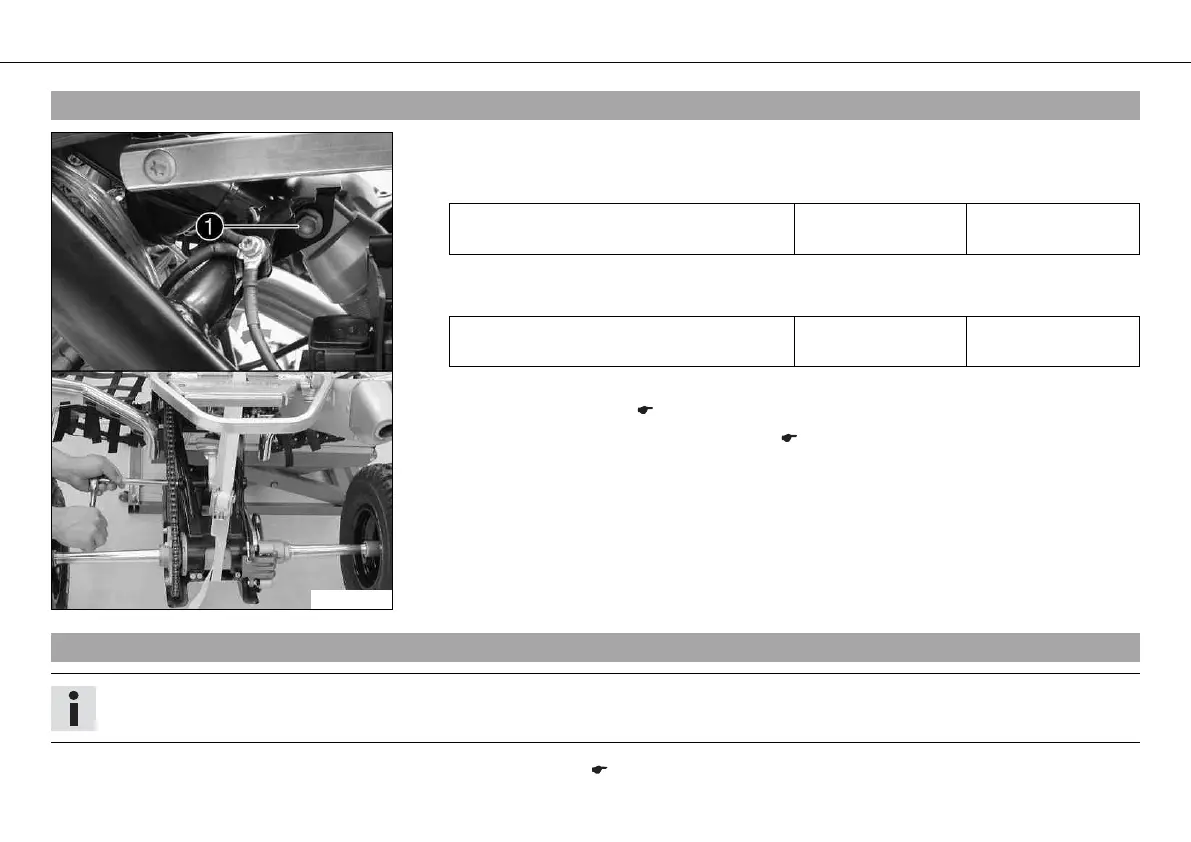

10.4Installing the rear shock absorber x
301834-10
– Position the shock absorber in the vehicle with the reservoir on the right. Mount and
tighten the top screw 1.
Guideline
Screw, rear top shock absorber M12 60 Nm
(44.3 lbf ft)
– Position the shock absorber in the swingarm. Mount and tighten the bottom screw.
Guideline
Screw, rear bottom shock absorber M12 70 Nm
(51.6 lbf ft)
– Remove the tension belt.
– Install the rear fender. ( p. 74)
– Remove the vehicle from the lifting gear. ( p. 67)
10.5Removing the radiator spoiler
Info
The operations are the same on the left and right.
– Remove the seat ( p. 78)
