CONTROLS 20
5.3Hand brake lever, parking brake
301776-10

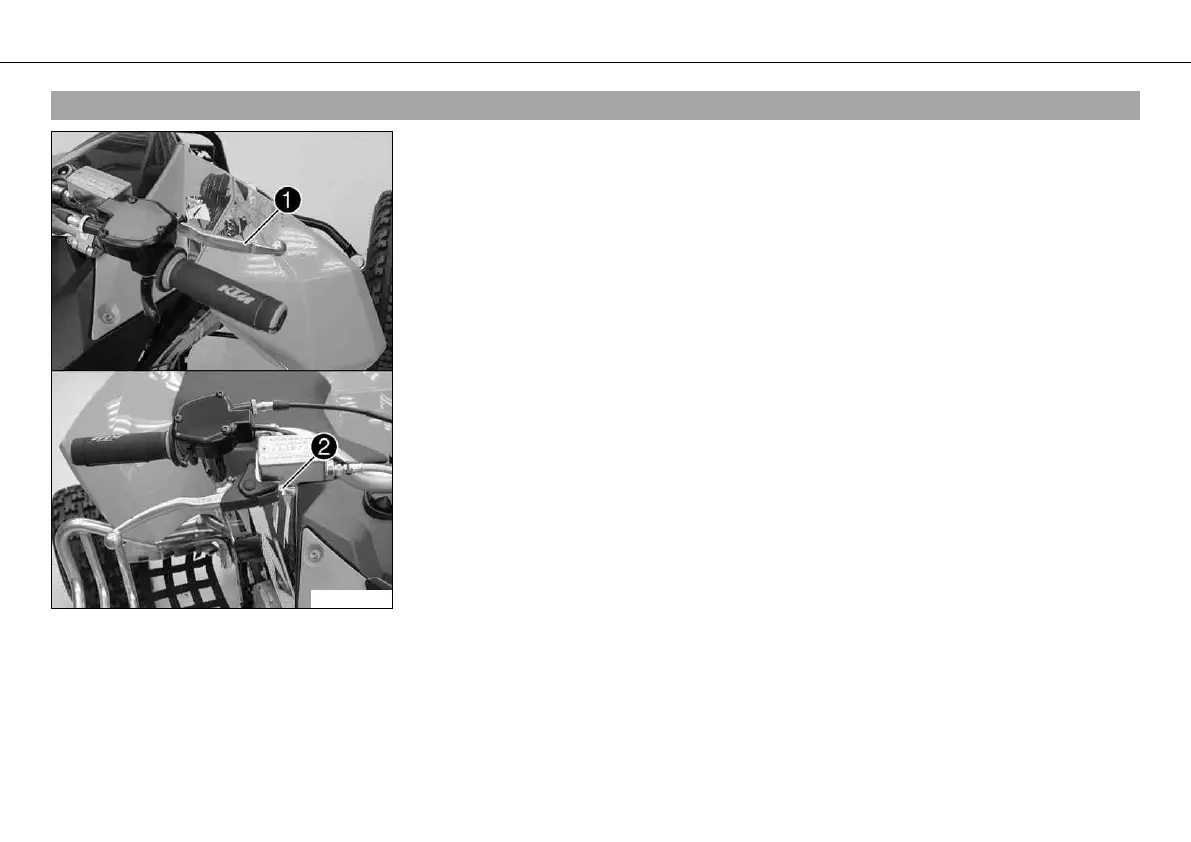

The hand brake lever 1 is located on the right side of the handlebar and operates the front
brakes.
The hand brake lever is combined with the parking brake, which blocks the front wheels to
prevent the vehicle from rolling away.
To activate the parking brake, pull the hand brake lever, push the locking pawl 2 down and
release the hand brake lever.
Possible states
• Hand brake lever in basic position – Front wheels are not locked.
• Hand brake lever pulled and locked in position – Front wheels are locked.
