MAINTENANCE WORK ON THE CHASSIS 90

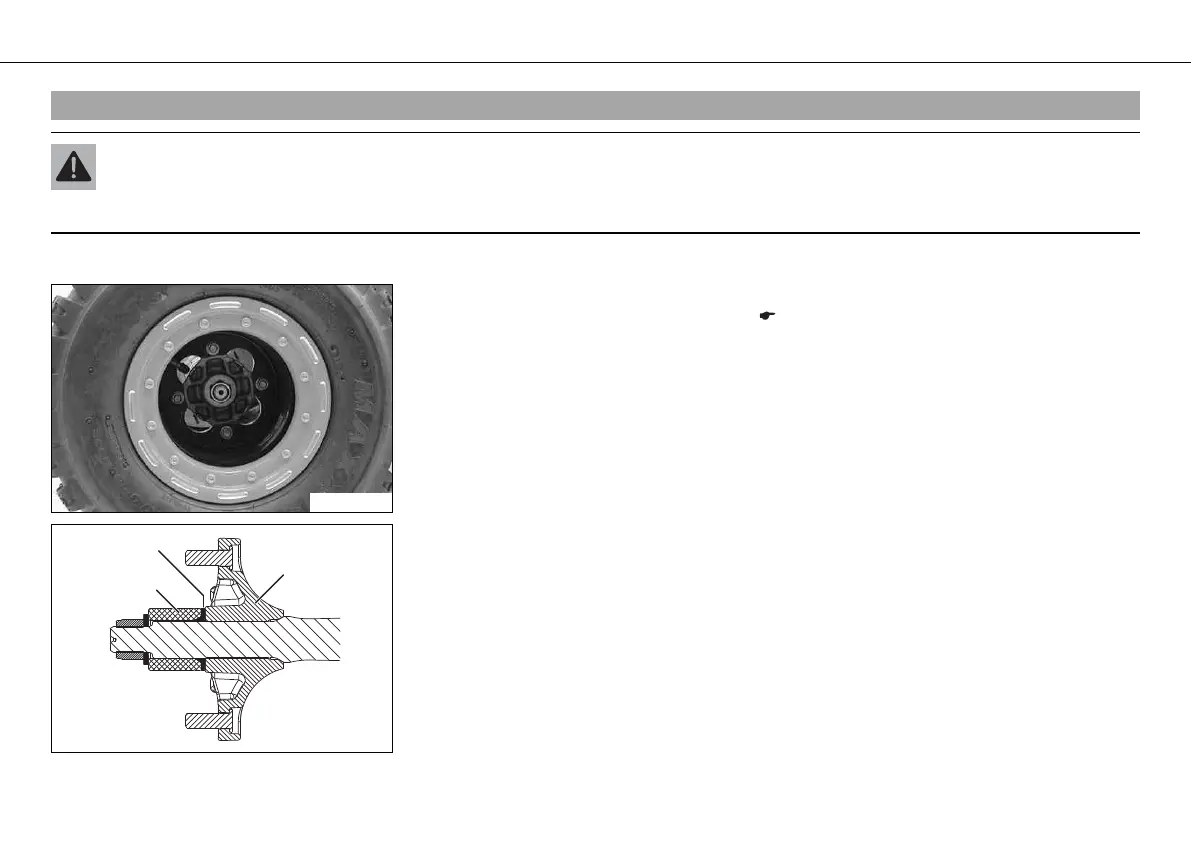

10.24Adjusting the toe width of rear axle x
Warning
Danger of accidents Modifications to the suspension settings can seriously alter the vehicle's ride behavior.
– Following modifications, ride slowly at first to get the feel of the new ride behavior.
– Engage 1st gear.
B00883-10
– Loosen nuts 4 of the wheel hubs on both sides.
– Raise the vehicle with the lifting gear. ( p. 67)
– Remove the nuts 4 on both sides and take all parts off of the rear axle.
0
0
33
0
0
11
0
0
22
100103-10
Setting a narrow toe width:
– Mount the wheel hub 1.
– Mount the conical ring 2 with the cone facing outward.
– Mount the spacer 3 with the cone facing inward.
– Mount the washer and the new self-locking nut.
