KTM 505 SX User Manual

MAINTENANCE WORK ON THE CHASSIS 74
301821-10

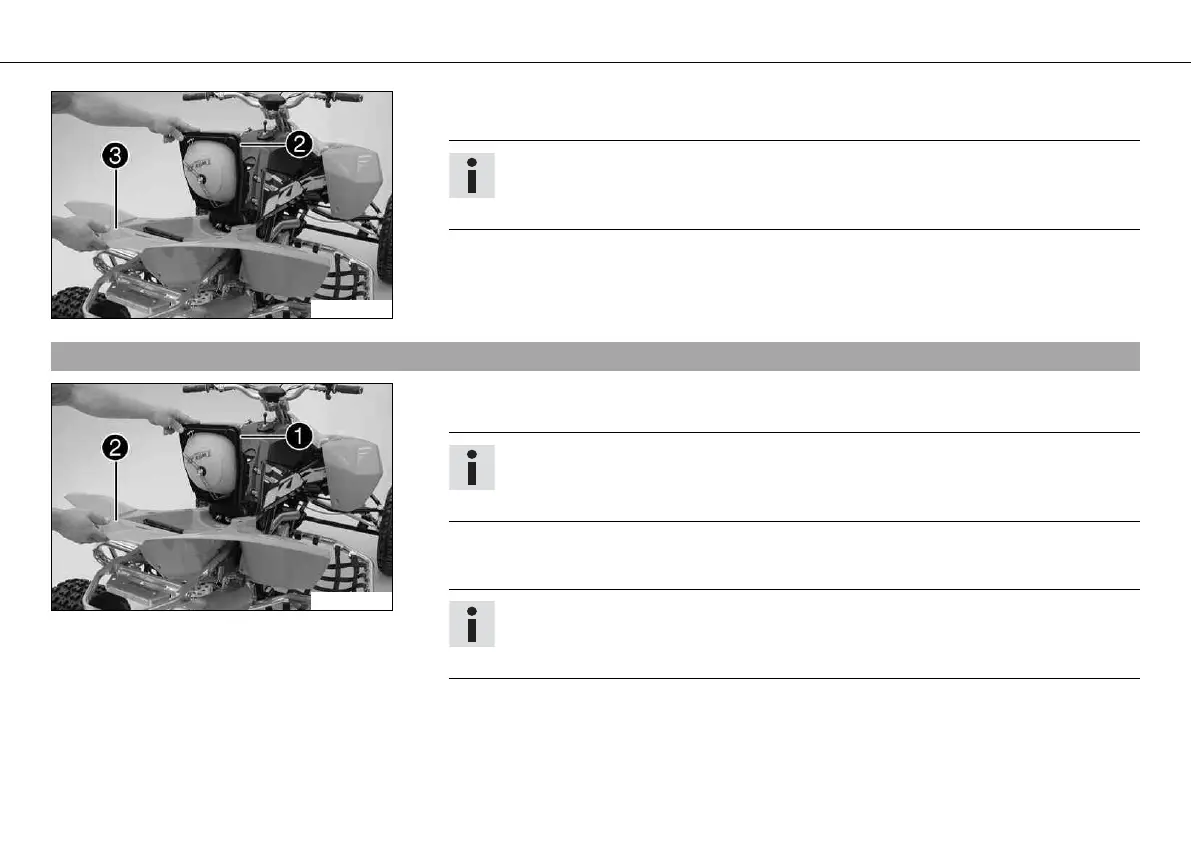

– Raise the rear of the air filter box lid 2. At the same time, use your other hand to press
on the carburetor connection boot to kink it at that location.
Info
This prevents the carburetor connection boot from disconnecting from the carbu-
retor.
– Raise fender 3 at the rear and remove it.
10.10Installing the rear fender
301821-11
– Raise the rear of the air filter box lid 1. At the same time, use your other hand to press
on the carburetor connection boot to kink it at that location.
Info
This prevents the carburetor connection boot from disconnecting from the carbu-
retor.
– Position front fender 2.
– Fix the air filter box lid in the fender.
Info
If the air filter box lid is not correctly mounted, dust and dirt can penetrate into
the engine and cause damage.
