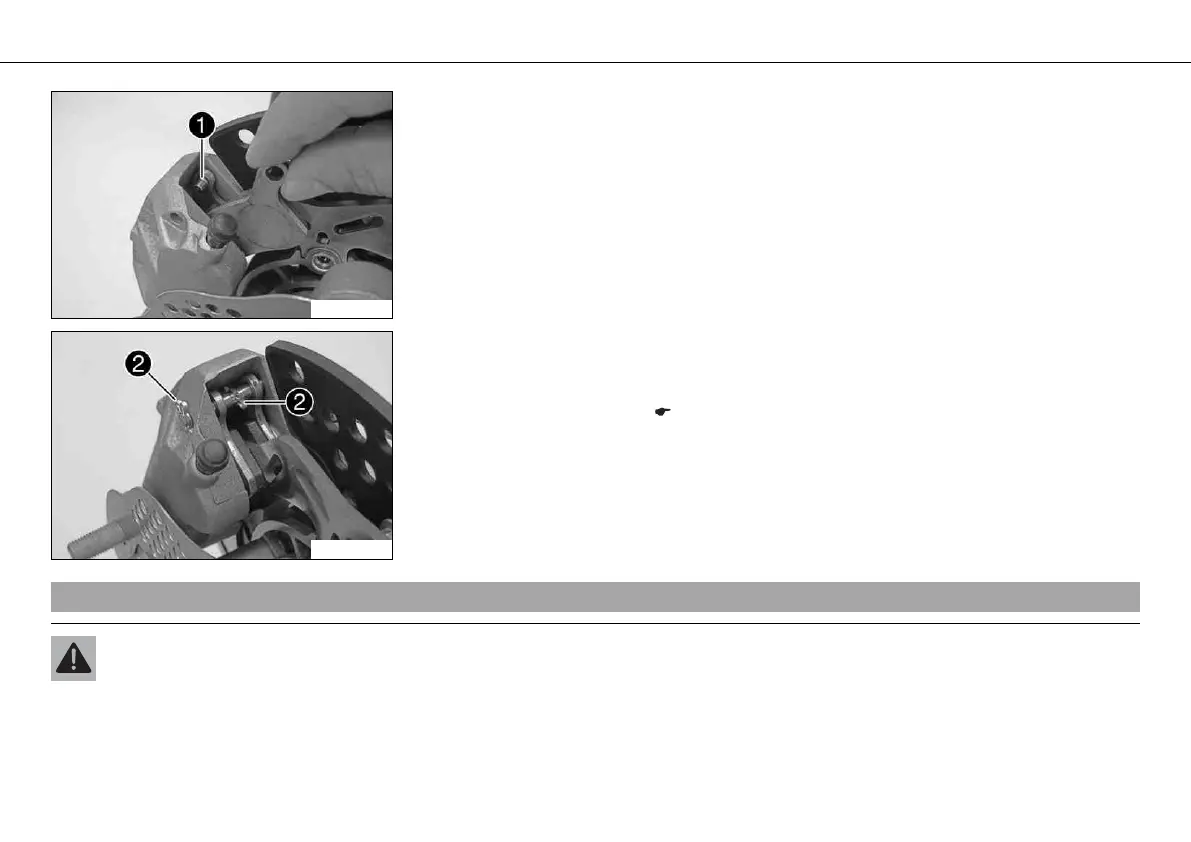

– Insert the inside brake lining into the brake caliper and fix with bolt 1.
– Insert the external brake lining into the brake caliper and slide the bolts in all the way.
100073-10
– Mount the locking split pins 2.
– Operate the hand brake lever repeatedly until the brake linings are in contact with the
brake disc and there is a pressure point.
– Install the wheel/wheels. ( p. 126)
11.9Changing the front brake linings x
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children.
– Wear suitable protective clothing and goggles.
– If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
