BRAKES 115
301803-10

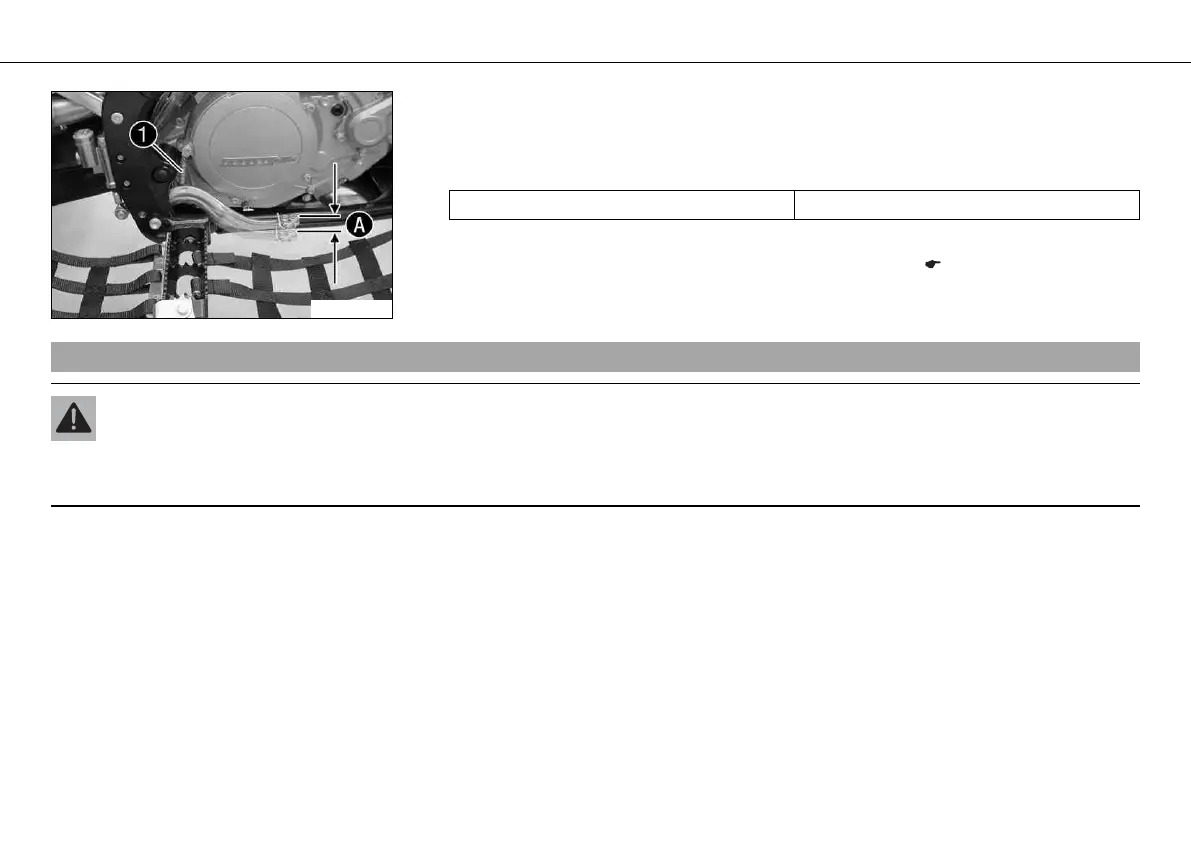

– Disconnect spring 1.
– Move the foot brake lever backwards and forwards between the end stop and the foot
brake cylinder piston bracket and check free travel A.
Guideline
Free travel at foot brake lever 3… 5 mm (0.12… 0.2 in)
» If the free travel does not meet specifications:
–
Adjust the basic position of the foot brake lever. x ( p. 115)
– Reconnect spring 1.
11.11Adjusting basic position of foot brake lever x
Warning
Danger of accidents Brake system failure.
– If there is no free travel on the foot brake lever, pressure builds up on the rear brake circuit. The rear brake can fail due to over-
heating. Adjust free travel on foot brake lever according to specifications.
