BRAKES 116
301804-10

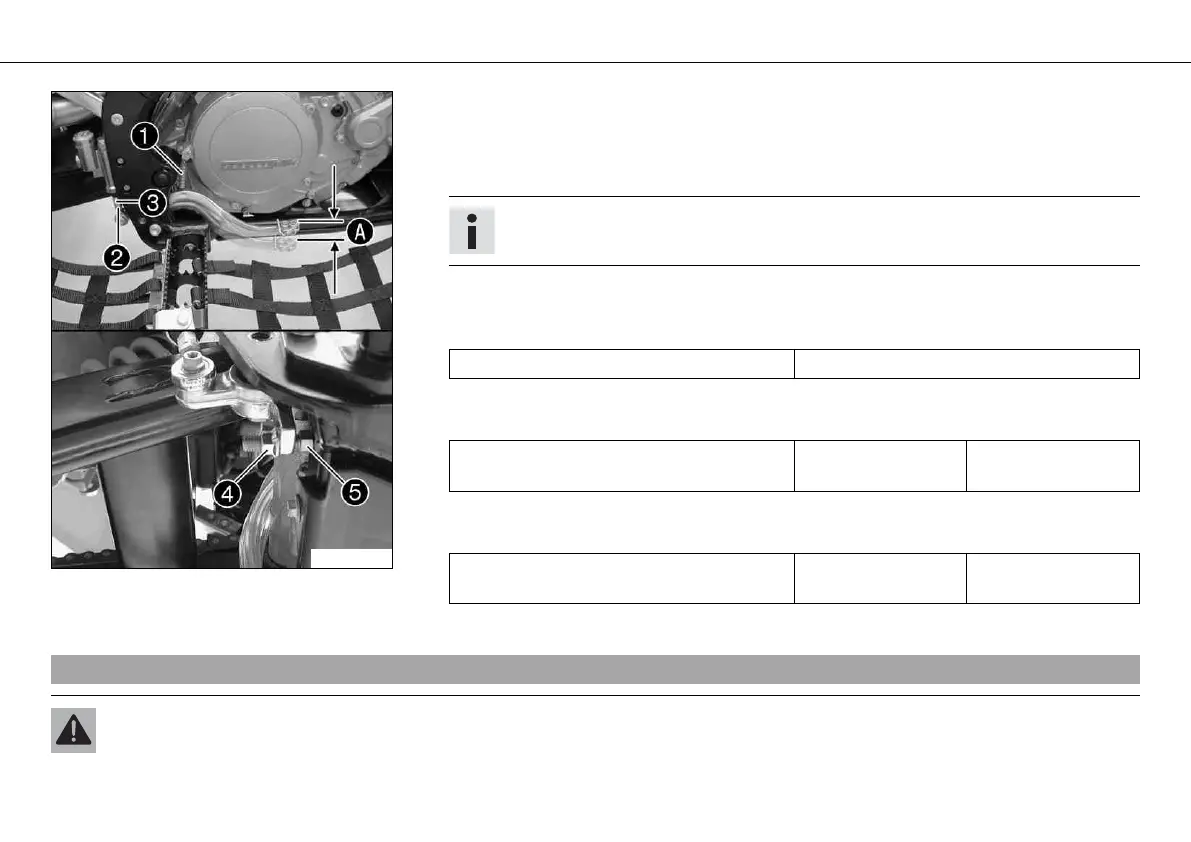

– Disconnect spring 1.
– Loosen nut 2 and turn it back with push rod 3 until you have maximum free travel.
– To adjust the basic position of the foot brake lever individually, loosen nut 4 and turn
screw 5 accordingly.
Info
The range of adjustment is limited.
– Turn push rod 3 accordingly until you have free travel A. If necessary, adjust the basic
position of the foot brake lever.
Guideline
Free travel at foot brake lever 3… 5 mm (0.12… 0.2 in)
– Hold screw 5 and tighten nut 4.
Guideline
Remaining nuts, chassis M8 30 Nm
(22.1 lbf ft)
– Hold push rod 3 and tighten nut 2.
Guideline
Remaining nuts, chassis M6 15 Nm
(11.1 lbf ft)
– Reconnect spring 1.
11.12Checking rear brake fluid level
Warning
Danger of accidents Brake system failure.
– If the brake fluid level falls below the bottom of the viewer, this indicates a leakage in the brake system or worn-out brake lin-
ings. Check the brake system and not continue riding. (Your authorized KTM workshop will be glad to help.)
