TUNING THE CHASSIS 59
9.10Front shock absorber - adjusting the cross over
Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized KTM workshop will
be glad to help.)
Info
The cross over setting is used to adjust the suspension travel of the short (soft) spring.
Greater cross over makes the spring action at the front softer and the front of the vehicle lies lower. The suspension travel and the
progressive part of the long (hard) spring is not fully utilized.
Less cross over makes the spring action at the front harder and the front of the vehicle lies higher.
– Adjust the spring preload for the front shock absorbers. ( p. 60)
– Raise the vehicle with the lifting gear. ( p. 67)
– Clean the shock absorber thoroughly.

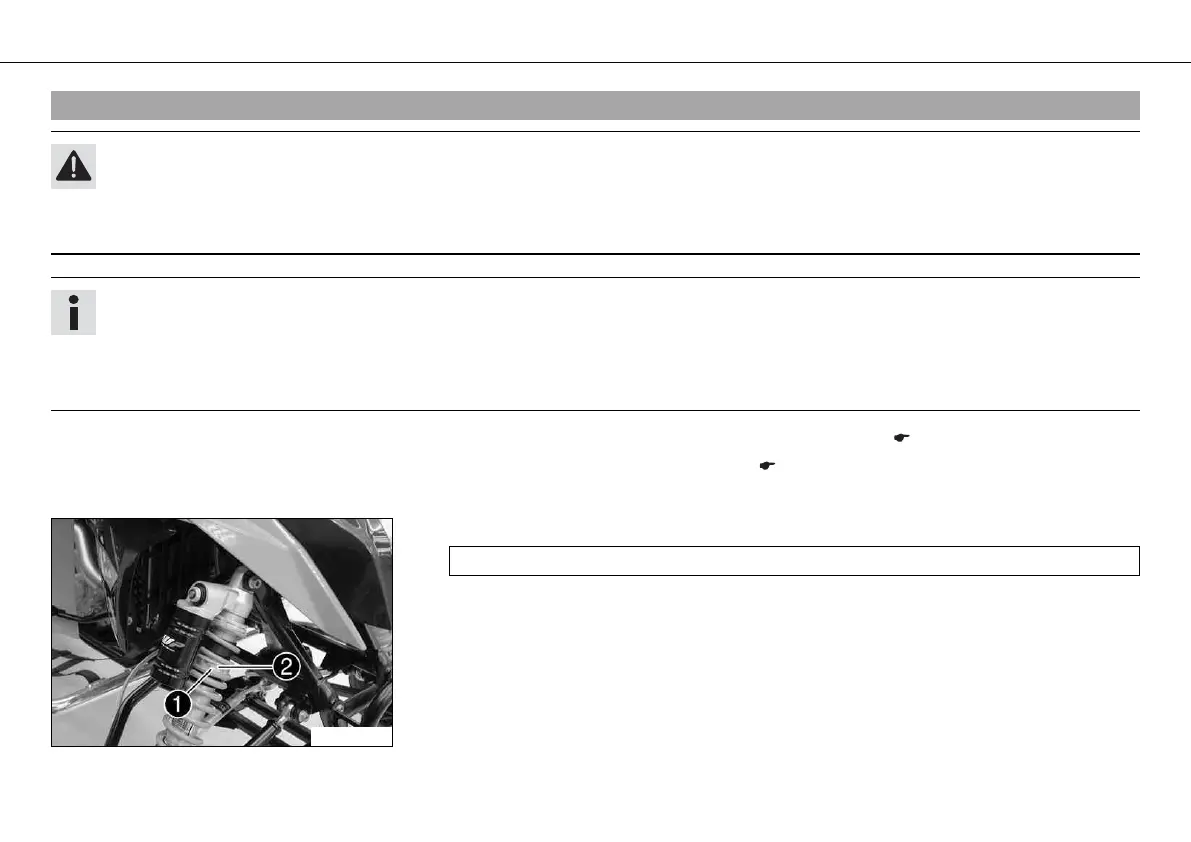

301789-10
– Loosen adjusting rings 1 and 2.
Hook wrench (83019001000)
