10 GV 640 Service Manual
For internal use only
3.2 Water connection
If the appliance is installed onto the drain with the standard length of hose, the max. permissible height
above the floor is 90 cm. If the discharge hose is extended, a max. height of 80 cm is not to be exceeded.
3.3 Electric connection
Only connect the appliance to a wall socket with earthing
in accordance with regulations. Please observe the in-
formation on the identification plate (see the technical
data).
The mains supply line is fitted with a low-heat system
connection and is supplied with the appliance. The cable
must be connected to the back of the dishwasher when
it is put into operation.
Two strong catches on the sides prevent the plug from
accidently becoming loose or coming off the appliance.
Extension cables
Customer service has extension cables of 3 metres in
length on offer.
Spare part No.: 436993

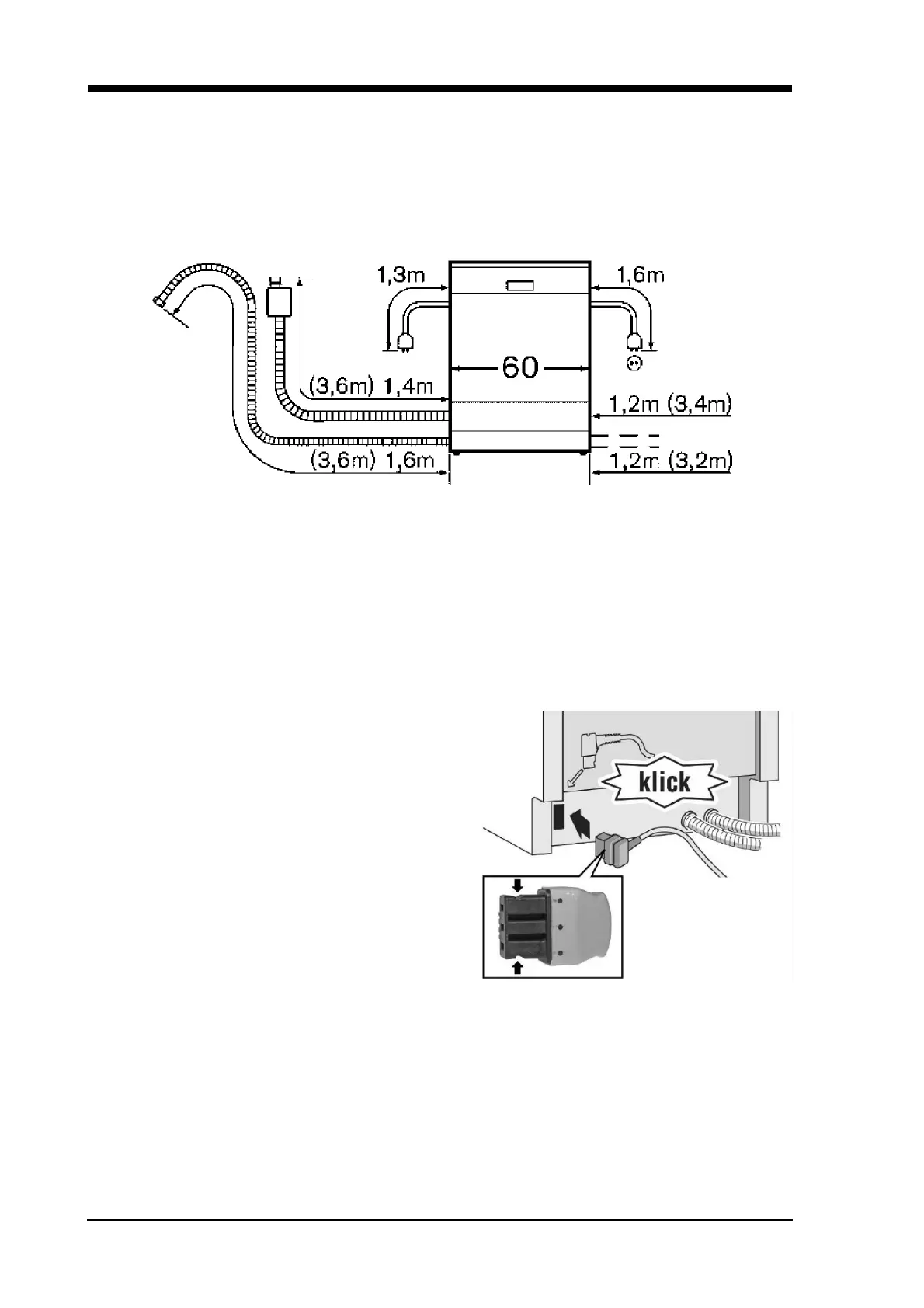

Connection dimensions
for all dishwashers 60 cm
( ) dimensions with extensions
