48 GV 640 Service Manual
For internal use only

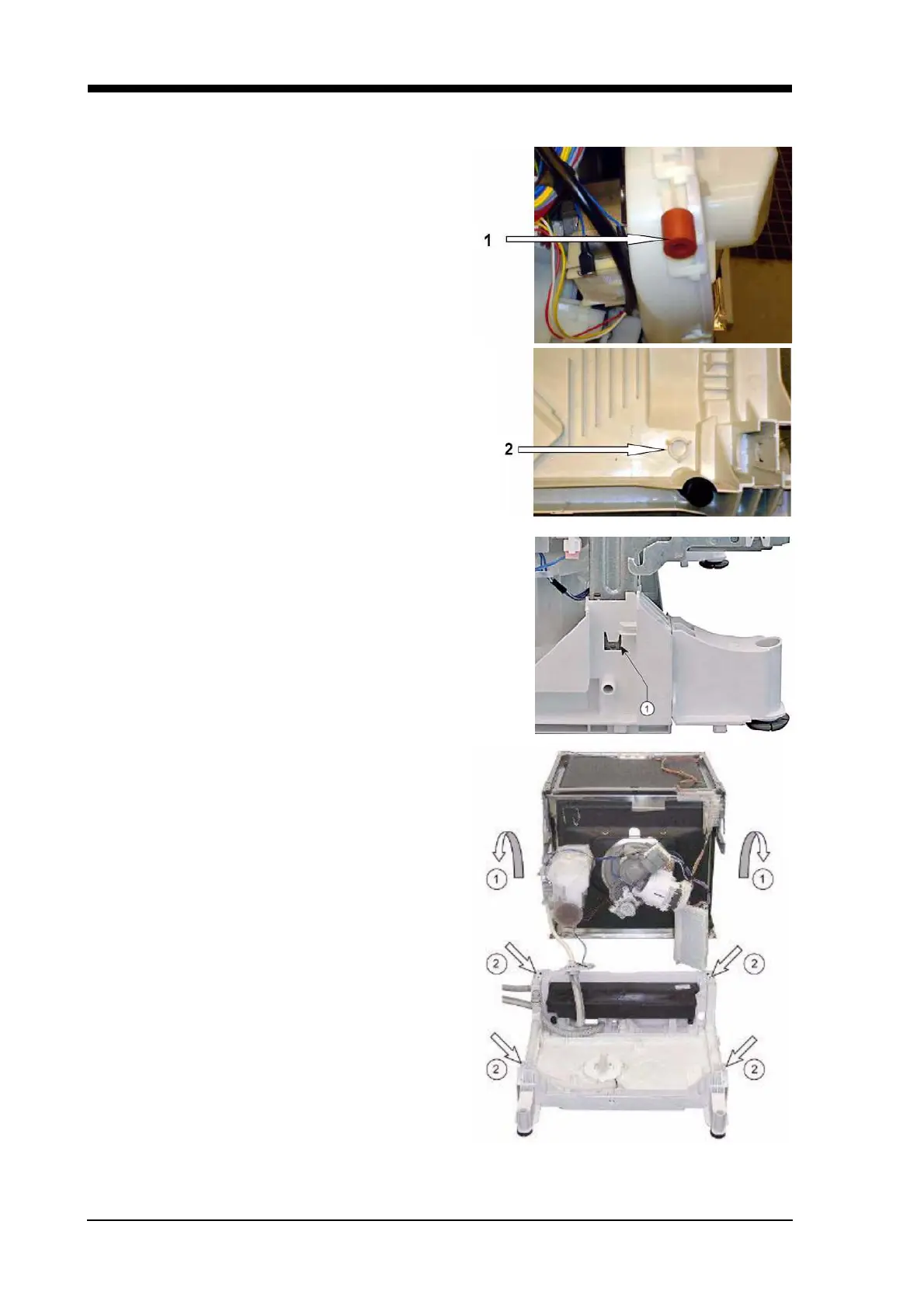

6.6.1 Mounting the fan motor
1. Lower the housing pin with the rubber ring
into the base pan.
2. Fasten it in the opening.
Secure the container catches.
1. Bend the catches of the hinge plate outwards
with a screwdriver.
6.6.2 Positioning the rinsing cavity
1. Carefully fold the rinsing cavity down towards
the front.
2. Insert it into the guides.
