46 GV 640 Service Manual
For internal use only

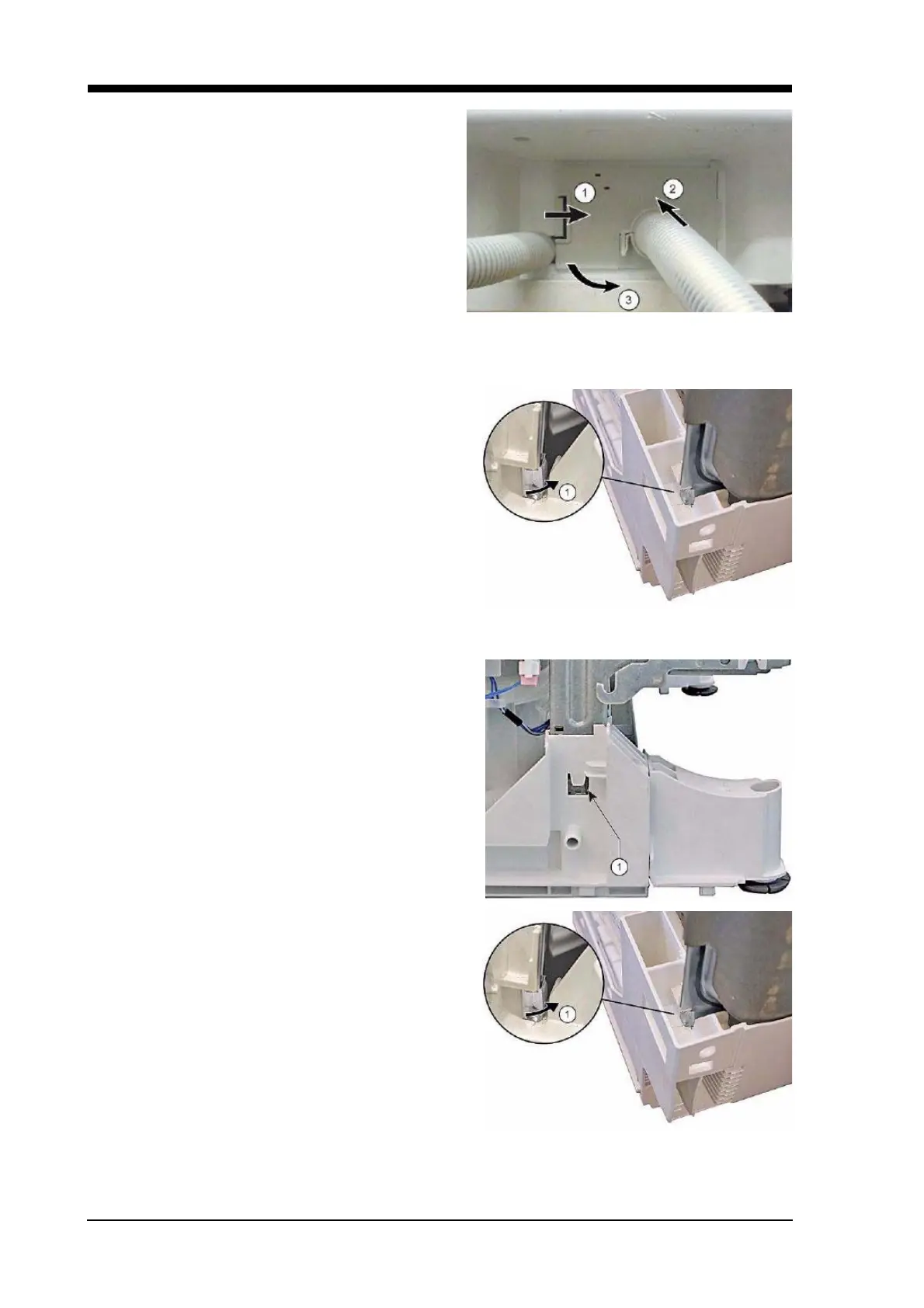

6.5.5 Opening the duct for the supply
hose
1. Release the catch on the panel.
2. Fold out the panel and
3. press the hose guide at a slight angle into
the base pan. There is more space when the
container is removed.
4. Remove the power module.
See the section on replacing the power module.
6.5.6 Releasing the container catch
The rinsing container is held in the guides of
the basic support and is engaged into the
guides at the back and the front.
The rinsing container is fastened with metal
clamps on the left and the right at the back.
These are bent around a plastic clamp in the
base pan.
1. Bend the metal clamps straight with a
screwdriver (1).
2. Use a screwdriver to take the hinge plates
out of the catch upwards at the side of the
front. To do so bend the catch of the hinge
plates to the inside (1).
3. Release the container catch.
