GV 640 Service Manual 73
For internal use only
7.8.3 Checking the emotion light
This can only be carried out if the side panel on the right
has been removed.
Disconnect the plug-in connection and measure the
voltage.
Technical data: supply voltage of 12V
7.8.4 Replacing an emotion light
This is only possible when
- the worktop (optional) has been removed;
- the side panel on the right has been removed.
Dismounting

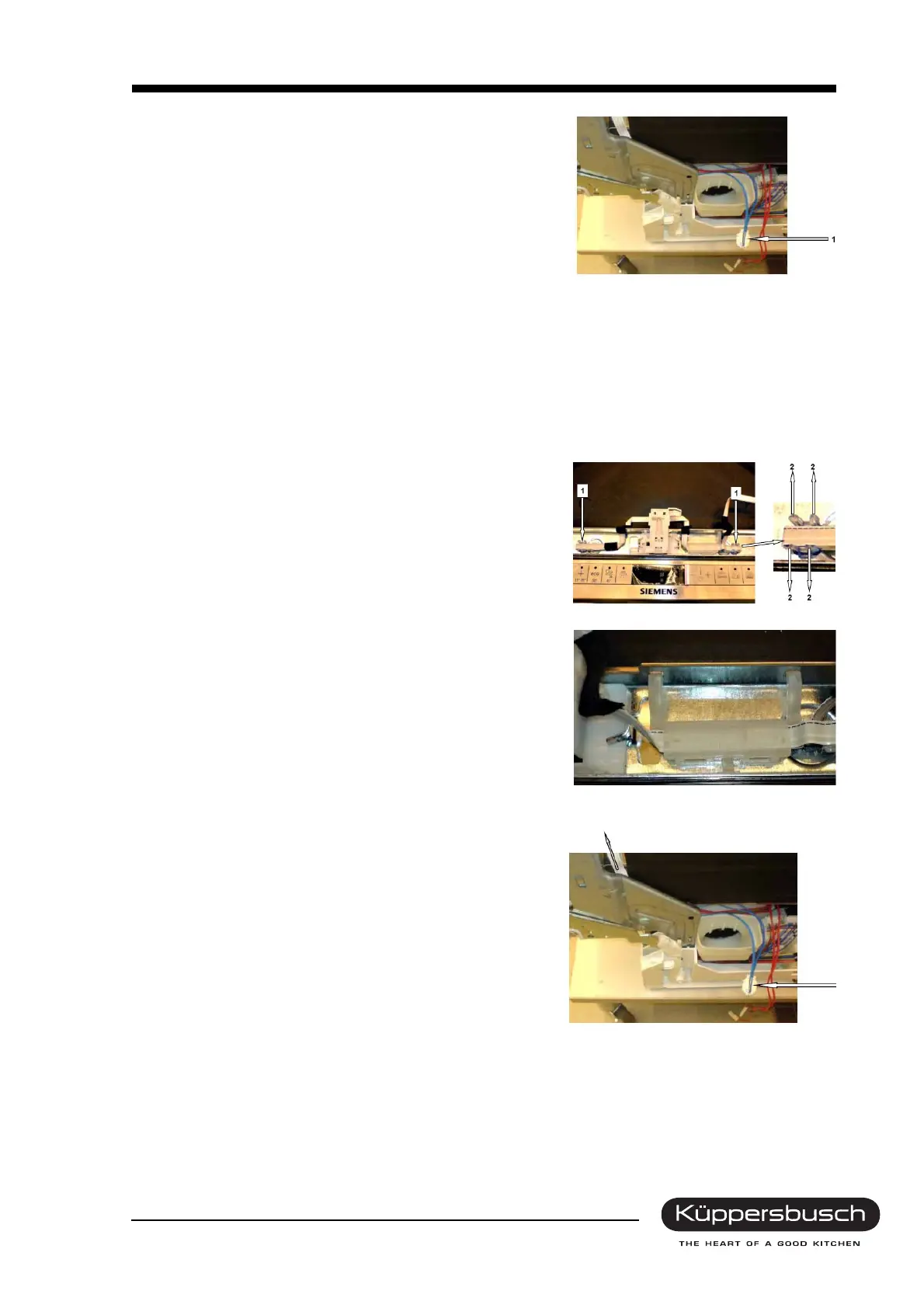

1. Remove the two LEDs and the holder from the
rinsing cavity.
2. Remove the Hall sensor from the rinsing cavity.
3. Disconnect the plug connection.
4. Carefully uncover the ribbon cable.
