5.8.4 Bottom basket
The bottom basket is rolled out of the dishwasher on rollers. The bottom spray arm is rigid and rinses
the dishes in the bottom basket (see spray system).

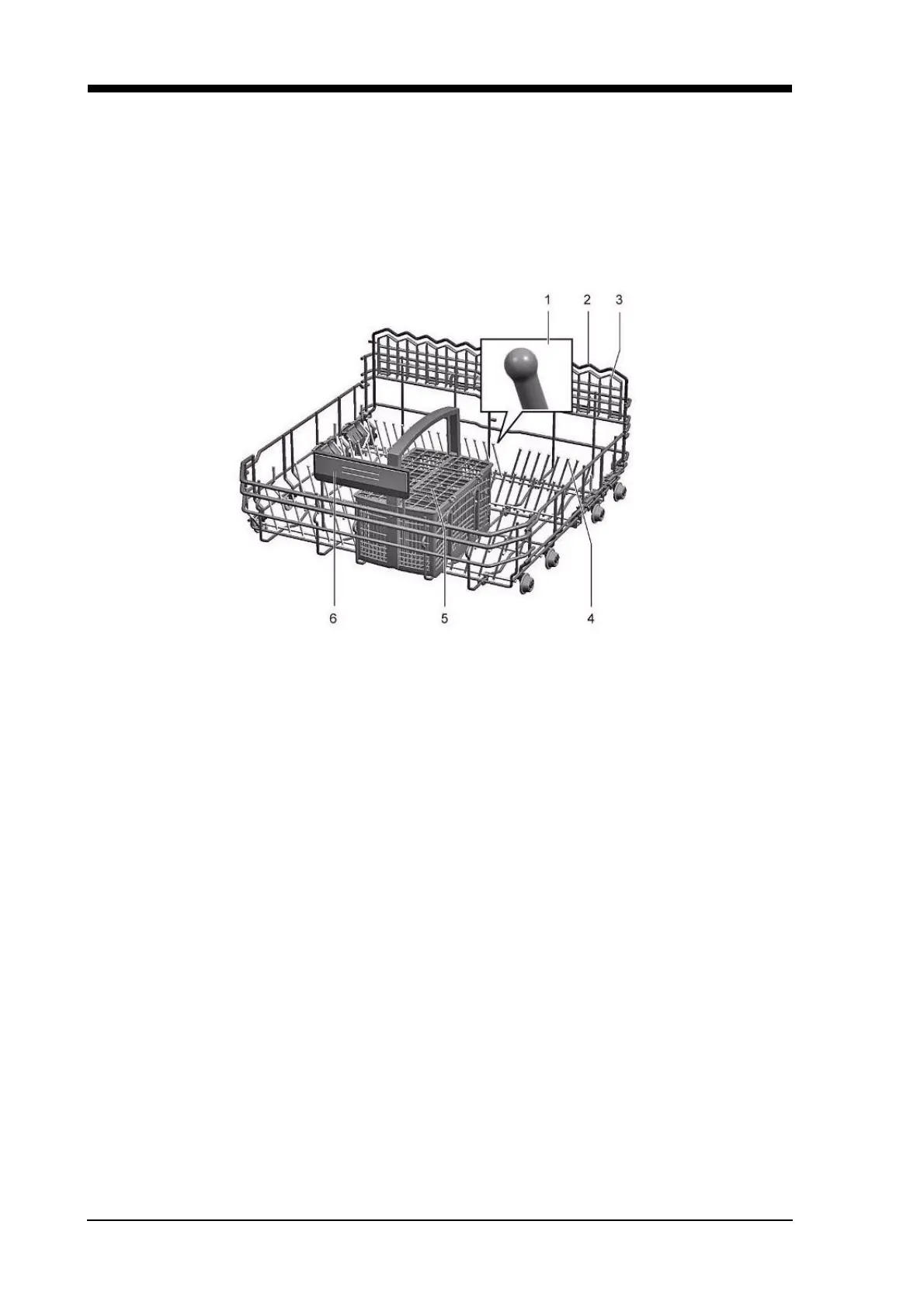

1 Rounded, thickened spike tips 3 Divided, foldable rack
2 Holder for long-stemmed glasses 4 Fold-down spikes
5 Cutlery basket
Rounded, thickened spike tips (ball ends)
Ball ends are small balls on the tips of the fold-down spikes. When glasses or plates make contact with
standard spikes stripes may occur in the area of contact between the dishes and the spikes. The ball
ends ensure a minimum clearance. This means that rinsing and drying will leave no stripes on the dishes.
Rack
The rack is an additional foldable holder in the baskets. An extra level results as the rack is attached to
the top of the basket. Mocca cups or small items can be placed there.
Fold-down spikes
Fold-down spikes are spikes that can be folded down for more flexible loading of dishes. They can be
folded down in several steps or in a single step.
Rackmatic
The height-adjusting device for the top basket is called rackmatic. Height may be adjusted in several
stages (3 stages). The water intake pipe has connections for a 3-stage rackmatic.
The top basket can also be pushed in at a slope to the left or the right here. The metal holders of the
rackmatic are automatically pressed into the top basket. Bending the holders may result in damage to
the surface of the top basket.
Holder for long-stemmed glasses
A hinged clamp on the back of the bottom basket can be folded down to the front so that long-stemmed
glasses can also be loaded in a second row.
