GV 640 Service Manual 9
For internal use only
3. Installation and connection
3.1 Assembly

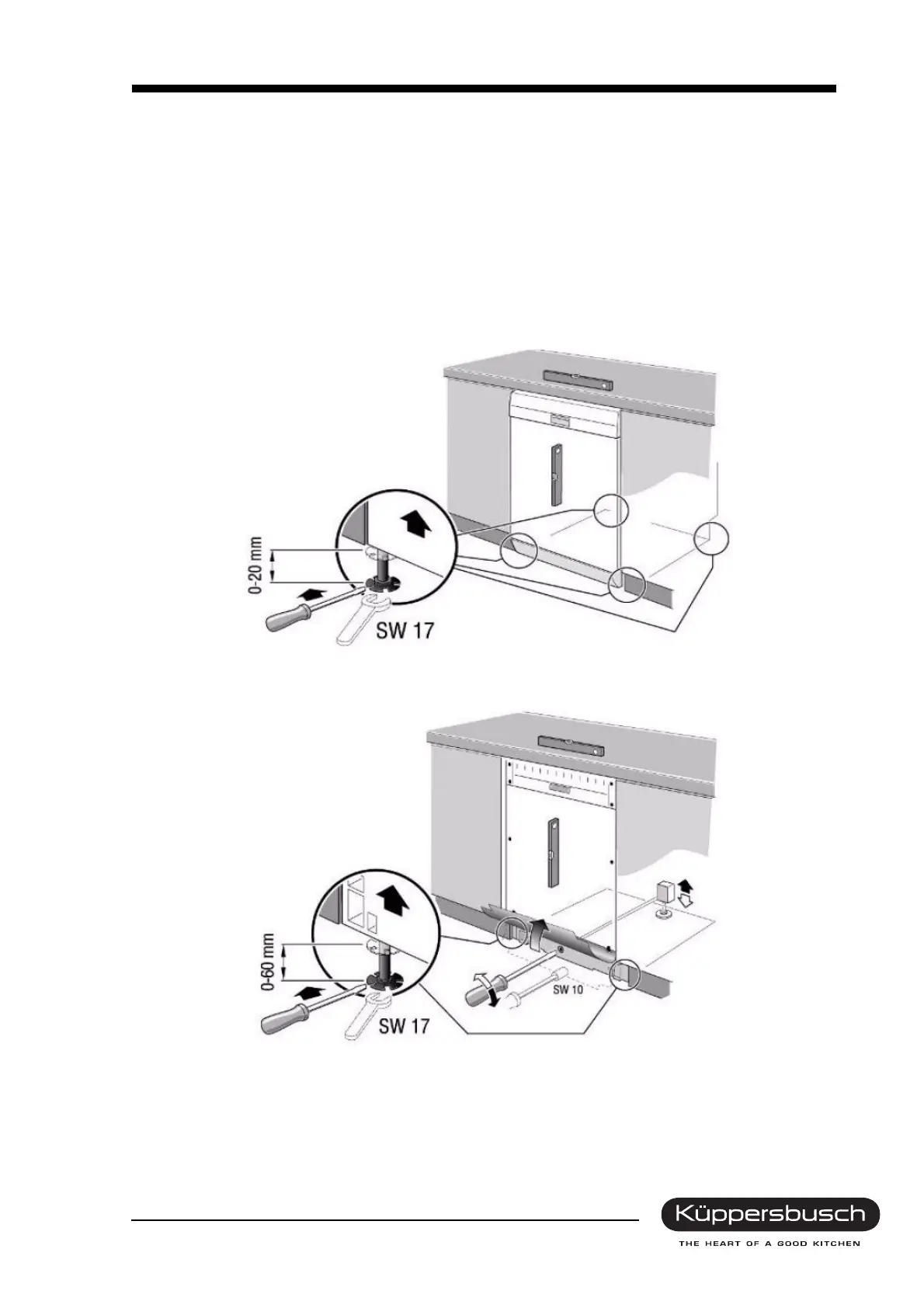

In order to ensure that the lock functions perfectly and to prevent any leakages in the area of the door,
the appliance must be perfectly aligned with the adjustable feet. The middle adjustable foot of integrated
appliances, located at the back of the dishwasher, can be adjusted from the front. Screw the adjustable
feet to lift the appliance until the outer casing is at the same level as the worktop.
The appliances have 3 or 4 feet, depending on the design.
The adjustable heights vary.
Free-standing appliance
Integrated/ fully integrated
