5.4 Door section
The door section has several sub-sections.

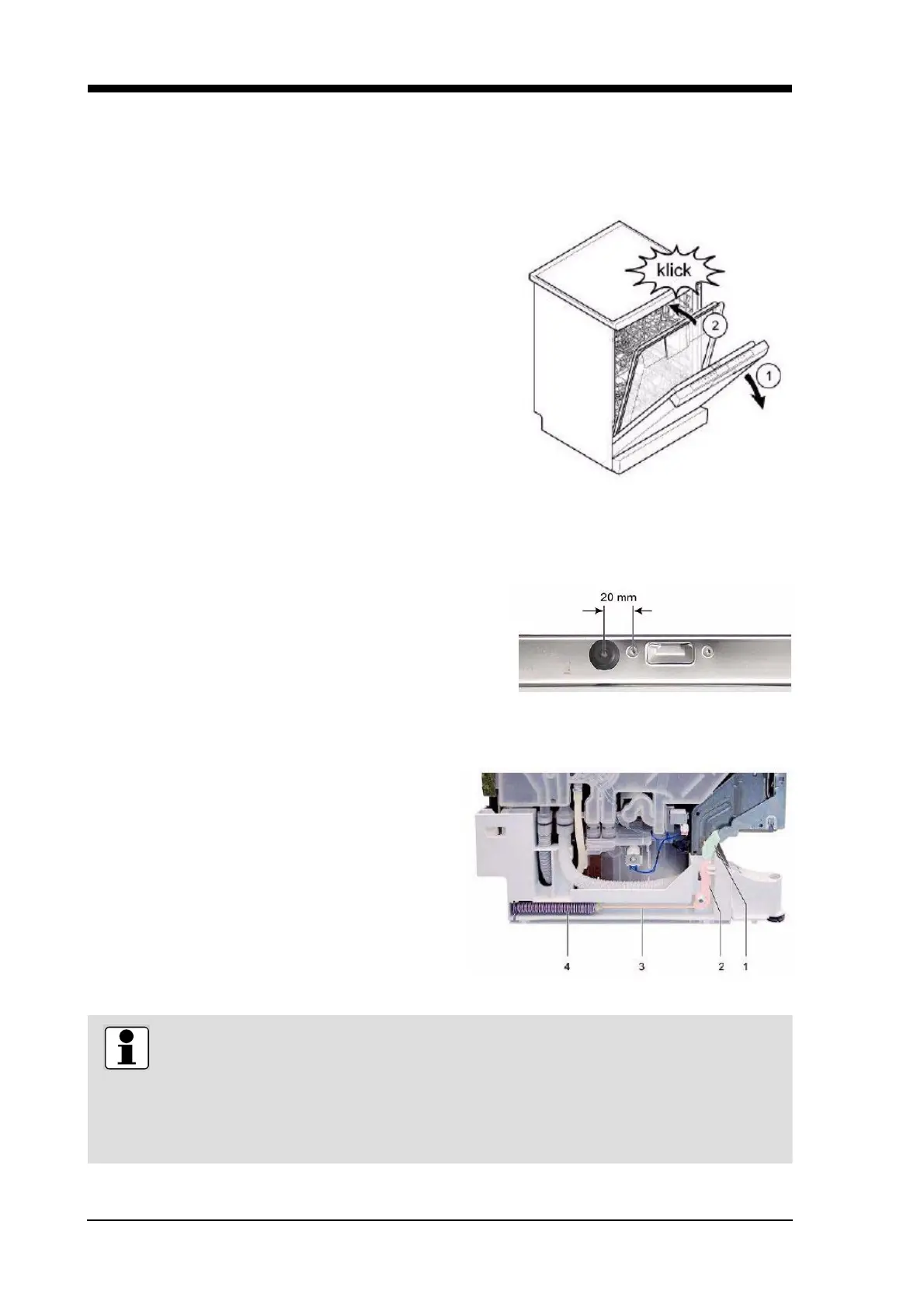

5.4.1 Transparent door
1. Open appliance door.
2. Place the transparent door in the appliance and
engage it in the door lock.
Permanent magnet
A permanent magnet will need to be placed in the inner
door when the transparent door is used. The magnet
signals “doors closed” to the door contact switch. The
door contact switch reacts to the direction of the mag-
netic field. If necessary, the permanent magnet must be
turned so that the appliance can recognise the magnetic
field properly.
The system will need to be unlocked again if the spring-
loaded latch is locked manually. To do so close the door
firmly.
• Fasten the suction cup with magnets onto the top of
the inner door.
5.4.2 Door springs
The door springs are located on the right side and on the left side below the base pan.
The traction force is transmitted to the door hinge
with a load cable drawn over a reversing lever. The
traction force of the door springs cannot be adjust-
ed. The built-in springs and the cable system have
been coordinated with the permissible door
weights.
1 Tensioning cable holder
2 Reversing lever
3 Load cable
4 Door spring
Please note!
The door springs are marked with a coloured dot on the back of the appliance.
Only pairs of door springs may be replaced!
Springs used must always match!
The same colour codes must be used on the right and the left!
